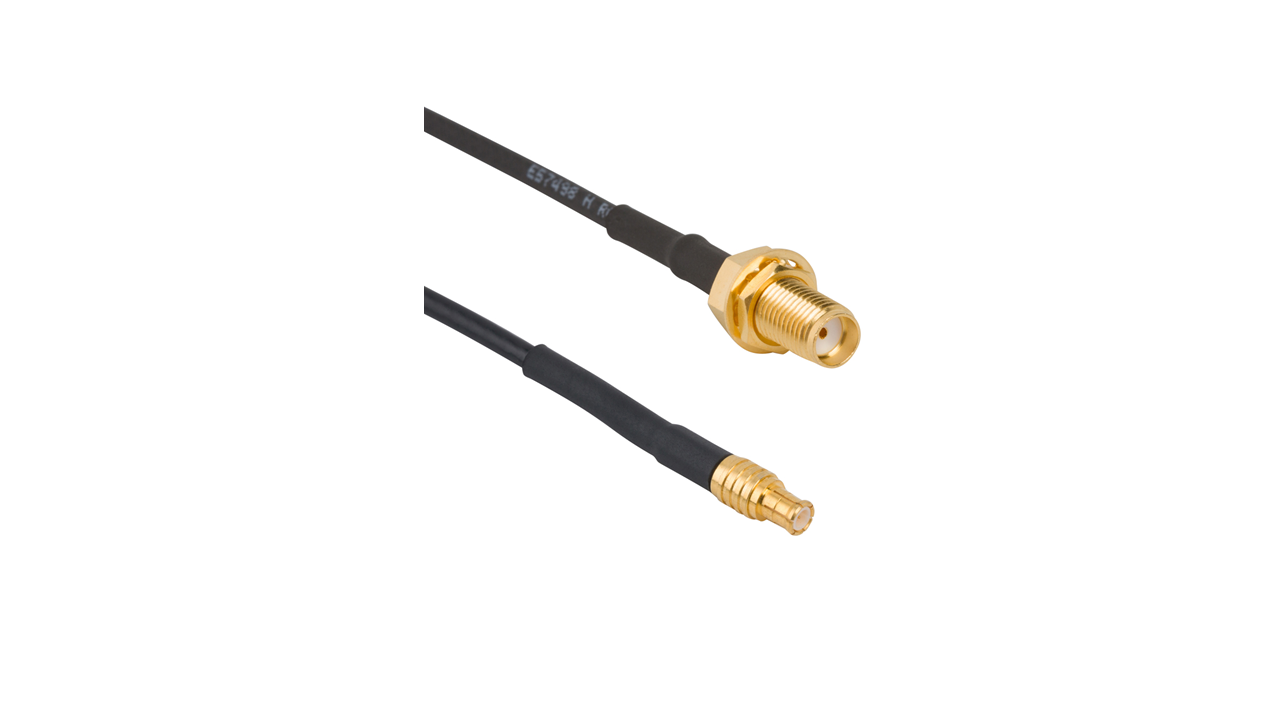

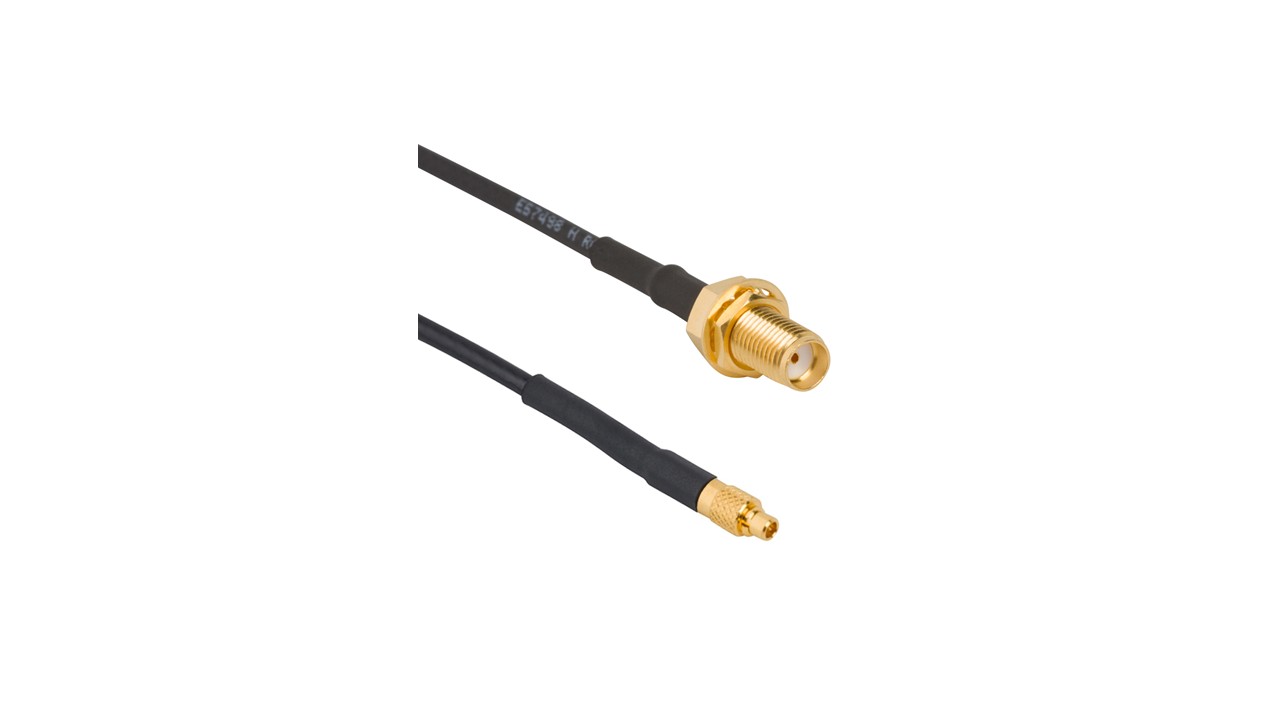

安费诺射频公司欣然宣布扩展其线缆组件产品线，新增配备MCX直插式和直角插头配置的组件，这些组件采用坚固耐用的IP67级隔板式SMA、TNC、RP-TNC及N型直插式插座。该系列组件基于柔性RG-316电缆设计，在高频射频应用中可提供高达6 GHz的卓越电性能，兼具优异的耐热性、耐久性和低信号损耗特性。 这些跨系列组件允许电缆从带螺纹接口的面板外部连接，专为配备板载MCX连接器的无线通信模块设计。
通过将电路板常用的MCX接口与更坚固的连接器组合，可为便携设备、GPS、Wi-Fi以及农业施工、土方工程、采矿等重型工业设备提供多样化的应用方案。面板外部的连接器均采用密封设计，可防止水及其他液体暂时侵入，从而消除外部环境因素导致系统故障的风险。
该系列组件加入日益丰富的预配置线缆产品线，专为支持外部连接天线的无线模块设计，采用更坚固的解决方案确保系统不受天气影响或人为破坏。标准长度3至48英寸的组件可通过分销合作伙伴购买。
查看：RG-316电缆数据表中的MCX线缆组件
