利用 IP67 SMA 隔板电缆组件安全地向外扩展

2022/2/8
Share

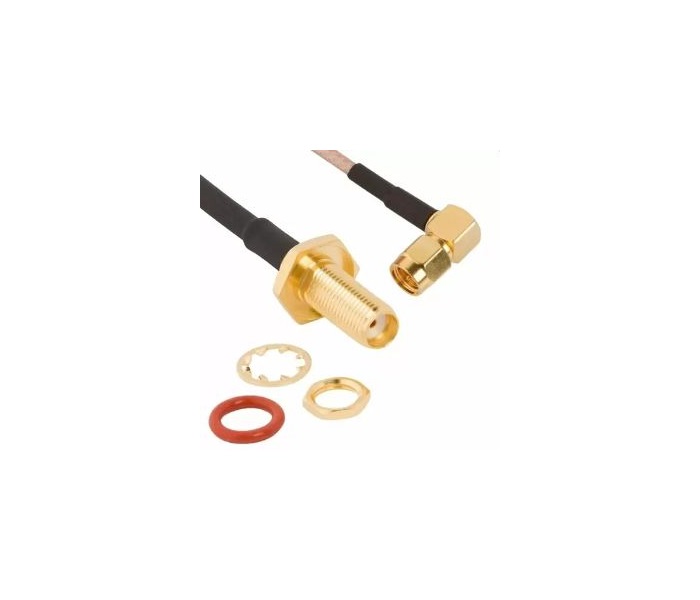

Amphenol RF 很高兴能扩展我们的电缆组件产品组合，提供更多的预配置 SMA 选件，以支持需要更加坚固耐用的防水解决方案的设计。这些新的 SMA 组件一端使用隔板插孔，在接合和未接合状态下均通过 IP67 规范的全面测试。它们采用柔性 RG-316 同轴电缆设计，非常适合工业和物联网等垂直领域的低损耗应用。

这些 50-Ω IP67 SMA 电缆组件具有可靠的电气性能，频率高达 3 GHz。它们采用轻巧耐用的连接器，适用于各种室外和室内应用。SMA 连接器采用镀金黄铜本体和镀金铍铜触点制造，提供直插或直角插头至插孔配置。SMA 接口采用螺纹耦合机制，可确保安全配接，从而实现内置抗振性。

新型电缆组件是IP67 级密封产品系列的一部分，可提供额外的保护，防止外部天气因素的影响。这种固定长度的组件为恶劣环境提供了一种耐用的解决方案，是更加坚固耐用的连接器和坚固耐用的电缆类型的结合。此外，RG-316 电缆直径小，使这些组件适用于无线通信、广播和军事设备。

更多信息：IP67 SMA 电缆组件数据表
