HN 型适配器
耐候性 HN 型适配器提供 50 Ω 过渡和坚固耐用的盲插功能，适用于户外和高压射频系统。
概述
.jpg)

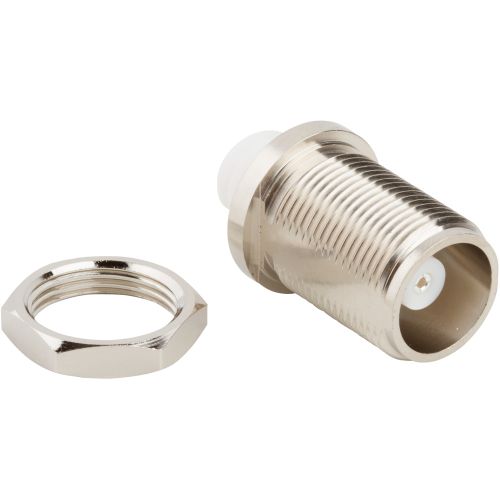

Amphenol RF 的 HN-Type 适配器包括全系列 HN-Type 内筒和转换为 N-Type 等接口的系列间型号，提供大型射频连接器之间的无缝集成。这些适配器采用 3/4-20 螺纹连接和俘获式触点设计，可确保在恶劣环境下的安全配接和可靠性能。
这些适配器基于久经考验的 HN-Type 平台（该平台以全天候和高电压能力而闻名），支持高达 4 GHz 的 50 Ω 系统以及仪器仪表、航空电子设备和室外射频基础设施所需的理想电压水平。
功能和优点
- 坚固耐用的全天候结构- 拴式触点可在极端条件下保持性能；¾"-20 螺纹接头提供安全连接。
- 系列内和系列间选项- 包括 HN 型桶状适配器和 N 型转换器，方便各种布线方案。
- 高电压和射频功能- 支持高达 5 kV 的电压和高达 4 GHz 的频率，是射频/电源组合应用的理想选择。
- 性别转换器和穿板式配置 - 适配器包括直式、直角式和面板安装式选项，安装灵活。
- 连接器保护器实用程序 - 直插式适配器可在重复配接过程中保护昂贵的电缆和设备端口。
应用
- 高压射频系统 - 机载雷达、辐射探测和高压信号传输的理想选择。
- 户外和恶劣环境安装- 适合天线、远程传感器和电信基站的全天候适配器。
- 实验室与仪器仪表- 内联超控和性别转换器可方便涉及 HN 型和 N 型接口的测试设置。
- 航空和军事平台- 用于航空电子设备、测试设备和地面支持设备的坚固耐用、抗震连接器。
