QMA 适配器
适用于高频应用的安全快速连接解决方案
概述
.jpg)

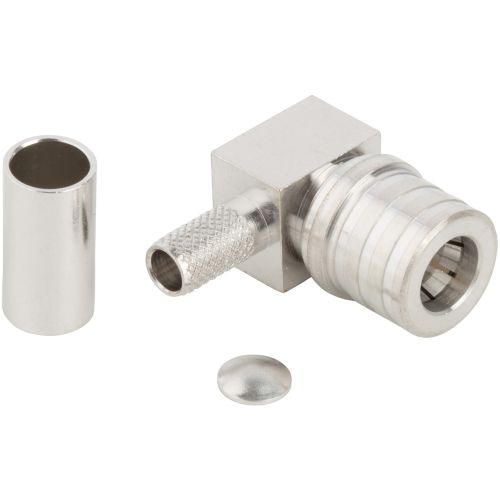

Amphenol RF 的 QMA 适配器为螺纹 SMA 连接器提供了可靠的卡入式替代品，可实现快速简便的安装，而不会影响性能。这些经过精密设计的适配器非常适合在狭小或动态环境中需要快速配接和一致电气性能的应用。
QMA 接口提供高性能射频连接，其安全的锁定机制简化了安装和维护。这些适配器通常用于蜂窝基础设施、测试和测量设备以及其他对时间、空间和信号完整性要求极高的应用。QMA 适配器具有 360 度旋转和坚固的机械稳定性，非常适合密集的系统和频繁的连接/断开周期。
特点和优点
- 卡入式耦合机制，无需工具即可快速安装
- 高达 6 GHz 的高频性能
- 360° 旋转可灵活布线
- 提供串内和串间配置
- 设计坚固，锁定安全，适用于易振动环境
应用
- 无线基础设施- 在基站和中继器中用于快速连接射频路径。
- 测试和测量 - 非常适合需要经常重新配置的实验室设置。
- 军事和航空航天- 紧凑、坚固的设计支持高性能移动系统。
- 工业设备- 适用于需要耐用射频连接的恶劣环境。
