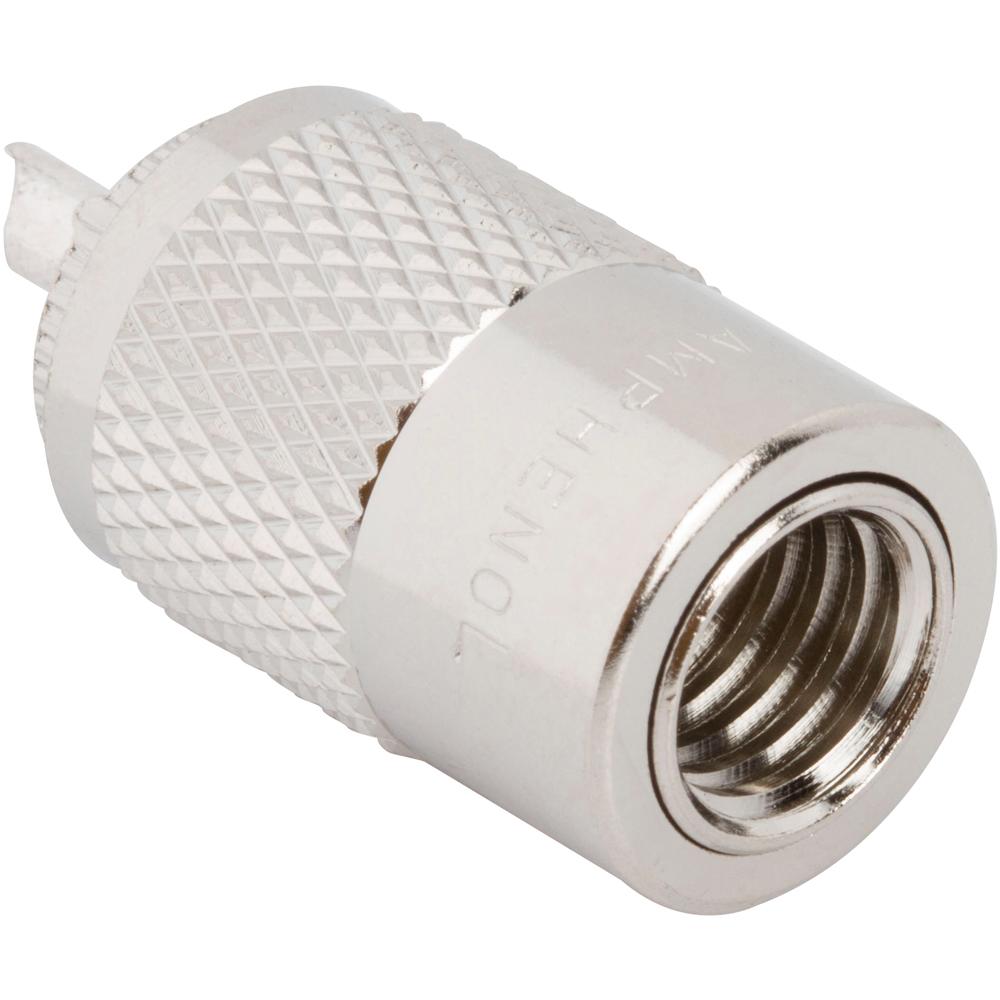

超高频适配器
坚固耐用的低频适配器，用于耐用的多功能射频连接。
概述
Amphenol RF 的 UHF 适配器设计用于在需要坚固性能的各种系统中实现安全的低频射频连接。这些适配器通常用于连接 UHF 连接器，即使在苛刻的条件下也能实现可靠的信号传输。这些适配器坚固耐用，用途广泛，是性能和耐用性要求极高的应用的理想选择。
Amphenol RF 的 UHF 适配器有直式和直角式两种配置，采用螺纹耦合机制，并提供标准的插头对插头和插头对插头变体。这些元件支持多种频率，可满足在高频/甚高频范围内工作的射频系统的要求。所有设计均采用优质材料精密制造，以确保长期性能。
特点和优点
- 螺纹耦合机制，具有抗振性
- 多种配置，包括插头/插孔和直角/直角选项
- 与标准 UHF 连接器兼容
- 镀镍机身提高了耐用性和耐腐蚀性
- 设计便于安装和维护
主要技术细节
- 提供系列内（UHF 至 UHF）和系列间配置
- 镀镍的坚固黄铜主体
- 专为需要较强机械稳定性的系统而设计
- 与现有射频硬件广泛兼容
应用
- 陆地移动无线电系统 - 为公共安全和通信网络提供可靠的射频互连。
- 天线安装- 为固定和移动天线系统提供坚固耐用的低频连接。
- 业余无线电（火腿无线电）- 在业余爱好者和操作员喜爱的高耐久性环境中实现可靠的连接。
- 军事和战术通信- 支持野外部署通信设备中安全、坚固的射频链路。
