AUTOMATE Mini-FAKRA Type C Connectors
Sealed Mini-FAKRA connectors engineered for durability in industrial applications
Overview
.jpg)

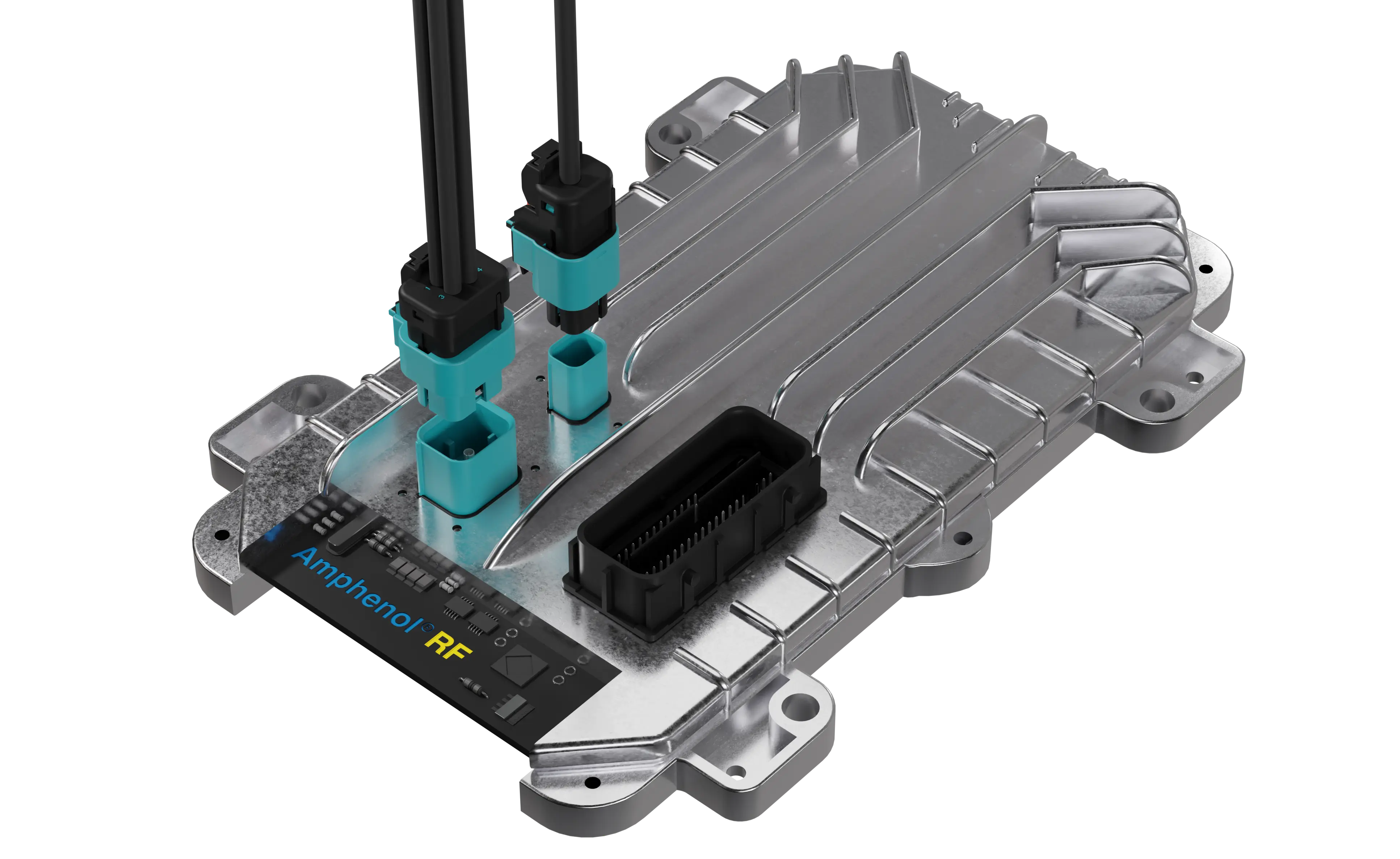

AUTOMATE® Type C connectors offer a space-conscious, high-performance solution designed for the demanding requirements of industrial applications.
This ruggedized RF interface supports high-frequency signal transmission and is ideal for infrastructure requiring robust mechanical retention under vibration, error-proof assembly in high volume manufacturing and scalable port density for multi-channel RF systems. Type C connectors are environmentally sealed for outdoor and wash-down conditions for an added layer of protection in conditions that are not optimal. Type C is available in straight PCB and cable-mount configurations. Mechanical and visual keying prevent mismating, while integrated locking features ensure reliable connection integrity over the life of the system.
Features and Benefits
- Compact interface optimized for high-density RF layouts
- 50 ohm impedance supports a wide range of industrial RF applications
- Sealed connector interfaces are IP67 and IP69K rated in the mated condition
- Rugged housings designed to withstand vibration and mechanical shock
- Mechanically and visually keyed designs to reduce installation errors
- Terminal Position Assurance (TPA) designed to prevent accidental disengagement
- Connector Position Assurance (CPA) offers a secondary locking feature
- Single and quad-port configurations for scalable RF channel integration
- PCB-mount and cable-mount options support flexible system design
- Compatible with TE's Ampseal 16 coax connector
Applications
- Smart Agriculture: Enables reliable high-speed data transmission between sensors, control systems, and connectivity modules for precision farming applications, supporting real-time monitoring of soil conditions, crop health and automated equipment operation.
- Industrial Automation: Provides robust, low-latency signal paths for communication between machines, sensors, and control systems, ensuring consistent performance, process efficiency and system reliability in factory environments.
- Material Handling: Supports dependable data connectivity across automated conveyor systems, sorting equipment, and warehouse management technologies, enabling efficient tracking, coordination and control of goods movement.
- Autonomous Mobile Robots (AMRs): Delivers high-reliability, high-speed interconnect solutions for navigation, obstacle detection, and real-time decision-making systems, ensuring precise and safe operation in dynamic environments.
- Drones: Facilitates stable, lightweight RF connectivity for flight control, imaging systems, and communication modules, enabling reliable data transmission for navigation, surveillance and aerial data collection.
- Remote Sensing Systems: Provides high-integrity signal transmission for distributed sensing platforms, supporting accurate data acquisition and communication in applications such as environmental monitoring, mapping and infrastructure inspection.
AUTOMATE® Type C Connectors
Electrical
| Impedance | 50 Ohm |
| Frequency Range | DC - 9GHz (20Gb/s Data Throughout |
| Return Loss |
|
| ≤ 23 dB max @ .01 - 1 GHz | < 23 dB + 3 dB/GHz*(f-1GHz) max @ 1-2GHz |
| ≤ 20 dB max @ 2 - 5.5 GHz | < 20 dB + 5 dB/GHz*(f-5.5 GHz) max @ 5.5-6.5 GHz |
| ≤ 15 dB max @ 6.5 - 8 GHz | < 15 dB = 3 dB/GHz*(f-8 GHz) max @ 8-9 GHz |
| Current Rating | ≤1 A DC |
| Center Contact Resistance | <24 mΩ |
| Outer Contact Resistance | <5 mΩ |
Environmental
| Temperature Range | -40˚C to +105˚C |
| RoHS | Compliant with Exemption 6C |
| Connector meets IP67 and IP69K in the mated condition |
|
Mechanical
| Mating Cycles | 10 Cycles Min. |
| Coupling Mechanism | Push-On |
| Engagement Force | ≤135N |
| Disengagement Force | ≤75N |
Materials
| PCB | Cable | |
| Body | Phosphor Bronze, Matte Tin Plating | Copper Nickel Alloy, Tin Plating |
| Center Contact | Copper Nickel Alloy, Silver Plating | Copper Nickel Alloy, Silver Plating |
| Housing | PA4T | PBT |
| Insulator | LCP | PBT |
| TPA | N / A | PBT |
| CPA | N / A | PBT |
Note: Technical specifications are typical and may vary by specific part number and design. See component drawing for additional details.
