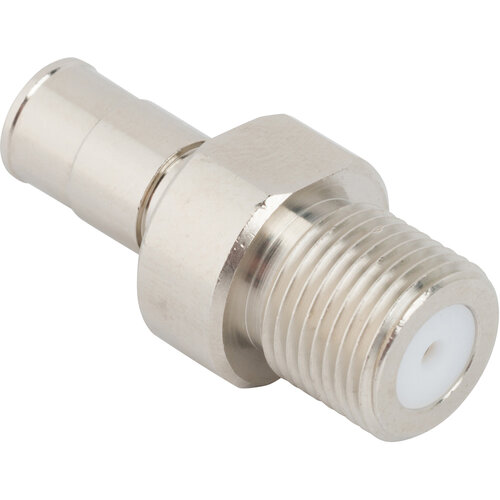

NDX Adapters

NDX™ adapters deliver a seamless transition between other interfaces, specifically the traditional Type F, which allows existing infrastructure to easily transition to a more robust RF interconnect system. The NDX system is engineered for next-generation CATV infrastructure and is engineered to support high-bandwidth applications up to 18 Gpbs while simplifying installation and improving long-term reliability.

NDX coaxial adapters feature an ultra-reliable mating interface and a wall plate adapter is available with a low profile or fully recessed interface which adapts to Type F interface common in existing structure. Built for evolving network demands, the NDX platform is optimized for current DOCSIS 3.1 systems and future-ready for emerging 5G and IoT technologies.

Features and Benefits

• Dual-shield design for low RF leakage and ingress
• Closed-entry, scoop-proof protection
• Audible snap-in mating mechanism
• Compatible with standard compression crimp tooling
• Supports DOCSIS 3.1 infrastructure
• Color-coded configurations available for simplified installation

Key Technical Details

• Impedance: 75 Ω
• Frequency Range: DC - 18 GHz
• Dielectric Material: PTFE

Applications

• CATV and satellite set top boxes
• In-building CATV infrastructure
• Coaxial splitters and amplifiers
• Hybrid fiber-coax nodes
• Cable model termination systems
