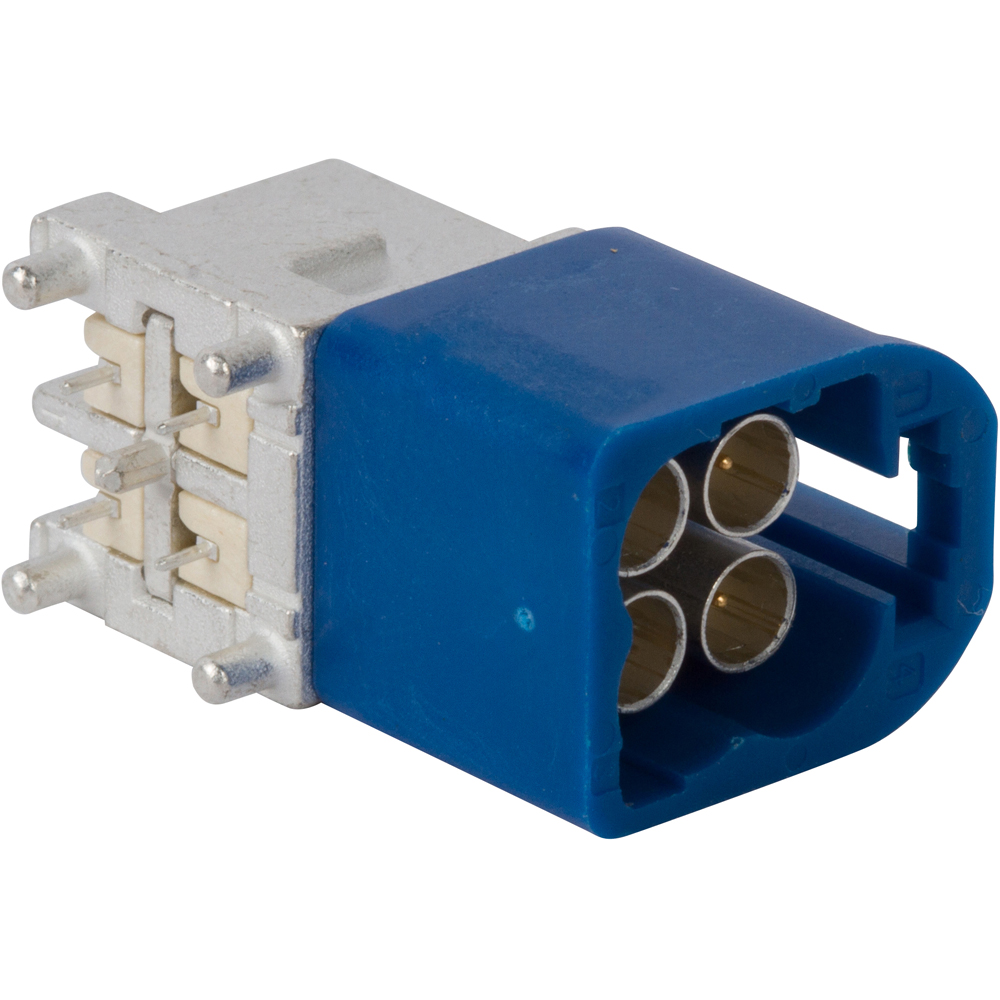

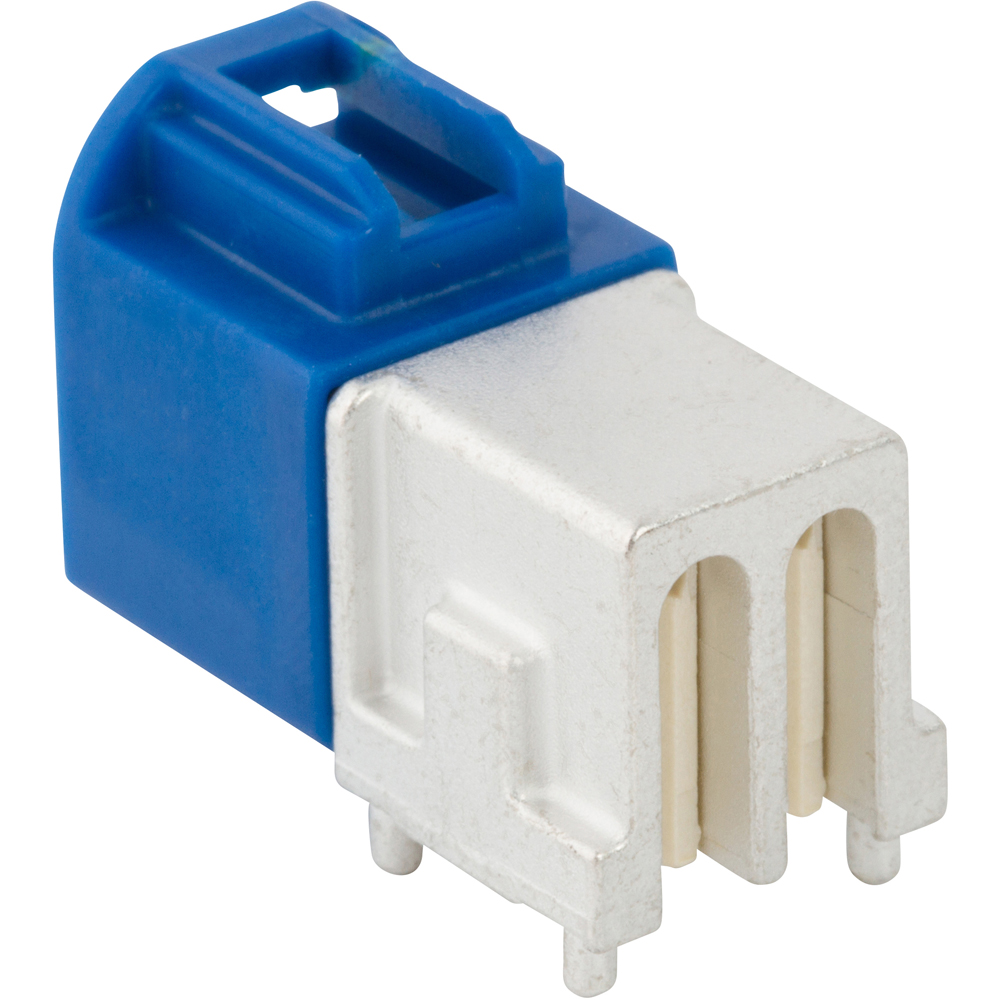

AUTOMATE Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm C Code

AUTOMATE Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm C Code

FM4-NCRP-PCB-1
部件状态: Active
产品规格

产品规格

属性 详细信息 参见模拟
选择以下属性查看类似产品
Body Finish
Tin
Body Material
Zinc Diecast
Contact Finish
Gold
Contact Material
Copper Nickel Alloy
Contact Termination
Crimp
Country of Origin
CN
Coupling Mechanism
Push-on
ECCN
EAR99
FAKRA Keycode
C - Signal Blue
Frequency (Max GHz)
9
Gender
Plug
HTS Code
8536.69.4010
Impedance (Ohms)
50
Insulator Material
LCP
IP Rating
Not Rated
Isolated
No
Low PIM
No
Mating Cycles (Min)
25
Mil Qualified
Not Mil Qualified
Non Magnetic
Contains Magnetic Materials
Orientation
Right Angle
Panel Mounting Feature
Not Applicable
PFAS
PFAS Status Undetermined
Ports
4 (Quad Port)
Size Category
Subminiature
Temp (Max Degrees Celsius)
105
Temp (Min Degrees Celsius)
40
Termination Style
PCB - Through Hole
Unit Weight (Grams)
9.600
参见模拟
所有相关文件

所有相关文件

锁定的项目需要一个 Amphenol RF 账户
登录/注册
文件标题 类型 发布日期
AUTOMATE Type A Mini-FAKRA (尺寸: 505.6 KB)
pdf
2026/3/31
AUTOMATE® Mini-FAKRA Product Series Solutions Guide - English (尺寸: 5.9 MB)
pdf
2026/3/31
FM4-NXRP-PCB-1 PDF Customer Drawing (尺寸: 378.3 KB)
pdf
2026/5/7
FM4-NCRP-PCB-1 STP 3D Model (尺寸: 3.9 MB)
stp
2026/3/31

相关资源

Amphenol RF offers advanced RF interconnect solutions tailored for camera and vision systems used in automotive and industrial applications. These solutions include ruggedized, waterproof, and vibration-resistant connectors, ideal for high-frequency and high-speed data transmission.
Camera and Vision Systems Solutions
Amphenol RF offers advanced RF interconnect solutions tailored for camera and vision systems used in automotive and industrial applications. These solutions include ruggedized, waterproof, and vibration-resistant connectors, ideal for high-frequency and high-speed data transmission.
更多信息
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
AUTOMATE® Mini-FAKRA Product Series Solutions - Chinese
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
更多信息
The Amphenol RF AUTOMATE® Mini-FAKRA Type A connectors offer an advanced automotive connector system. These features make the AUTOMATE Mini-FAKRA Type A connectors ideal for high-bandwidth automotive applications such as ADAS, GPS navigation, and 360-degree surround view cameras.
AUTOMATE Type A Mini-FAKRA Features & Benefits
The Amphenol RF AUTOMATE® Mini-FAKRA Type A connectors offer an advanced automotive connector system. These features make the AUTOMATE Mini-FAKRA Type A connectors ideal for high-bandwidth automotive applications such as ADAS, GPS navigation, and 360-degree surround view cameras.
更多信息
The Amphenol RF AUTOMATE Type A Mini-FAKRA connector series offers a high-performance, space-efficient solution for automotive applications, supporting data transmission up to 20 Gbps. These connectors feature a compact, modular housing that saves up to 80% installation space compared to traditional FAKRA connectors and are available in single, dual, and quad-port configurations. They are ideal for applications such as 360-degree surround view cameras, ADAS, GPS navigation, high-bandwidth infotainment, and V2X communication. The connectors provide low engagement and disengagement forces, impact resistance, and visual guidance through color-coded housings to prevent mis-mating.
AUTOMATE Type A Mini-FAKRA
The Amphenol RF AUTOMATE Type A Mini-FAKRA connector series offers a high-performance, space-efficient solution for automotive applications, supporting data transmission up to 20 Gbps. These connectors feature a compact, modular housing that saves up to 80% installation space compared to traditional FAKRA connectors and are available in single, dual, and quad-port configurations. They are ideal for applications such as 360-degree surround view cameras, ADAS, GPS navigation, high-bandwidth infotainment, and V2X communication. The connectors provide low engagement and disengagement forces, impact resistance, and visual guidance through color-coded housings to prevent mis-mating.
更多信息
Amphenol RF's AUTOMATE Mini-FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four SMA plugs or jacks, designed on flexible TFC-302LL cable. These assemblies provide up to 80% space savings compared to traditional FAKRA connectors and support high-performance up to 9 GHz. Ideal for automotive applications like 360-degree cameras and ADAS, as well as antennas, handheld devices, and drones, they offer secure, low-engagement force connections with a compact, modular design and universal Z color coding.
AUTOMATE Type A to Mini-FAKRA to SMA Cable Assemblies
Amphenol RF's AUTOMATE Mini-FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four SMA plugs or jacks, designed on flexible TFC-302LL cable. These assemblies provide up to 80% space savings compared to traditional FAKRA connectors and support high-performance up to 9 GHz. Ideal for automotive applications like 360-degree cameras and ADAS, as well as antennas, handheld devices, and drones, they offer secure, low-engagement force connections with a compact, modular design and universal Z color coding.
更多信息
Amphenol RF's AUTOMATE Mini-FAKRA cable assemblies feature a compact, modular design that offers significant space savings (up to 80%) compared to traditional FAKRA connectors. These pre-configured 50 Ohm multi-port assemblies on low-loss TFC-302LL and RG-174 cables are ideal for high-bandwidth automotive and industrial applications, such as 360-degree cameras, ADAS, GPS navigation, and infotainment systems. They support high performance up to 9 GHz and 20 Gbps data transfer rates, with a universal Z color coding for intermateability and low engagement forces for easy installation.
AUTOMATE Type A Mini-FAKRA Cable Assemblies
Amphenol RF's AUTOMATE Mini-FAKRA cable assemblies feature a compact, modular design that offers significant space savings (up to 80%) compared to traditional FAKRA connectors. These pre-configured 50 Ohm multi-port assemblies on low-loss TFC-302LL and RG-174 cables are ideal for high-bandwidth automotive and industrial applications, such as 360-degree cameras, ADAS, GPS navigation, and infotainment systems. They support high performance up to 9 GHz and 20 Gbps data transfer rates, with a universal Z color coding for intermateability and low engagement forces for easy installation.
更多信息
Amphenol RF's AUTOMATE Mini-FAKRA to IP67 FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four IP67 FAKRA jacks on low-loss RG-174 cable. These assemblies, designed for high-bandwidth automotive and industrial applications such as 360-degree cameras and ADAS, offer secure snap-on interfaces with low engagement forces, providing high performance up to 3 GHz. They feature rugged, impact-resistant housing with universal Z color coding and mechanical keying for intermateability, ensuring easy and reliable installation.
AUTOMATE Mini-FAKRA to FAKRA Breakout Cables
Amphenol RF's AUTOMATE Mini-FAKRA to IP67 FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four IP67 FAKRA jacks on low-loss RG-174 cable. These assemblies, designed for high-bandwidth automotive and industrial applications such as 360-degree cameras and ADAS, offer secure snap-on interfaces with low engagement forces, providing high performance up to 3 GHz. They feature rugged, impact-resistant housing with universal Z color coding and mechanical keying for intermateability, ensuring easy and reliable installation.
更多信息
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
AUTOMATE® Mini-FAKRA Product Series Solutions Guide - English
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
更多信息
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
AUTOMATE® Mini-FAKRA Product Series Solutions Guide - Japanese
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
更多信息
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
AUTOMATE® Mini-FAKRA Product Series Solutions Guide - Korean
In-depth look at the mini-FAKRA product series and how these next-generation RF interconnect support future automotive and industrial IoT designs.
更多信息
Amphenol RF's AUTOMATE Type A Mini-FAKRA to FAKRA breakout cables feature compact, modular housings with multi-port configurations, utilizing low-loss, flexible cables. These assemblies are ideal for high-bandwidth automotive and industrial applications, including 360-degree cameras, advanced driver assistance systems (ADAS), and GPS, providing reliable performance up to 6 GHz.
AUTOMATE Mini-FAKRA to FAKRA Cable Assemblies
Amphenol RF's AUTOMATE Type A Mini-FAKRA to FAKRA breakout cables feature compact, modular housings with multi-port configurations, utilizing low-loss, flexible cables. These assemblies are ideal for high-bandwidth automotive and industrial applications, including 360-degree cameras, advanced driver assistance systems (ADAS), and GPS, providing reliable performance up to 6 GHz.
