Eliminieren Sie magnetische Interferenzen mit MCX-Steckverbindern aus nicht-eisenhaltigen Materialien

Amphenol RF freut sich, die Erweiterung unserer MCX-Produktreihe um zusätzliche Kabelkonfektionsoptionen für RG-174-Kabel bekannt zu geben.

Amphenol RF freut sich, die Erweiterung unseres Kabelkonfektionsportfolios um zusätzliche BNC zu MCX und MMCX Konfigurationen bekannt zu geben.

Amphenol RF freut sich, sein Angebot an Kabelkonfektionen mit zusätzlichen MCX- und MMCX-Kabelkonfektionen zu erweitern, die auf flexiblem 1,13 mm Mikrokoaxialkabel basieren.

Amphenol RF erweitert sein Kabelkonfektionsportfolio um MCX-Konfektionen, die eine sichere, wetterbeständige Konnektivität für drahtlose Kommunikationssysteme bieten.

Amphenol RF erweitert sein Portfolio an vorkonfigurierten Kabelkonfektionen um neue MCX-Konfektionen, die als zuverlässige Steckverbinder für industrielle und drahtlose Außensysteme entwickelt wurden.

Amphenol RF erweitert sein Portfolio an vorkonfigurierten Kabelkonfektionen um neue MCX-Konfektionen, die speziell für den Einsatz in industriellen und drahtlosen Außenanlagen entwickelt wurden.

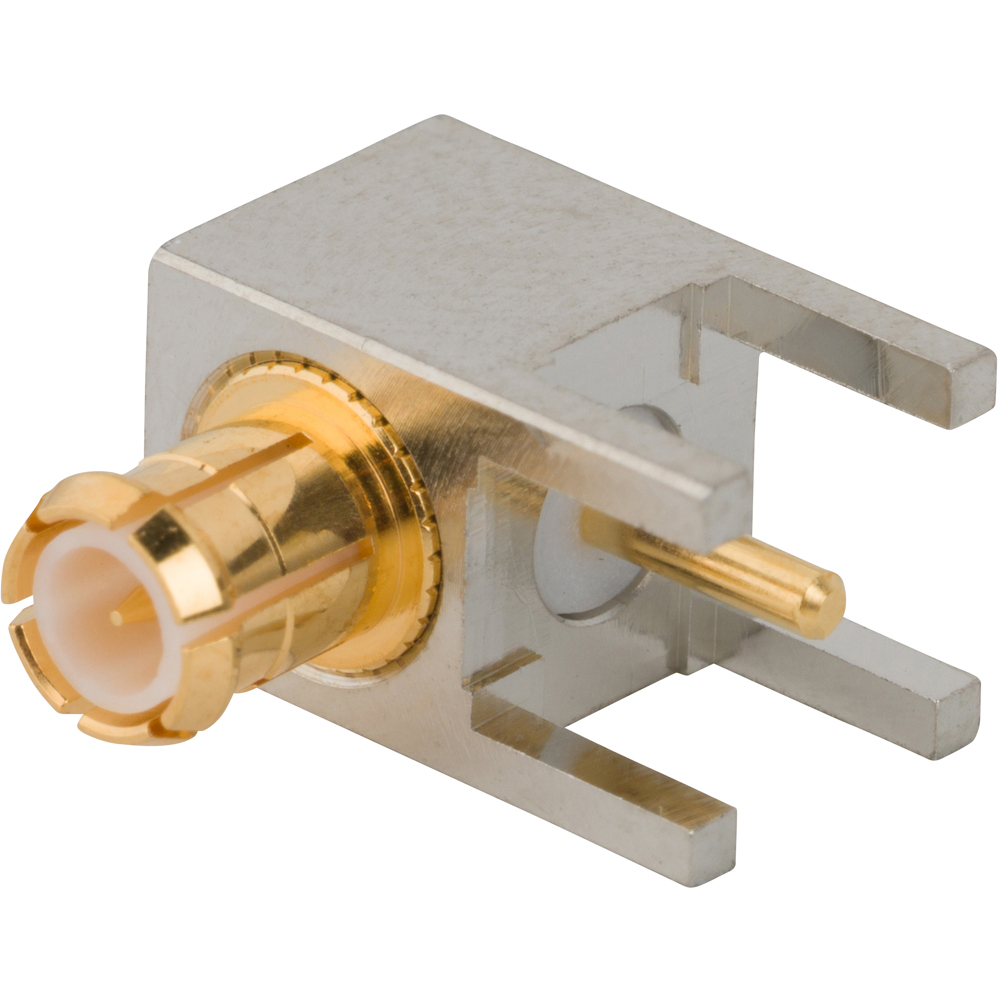

Amphenol RF führt zusätzliche nicht-magnetische MCX-Steckverbinderkonfigurationen ein, um sicherzustellen, dass RF-Signale in empfindlichen Anwendungen nicht durch magnetische Störungen beeinträchtigt werden.

Amphenol RF's 12G MCX connectors support 12Gbps data transfer, facilitating the transmission of high-resolution 4K and Ultra-HD video in a compact size. These connectors are ideal for broadcast modules and video routers, offering both PCB and cable configurations with a push-on coupling mechanism, optimized for 75-ohm 12G SDI applications.

Amphenol RF offers 12G SDI broadcast solutions designed for Ultra High Definition (4K) video, utilizing BNC, HD-BNC, and MCX connectors optimized for 12 Gbps data transfer. These connectors provide reliable, high-quality signal transmission on a single channel, supporting various applications including mobile broadcast, HD cameras, and video routers.

Amphenol RF's MMCX Cable Assemblies provide broadband performance with low reflections, featuring quick connect/disconnect snap-on mating in a micro-miniature package size. These 50 ohm assemblies, available in various standard lengths, are ideal for applications such as broadband modules, Wi-Fi access points, GPS units, and antennas, offering reliable performance up to 6 GHz.

Amphenol RF's MCX Cable Assemblies provide broadband performance with low reflections, featuring a quick connect/disconnect snap-on mating mechanism. These 50 and 75 ohm assemblies, available in various lengths and configurations, are ideal for broadcast equipment, Wi-Fi access points, GPS units, and wireless network antennas, offering reliable electrical performance up to 6 GHz (12 GHz for 75 ohm products).

Amphenol RF's MMCX Ultraminiature Product Series offers 50 ohm connectors and cable assemblies designed for micro-coax cable types, providing broadband performance with low reflection and quick connect/disconnect snap-on mating. These assemblies are ideal for space-constrained applications such as IoT devices, Wi-Fi access points, GPS units, and external antenna connections, with configurations that allow for flexible routing within enclosures.

Amphenol RF's MCX Ultraminiature Product Series includes robust, 50 ohm connectors and cable assemblies designed for space-constrained applications such as IoT devices and handheld electronics. These assemblies feature quick connect/disconnect snap-on mating, micro-miniature size, and are available in various configurations, making them suitable for external antennas and internal connections within devices.

The Amphenol RF MCX series catalog showcases a family of micro-coaxial (MCX) connectors offering broadband performance from DC to 6 GHz (and up to 12 GHz in 75 Ω broadcast variants) with 50 Ω or 75 Ω impedance options, featuring a compact snap-on coupling mechanism for weight- and space-constrained applications.

The Amphenol RF MCX Cable Assemblies Data Sheet highlights between-series board-to-panel cable solutions designed for wireless communication modules. These assemblies combine compact MCX interfaces with rugged, sealed bulkhead connectors to enable reliable RF connectivity in space-constrained and environmentally exposed applications.

The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.

This datasheet highlights Amphenol RF’s MCX cable assemblies for wireless communication modules, featuring between-series board-to-panel configurations built on flexible RG-316 cable for reliable performance up to 6 GHz. The assemblies combine MCX straight or right-angle plugs with rugged, IP67-rated bulkhead connectors—including SMA, RP-SMA, TNC, RP-TNC, and N-Type—designed to provide secure, sealed connections that protect systems from temporary water and fluid ingress. Optimized for short-distance RF applications, these cable assemblies offer high heat resistance, durability, and low signal loss, making them well-suited for portable IoT devices, drones, GPS/GNSS, Wi-Fi, and demanding industrial, agricultural, and construction environments, with a wide range of standard and custom cable lengths available.

The Amphenol RF MMCX series catalog features a compact line of 50-ohm RF connectors delivering reliable performance from DC to 6 GHz. With a 3.5 mm snap-on interface rated for 500 mating cycles, the series supports secure, tool-free connections in space-constrained designs.

September 23, 2020 - Today’s 4K and emerging 8K video standards require an enormous amount of bandwidth. And, with all that bandwidth, there are new demands on our interconnects. In this episode of Chalk Talk, Amelia Dalton chats with Mike Comer and Ron Orban of Amphenol RF about the evolution of broadcast technology and the latest interconnect solutions that are required to meet these new demands. More information about Amphenol RF Adapters & Cable Assemblies for Broadcast: https://bit.ly/3iYYECS

View full article: https://www.allaboutcircuits.com/new-industry-products/amphenol-rf-bnc-to-mcx-cable-assemblies-new-product-brief View product at Mouser.com: https://bit.ly/2Vp4mmU Amphenol RF BNC to MCX Cable Assemblies are designed to deliver 4K video and other high bandwidth data on a compact interconnect without compromising signal quality. The cable assemblies offer a 75 ohm impedance and use Belden 4855R cable, ensuring quality transmission from the source to the receiver. For more information, as well as all the latest All About Circuits projects and articles, visit the official website at http://www.allaboutcircuits.com/ Check out Mouser's profile on All About Circuits and see more product briefs and articles at https://www.allaboutcircuits.com/author/mouser-electronics For more new products at Mouser, visit https://www.mouser.com/new/ Don't have AAC account yet? Register here! It's free and always will be. https://forum.allaboutcircuits.com/register Subscribe on YouTube: https://www.youtube.com/c/AllAboutCircuitsVideo Like us on Facebook: https://www.facebook.com/allaboutcircuits Follow us on Twitter: https://twitter.com/AllAboutCircuit Follow us on LinkedIn: https://www.linkedin.com/company/allaboutcircuits
