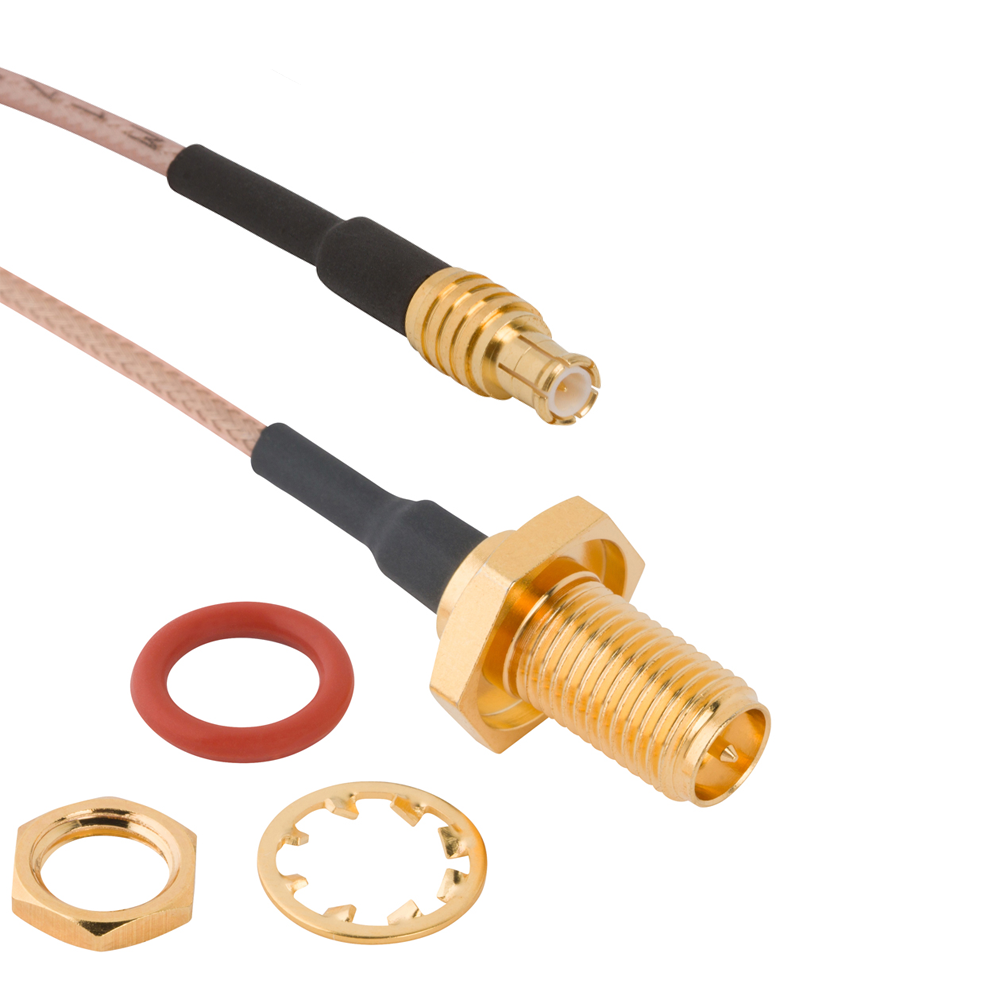

安费诺射频（Amphenol RF）很高兴宣布扩展我们的线缆组件产品组合，新增了配备坚固耐用的 IP67 级隔板式 SMA、TNC、RP-TNC
及 N 型直插式插座的
MCX 直插式和直角插头配置。这些组件采用超薄 RG-178 同轴电缆设计，
可在高达 6 GHz 的频率下提供卓越的电气性能，并在短距离、低频
射频应用中确保可靠的连接。 这些跨系列组件允许电缆从
面板外部（即螺纹接口所在位置）进行连接，并专为板载 MCX 连接器的无线通信
模块而设计。
将电路板上常用的 MCX 与更坚固的连接器相结合，为包括便携式设备、GPS、Wi-Fi 以及
农业机械、土方工程、采矿和其他重型工业设备在内的车载设计提供了多种应用
选择。面板外的连接器
经过密封处理，可防止水和其他液体暂时渗入。这
消除了系统因外部因素而受损的风险。
这些组件加入了日益丰富的预配置线缆产品系列，专为支持无线模块而设计，这些模块需外部连接天线，并需要更坚固的解决方案以确保系统不受天气影响
或人为破坏。这些组件可通过我们的
分销合作伙伴购买，标准长度范围为
3至48英寸。
查看全部：MCX线缆组件
