使用 IP67 RP-SMA 连接器保护无线系统免受灰尘和水的侵袭

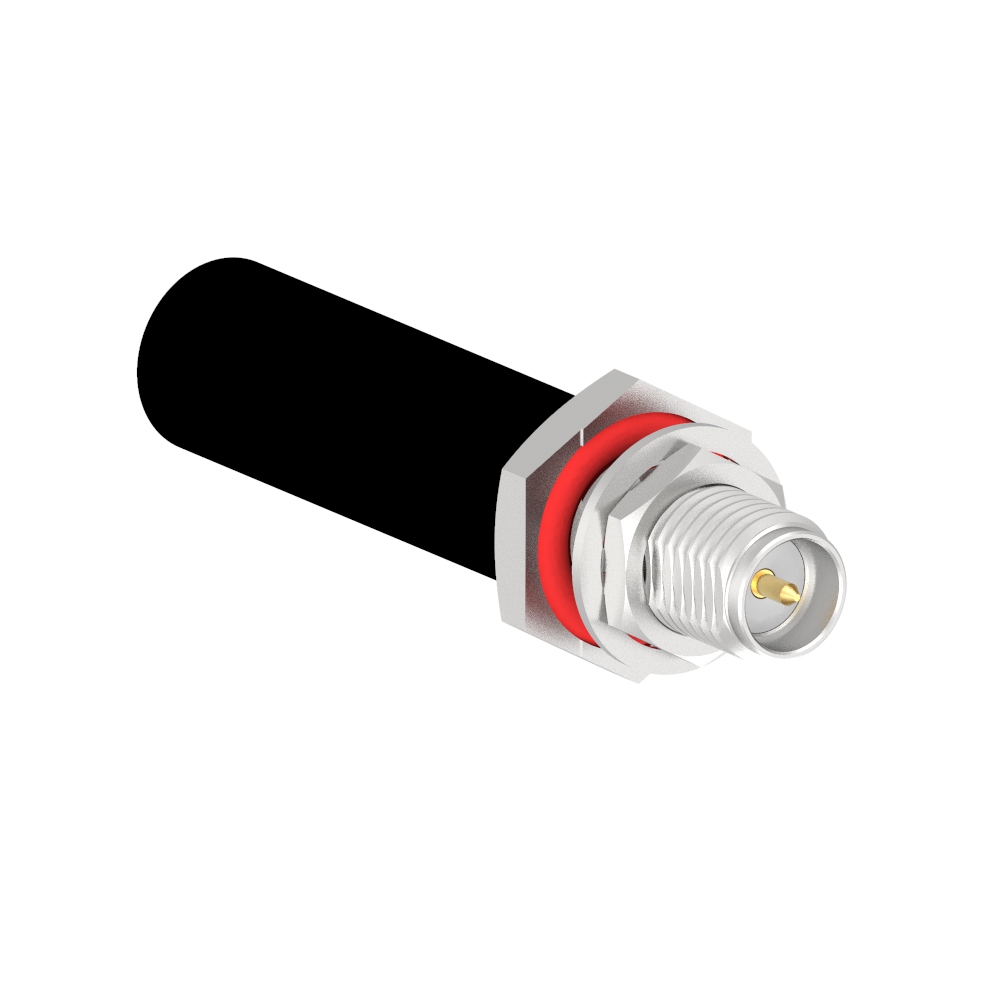

Amphenol RF 推出 IP67 RP-SMA 后安装连接器，通过防止灰尘和水渗入连接，帮助在恶劣环境中保持可靠的射频性能。

Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.

Amphenol RF's RP-SMA Cable Assemblies feature gold-plated brass bodies and support up to 500 mating cycles, designed for applications requiring low-loss antenna connections. These fixed length assemblies on RG-58, RG-174, and RG-316 cables offer reliable performance up to 5 GHz, ideal for laboratory RF test and measurement, wireless LAN antennas, land mobile radio, and cellular communication systems.

Amphenol RF's IP67 SMA Front Mount Bulkhead Jacks offer waterproof, tamper-resistant RF interconnect solutions with reliable electrical performance up to 6 GHz. Designed for applications like antennas, base stations, and industrial automation, these connectors feature a threaded coupling mechanism for secure mating and are ideal for use in space-constrained environments.

Amphenol RF's SMA and RP-SMA Straight Crimp Jacks provide reliable electrical performance up to 6 GHz, featuring a threaded coupling mechanism for secure mating and vibration resistance. These 50 ohm connectors are ideal for applications with space constraints, such as antennas, base stations, drones, and test and measurement equipment, and are available for various micro-coax cable types.

Amphenol RF's RP-SMA to AMC Cable Assemblies offer reliable electrical performance up to 9 GHz, featuring threaded coupling for secure mating and vibration resistance. These assemblies are available in both IP67 and non-IP67 configurations, ideal for applications such as antennas, base stations, drones, and industrial automation, providing a space-efficient solution with a small footprint and low profile.

Amphenol RF's Locking MHF I Cable Assemblies feature a patented locking system for tamper-resistant, vibration-resistant performance, available with waterproof IP67 options. These 50 ohm assemblies are ideal for applications such as drones, GPS, and industrial automation, offering reliable electrical performance up to 6 GHz with configurations including SMA, RP-SMA, TNC, and RP-TNC connectors.
