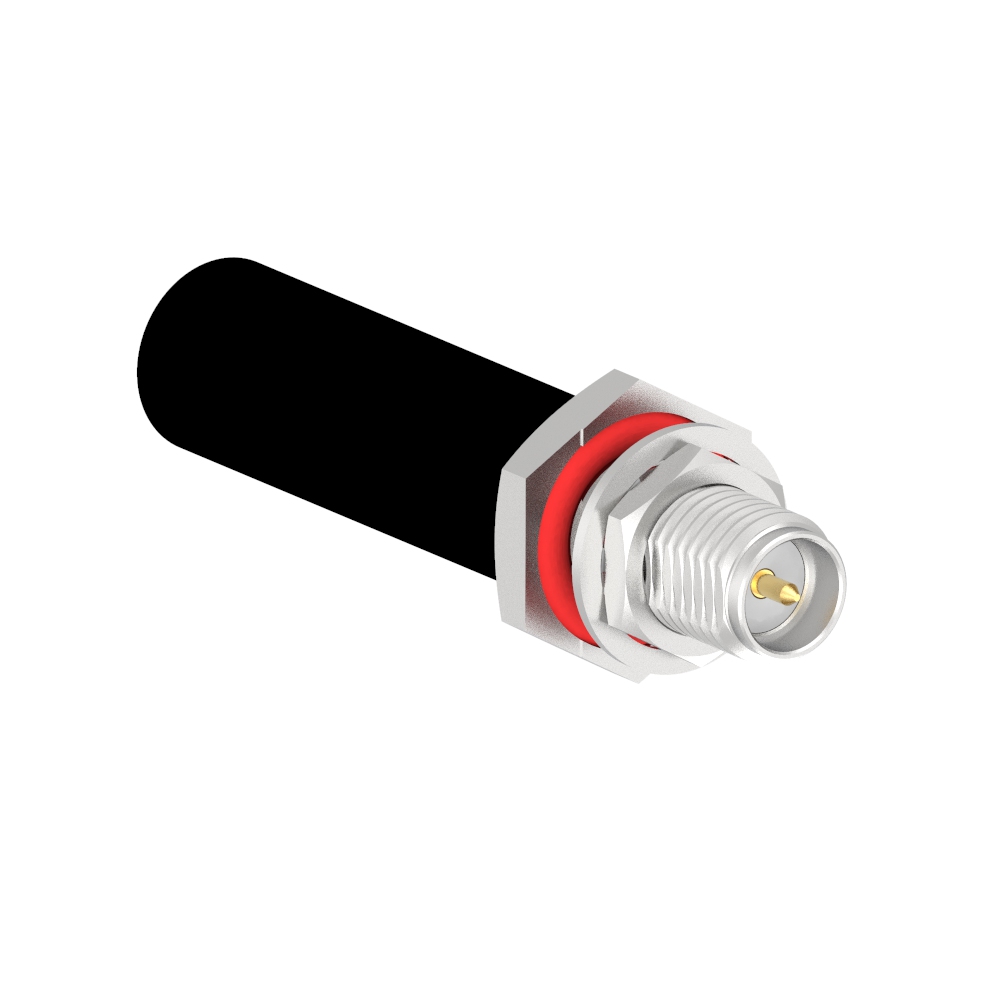

Amphenol RF is pleased to introduce a new IP67 RP-SMA rear mount straight bulkhead jack connector designed for RG-174 cable applications requiring reliable environmental protection and dependable RF performance. Engineered for wireless systems operating in harsh outdoor and industrial environments, the connector helps safeguard connections from dust and water ingress while supporting durable cable assembly integration.
The connector meets IP67 standards in the unmated condition and features adhesive-lined heat shrink tubing for enhanced durability and environmental sealing. Designed with a nickel-plated brass body to provide a cost-effective and rugged solution, the connector also includes a “D” flat for easier mounting and supplied mounting hardware for secure installation. Supporting panels up to 2.5 mm thick, the connector is rated for 500 mating cycles and operates across a wide temperature range from -65 °C to +165 °C, making it ideal for demanding wireless infrastructure and positioning system applications.
This RP-SMA bulkhead jack expands Amphenol RF’s growing portfolio of environmentally protected RF interconnect solutions designed for wireless modules, smart agriculture technology, GNSS/GPS systems and wireless telecom infrastructure applications requiring long-term reliability in challenging operating conditions.
Learn more
The connector meets IP67 standards in the unmated condition and features adhesive-lined heat shrink tubing for enhanced durability and environmental sealing. Designed with a nickel-plated brass body to provide a cost-effective and rugged solution, the connector also includes a “D” flat for easier mounting and supplied mounting hardware for secure installation. Supporting panels up to 2.5 mm thick, the connector is rated for 500 mating cycles and operates across a wide temperature range from -65 °C to +165 °C, making it ideal for demanding wireless infrastructure and positioning system applications.
This RP-SMA bulkhead jack expands Amphenol RF’s growing portfolio of environmentally protected RF interconnect solutions designed for wireless modules, smart agriculture technology, GNSS/GPS systems and wireless telecom infrastructure applications requiring long-term reliability in challenging operating conditions.
Learn more
