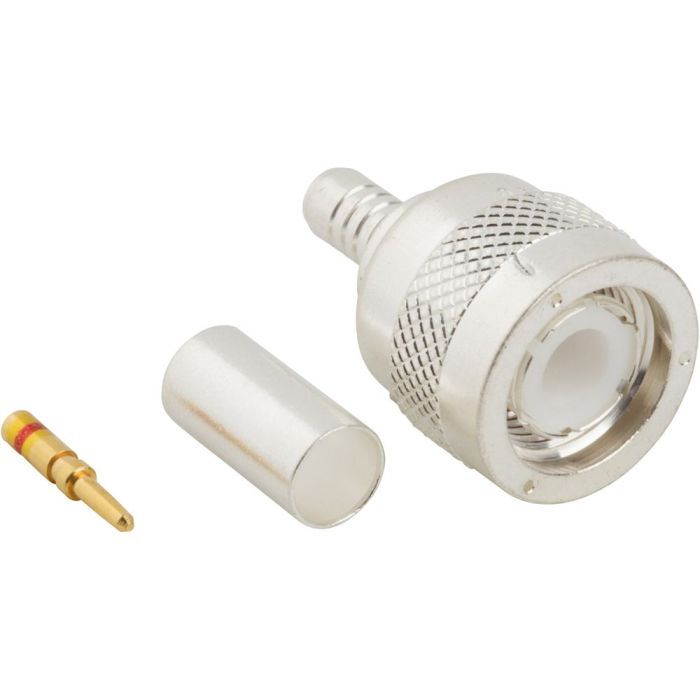

M39012/26-0503 TNC Straight Crimp Plug RG-58 RG-142 RG-223 RG-400 50 Ohm QPL Approved

M39012/26-0503 TNC Straight Crimp Plug RG-58 RG-142 RG-223 RG-400 50 Ohm QPL Approved

Name: M39012/26-0503 TNC Straight Crimp Plug RG-58 RG-142 RG-223 RG-400 50 Ohm QPL Approved
SKU: 031-4452

In stock

031-4452

Product Compliance

M39012/26-0503 RF Connector TNC Straight Crimp Plug RG-58 RG-142 RG-223 RG-400 50 Ohm QPL Approved

Downloads

Product Life Cycle
Part Status	Active

Alias	M39012/26-0503
Body Finish	Silver
Body Material	Brass
Cable Type (Terminates to)	RG-58, RG-141, Times LMR-195, Times LMR-200-LLPL, Belden 7806A, Belden 8219, Belden 8240, Belden 8259, Belden 8262, Belden 9201, Belden 9203, Belden 9310, Belden 9311
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Coupling Mechanism	Threaded
Crimp Tool	CTL-3
Export Control Classification Number	EAR99
Frequency (Max GHz)	11
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Miniature
Temp (Max Degrees Celsius)	165
Temp (Min Degrees Celsius)	-65
Termination Style	Cable - Crimp
Thread Direction	Standard
