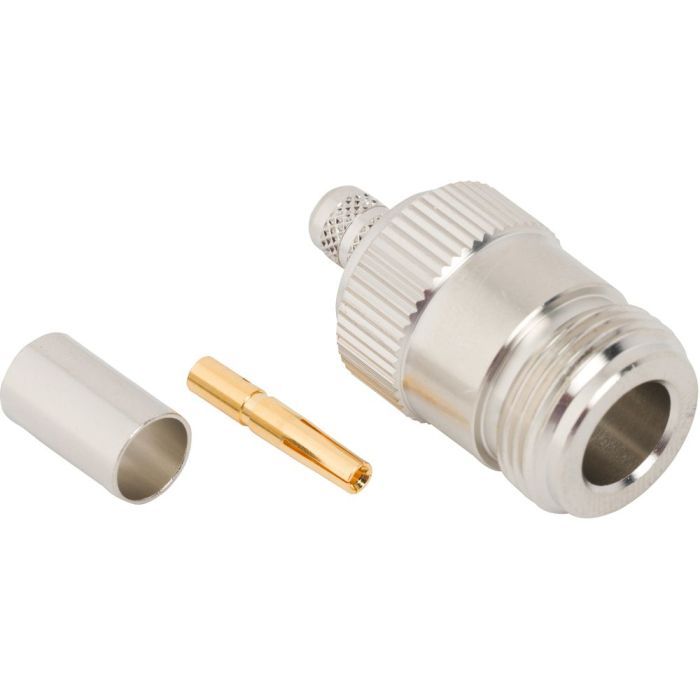

N-Type Straight Crimp Jack RG-59 RG-62 50 Ohm

Name: N-Type Straight Crimp Jack RG-59 RG-62 50 Ohm
SKU: 082-6092-RFX

In stock

082-6092-RFX

Product Compliance

RF Connector N-Type Straight Crimp Jack RG-59 RG-62 50 Ohm

Downloads

Product Life Cycle
Part Status	Active

Body Finish	Nickel
Body Material	Brass
Cable Type (Terminates to)	RG-59, RG-62, Belden 8221, Belden 8241, Belden 9169, Belden 9204, Belden 9228, Canare LV-61S
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Termination	Crimp
Coupling Mechanism	Threaded
Crimp Tool	CTL-8
Export Control Classification Number	EAR99
Frequency (Max GHz)	2.2
Gender	Jack
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	Not Applicable
Ports	1 (Single Port)
Size Category	Standard
Temp (Max Degrees Celsius)	85
Temp (Min Degrees Celsius)	-40
Termination Style	Cable - Crimp
Thread Direction	Standard
