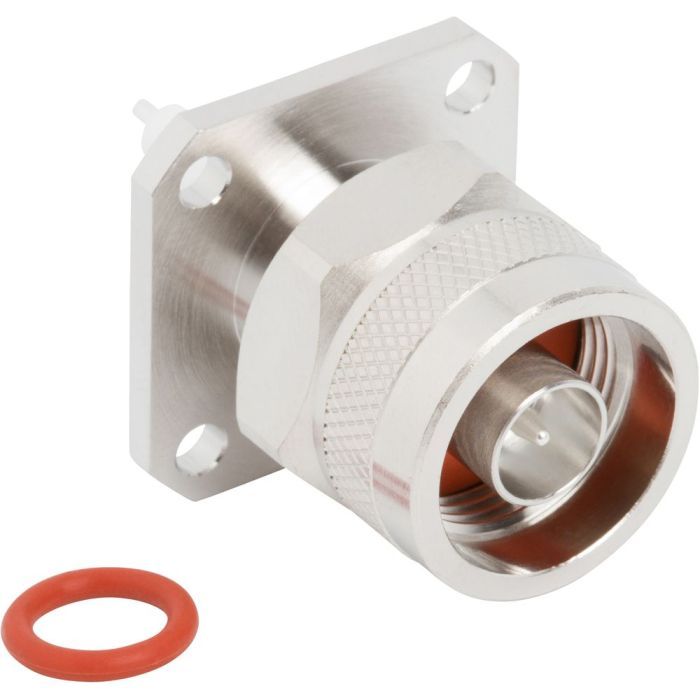

N-Type Panel Mount Plug 4-Hole Round Post 50 Ohm 0.705 Post 0.590 PTFE

Name: N-Type Panel Mount Plug 4-Hole Round Post 50 Ohm 0.705 Post 0.590 PTFE
SKU: 082-6713-705590

In stock

082-6713-705590

N-Type Pnl Mount Pl 4-H Rnd Post 50 Ohm 0.705 Post 0.590 PTFE

Product Compliance

RF Connector N-Type Pnl Mount Pl 4-H Rnd Post 50 Ohm 0.705 Post 0.590 PTFE

Downloads

Product Life Cycle
Part Status	Active

Body Finish	White Bronze
Body Material	Brass
Cable Type (Terminates to)	Not Applicable
Contact Finish	Silver
Contact Material	Brass
Contact Termination	Solder
Coupling Mechanism	Threaded
Export Control Classification Number	EAR99
Extended Dielectric Length	0.590 Inches (14.99 mm)
Frequency (Max GHz)	18
Gender	Plug
IP Rating	Not Rated
Impedance (Ohms)	50
Insulator Material	PTFE
Isolated	No
Low PIM	No
Mil Qualified	Not Mil Qualified
Non Magnetic	No
Orientation	Straight
Panel Mounting Feature	4-Hole Flange
Ports	1 (Single Port)
Post Length	0.705 Inches (17.91 mm)
Size Category	Standard
Termination Style	Cable - Solder
Thread Direction	Standard
