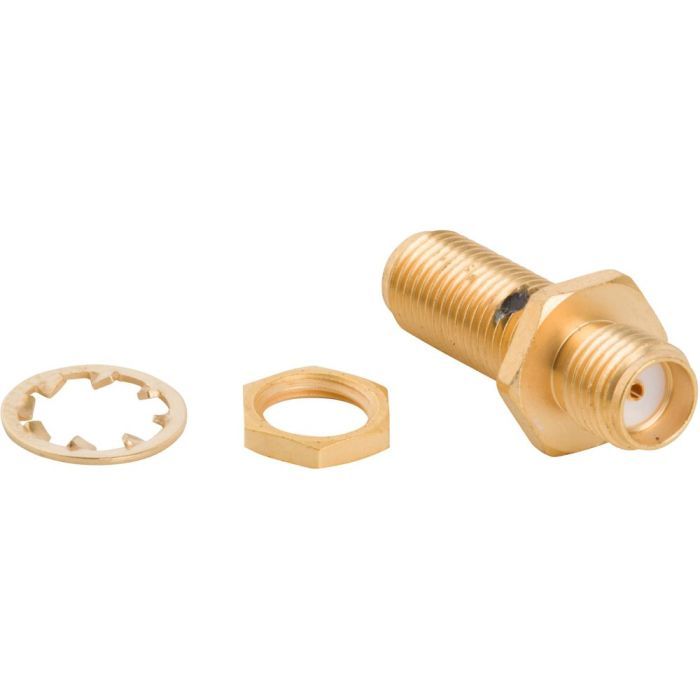

SMA Jack to SMA Jack Adapter 50 Ohm Straight Bulkhead
In stock
901-9209A
SMA Jack to SMA Jack Adapter 50 Ohm Straight Bulkhead
Product Compliance
- RoHS (EU). Compliant with Exemption 6C - View Certificate
- California residents see Prop 65 Warning
- Additional compliance information is available in our Compliance Center.
SMA Jack to SMA Jack Adapter 50 Ohm Straight Bulkhead
Product Life Cycle
| Part Status | Active |
|---|
Product Specifications
| Adapter Configuration | SMA Jack to SMA Jack |
|---|---|
| Adapter Type | In-Series |
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Export Control Classification Number | EAR99 |
| Frequency (Max GHz) | 12.4 |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Bulkhead |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
