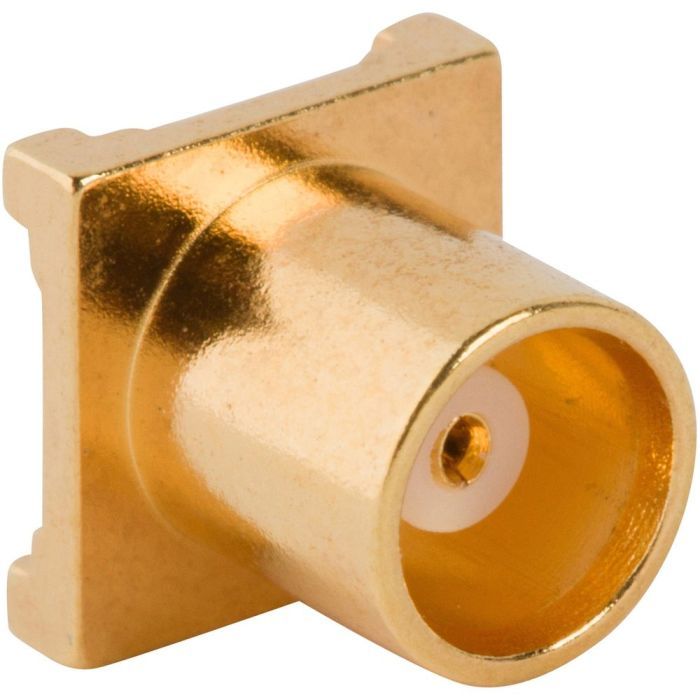

MCX Straight PCB Jack Surface Mount 50 Ohm
In stock
919-384J-51P
MCX Straight PCB Jack Surface Mount 50 Ohm
Product Compliance
- RoHS (EU). Compliant with Exemption 6C - View Certificate
- California residents see Prop 65 Warning
- Additional compliance information is available in our Compliance Center.
RF Connector MCX Straight PCB Jack Surface Mount 50 Ohm
Product Life Cycle
| Part Status | Active |
|---|
Product Specifications
| Body Finish | Gold |
|---|---|
| Body Material | Brass |
| Cable Type (Terminates to) | Not Applicable |
| Contact Finish | Gold |
| Contact Material | Beryllium Copper |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Export Control Classification Number | EAR99 |
| Frequency (Max GHz) | 6 |
| Gender | Jack |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | PTFE |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Not Applicable |
| Ports | 1 (Single Port) |
| Size Category | Microminiature |
| Temp (Max Degrees Celsius) | 165 |
| Temp (Min Degrees Celsius) | -65 |
| Termination Style | PCB - Surface Mount |
