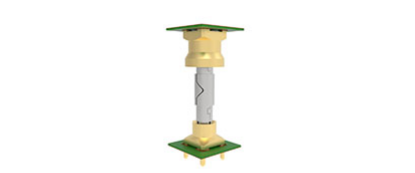

Parallel

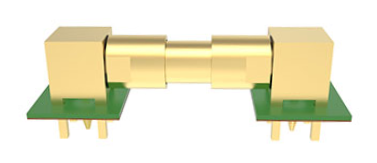

Co-Planar
Right-Angle
The UD-AFI is a stamped and molded high float interconnect that offers a low profile PCB to PCB and Cable to PCB solution for automotive designs requiring high-frequency performance up to 9 GHz. This low profile cable has ultra-dense packaging and supports low loss automotive cables. UD-AFI connectors can be integrated into camera packaging or stand-alone with robust locking housing.
The AFI connector series is a board-to-board solution for RF applications commonly used in military and broadband applications. The AFI interface utilizes a proprietary two-piece configuration that compensates for high axial and radial misalignment with industry leading float (0.030” [0.8 mm] radial and 0.040” [1.0 mm] axial). 50 ohm AFI connectors operate to 6 GHz and 75 ohm options support a maximum frequency of 3 GHz.
Supporting a maximum frequency range of 18 GHz, the HD-AFI interface is a versatile 75 ohm board-to-board connector system ideal for broadband applications. The HD-AFI interface utilizes a proprietary configuration that allows for a very stable RF signal over the full axial range of the connector system. Generous float (0.052” [1.32 mm] radial and 0.079” [2.0 mm] axial) compensates for misalignment due to packaging tolerances and low engagement forces make it ideal for multi-port solutions.
The HD-EFI connector system is a 50 ohm three-piece board-to-board solution offering excellent performance through 6 GHz. It is an ideal board-to-board solution where space constraints exist or where PCB stack heights vary. The HD-EFI supports blindmating needs with a crash-proof, closed entry contact design.
The P-SMP connector series is a board-to-board solution for RF applications requiring high power. With a minimum board spacing of 12.6 mm, the three-piece design allows maximum flexibility for high-density board spacing. The interface is capable of continuous power handling of 220 W at 2.2 GHz making it ideal for wireless antenna applications.
The SMP connector system is a 50 ohm board-to-board solution offering performance through 26.5 GHz, with the ability to enhance performance to 40 GHz for some designs through PCB optimization analysis. This dependable mating system utilizes the three-piece configuration, and a design focused on keeping a consistent RF signal with ample float (0.020” [0.51 mm] radial and 0.010” [0.25 mm] axial). This performance focus makes SMP connectors a good choice for military, measurement and quantum computing applications.
The SMPM interface is a micro-miniature interface with an optimized frequency range of DC to 65 GHz. This series is a smaller version of the SMP, with full detent and smooth bore mating systems providing mating force options. This family of interconnects addresses small package, high-performance design needs, with float (0.020” [0.51 mm] radial and 0.010” [0.25 mm] axial) designed to maintain a strong RF signal.
Depends on bullet length (4.8° tilt)
Float: General term describing the board-to-board system’s physical ability to maintain a consistent RF signal between the PCB connectors and the bullet adapter
Detent: Term used to describe the PCB connectors mechanical mating strength or hold on the bullet adapter
Blindmate: A design term used to describe the ability to mate the system without seeing the mating PCB connectors. Blindmate assembly typically requires generous manufacturing tolerance and high-float misalignment correction.
