Cable Assembly Solutions
Amphenol RF offers custom cable assembly solutions designed to meet the specific requirements of your application. With a wide selection of connectors, cable types and configurations, our engineering team can create reliable, high-performance assemblies tailored for optimal performance in your industry

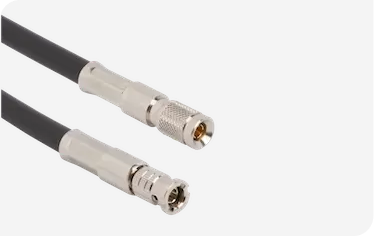

Fixed Length Cable Assemblies
Amphenol RF offers a broad range of standard-length cable assemblies available through distribution, providing quick access to high-quality RF solutions. Featuring popular connector interfaces like SMA, BNC and FAKRA with various cable types, these assemblies deliver reliable performance and durability. Available in lengths from inches to meters, they simplify integration, reduce lead times and support a variety of applications across industries.

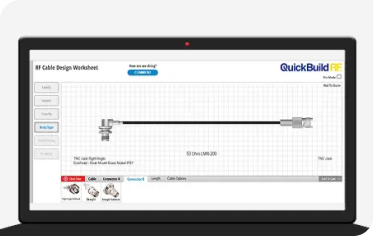

QuickBuild RF Configurator
In addition to standard cable assemblies, Amphenol RF has partnered with Amphenol Custom Cable to launch the QuickBuild RF cable assembly configurator, designed for low-volume, immediate needs. This user-friendly tool allows customers to create custom RF cable assemblies by selecting from a variety of connectors, cables and lengths to meet specific design requirements. QuickBuild RF provides fast turnaround, with assemblies built and shipped in just a few days, ensuring quick delivery for time-sensitive projects. This solution offers flexibility and convenience, making it ideal for low-volume production across multiple industries.

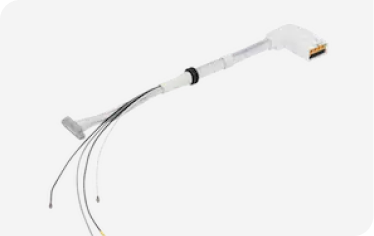

Amphenol RF Custom Engineered Assemblies
Amphenol RF also offers fully custom solutions, where our experienced application engineers collaborate directly with customers to develop tailored RF interconnect solutions to meet their unique requirements. From custom design and prototyping to comprehensive testing and validation, Amphenol RF provides end-to-end support to ensure optimal performance and reliability. This service is ideal for complex applications requiring specialized designs, offering customers the flexibility to create solutions that align perfectly with their technical and operational needs.
Choosing the Right Cable Assembly Option
Need help deciding the best cable assembly option for your project? See the comparison chart below.
|
|
Fixed Length Cable Assemblies
|
Quickbuild RF
|
Amphenol RF Custom Solution
|
|---|---|---|---|
| Specifications
|
Pre-made and available for immediate download
|
Dynamically generated based on your design choices
|
Custom drawing prepared by Amphenol RF design engineer
|
| Design Time
|
None
|
In Browser |
A few days
|
| Testing
|
Hi-Pot and Continuity |
Hi-Pot and Continuity |
Hi-Pot, continuity, Return Loss and Insertion Loss Special Requirements |
| Lead-Times
|
Ships from Distributor Inventory
|
Usually ships within 7 Days
|
Standard Amphenol RF Lead-Times Apply
|
| ITAR Option
|
No
|
No
|
Yes
|
| Customization Level
|
None
|
Moderate
|
High
|
| Custom Packaging
|
No
|
No
|
Yes
|
| Engineering Consultation
|
No
|
No
|
Available
|
| Supported Volumes
|
Low
|
Low
|
Med-High
|
| Manufacturing Locations
|
Mexico or China
(Part number dependent) |
Tampa, FL
(Amphenol Custom Cable Facility) |
Mexico, China or Vietnam
|
Custom Solutions
Amphenol RF specializes in custom interconnect designs engineered to meet unique application-specific requirements. Click through each solution to learn how our engineering expertise and manufacturing capabilities deliver performance, reliability and innovation for your
next design.
next design.
