Frequency Range Chart
The radio spectrum is the portion of the electromagnetic spectrum spanning 3 kHz to 300 GHz and supporting radio, wireless and telecom systems. Amphenol RF interconnects operate across high and extremely high frequencies, with most products designed for the super high and microwave ranges.
| Frequency
|
Designation
|
Abbreviation
|
|---|---|---|
| 3 - 30 Hz
|
Extremely low frequency
|
ELF
|
| 30 - 300 Hz
|
Super low frequency
|
SLF
|
| 300 - 3000 Hz
|
Ultra low frequency
|
ULF
|
| 3 - 30 kHz
|
Very low frequency
|
VLF |
| 30 - 300 kHz
|
Low frequency
|
LF
|
| 300 kHz - 3 MHz
|
Medium frequency
|
MF
|
| 3 - 30 MHz
|
High frequency
|
HF
|
| 30 - 300 MHz
|
Very high frequency
|
VHF
|
| 300 MHz - 3 GHz
|
Ultra high frequency
|
UHF |
| 3 - 30 GHz
|
Super high frequency
|
SHF
|
| 30 - 300 GHz
|
Extremely high frequency
|
EHF
|
Radio Band Chart as designated by the International Telecommunication Union (ITU)

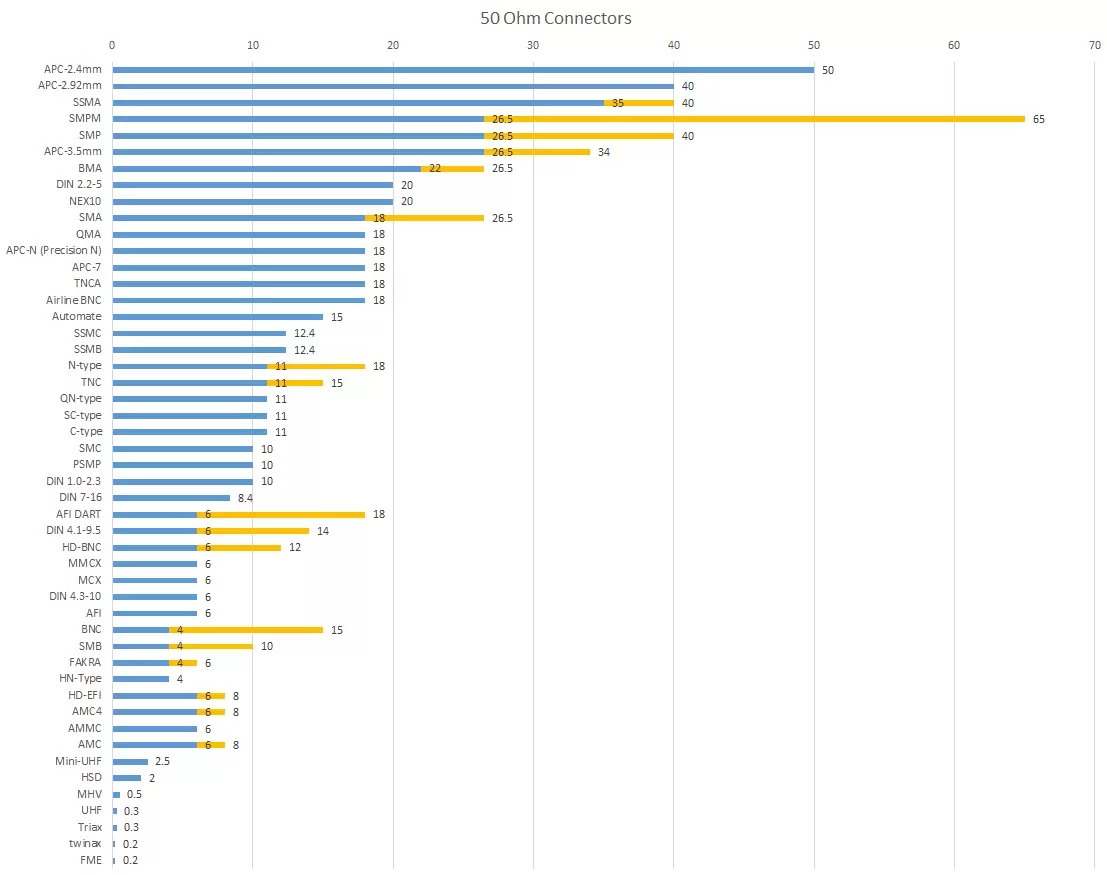

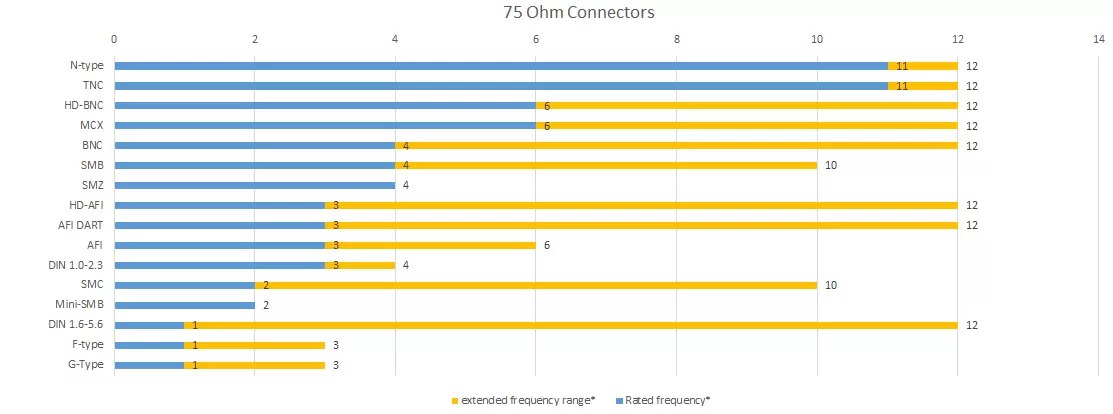

The below chart details our product series and the frequency at which they operate.
