RF Adapters
Versatile, precision-engineered coaxial adapters to connect, convert and protect RF signal paths across all standard interfaces
Overview
Amphenol RF’s RF Adapters deliver industry-standard in-series, between-series and tee configurations engineered for reliable signal transmission. Whether you need to change gender, convert between connector types, or use bulkhead-mounted solutions, our adapters are designed to maintain performance across RF, microwave and data applications.
Every adapter undergoes stringent quality testing to ensure excellent mechanical and electrical integrity. Select ruggedized versions feature IP-rated sealing or non-magnetic construction, tailored for applications ranging from lab instrumentation to harsh outdoor environments. Multiple series support broadcast-grade connectivity and military-approved requirements, making Amphenol RF’s adapters a go-to choice for precision RF link design.
Features and Benefits
- In-Series & Between-Series Compatibility – Wide-ranging pairings including SMA, BNC, TNC, N-Type, AMC, SMP, SMB, RP-SMA, UHF, MHV, SMPM, HN-Type, tee and bulkhead variants.
- Connector-Saver Functionality – Protect valuable equipment by minimizing wear through dedicated gender-change and in-series adapters.
- IP-Rated & Non-Magnetic Options – Waterproof variants (e.g., IP67 bulkhead N-Type) and non-magnetic adapters ideal for sensitive environments.
- Broadcast & Military Availability – 50 Ω and 75 Ω impedance options, including 12G-SDI-compatible BNC adapters, as well as QPL-certified military models.
- Compact & High-Frequency Designs – Miniature formats like AMC for applications up to 6 GHz, as well as SMP/SMPM options for up to 40 GHz.
Key Technical Details
| Specification | Details |
|---|---|
| Impedance | 50 Ω standard; 75 Ω available for BNC and Mini-SMB (broadcast/video variants) |
| Frequency Range | DC to 6 GHz typical; up to 12 GHz for BNC broadcast; SMP/SMPM variants rated to 40 GHz |
| Mating Cycles | Connector-dependent—e.g., SMA ~500; SMP/SMPM less due to push-on design |
| Temperature Range | –40 °C to +85 °C common; may vary with sealed or specialty builds |
| Special Features | IP67-rated bulkhead designs, non-magnetic materials, QPL-approved models, 12G BNC options, tee adapters |
Applications
- Test & Measurement – Preserve instrumentation integrity using gender-changers and connector-saver adapters.
- Broadcast & Video – Maintain 12G-SDI signal fidelity with 75 Ω BNC adapters.
- Telecommunications & Wireless Infrastructure – Use rugged sealed adapters for outdoor base stations.
- Military & Aerospace – Utilize QPL-approved, non-magnetic adapters in high-reliability systems.
- Industrial & Harsh Environments – Water-resistant bulkhead and tee adapters secure signal paths under extreme conditions.
Browse our full portfolio of standard RF Adapters to find the configuration that fits your signal chain. For custom interface solutions, bulkhead builds, or sealed/magnetic versions, contact our RF technical experts to engineer a solution tailored to your specific needs.
Featured Products
All Adapter Products
Related Catalogs
Related Resources
Achieve reliable high-density connections in tight spaces with the new SMP to SMPM adapter
Amphenol RF is pleased to announce the expansion of our coaxial adapter portfolio with a new SMP straight plug to SMPM straight plug adapter offering high-frequency performance in a low-profile package.
Create connections between vehicles and RF interfaces with new FAKRA to SMA adapters
Amphenol RF introduces high-performance FAKRA to SMA adapters into our extensive catalog of RF interconnect products.
Gain high-frequency performance with 2.92 mm to SMA adapters equipped for test systems
Amphenol RF is pleased to introduce 2.92 mm to SMA precision adapters into our robust portfolio of coaxial adapters suited for testing purposes.
2.92 mm Adapter Series Datasheet
The datasheet provides an overview of Amphenol RF’s 2.92 mm adapters. These precision adapters operate up to 40 GHz and feature a rugged, threaded design for reliable performance. They are used in testing, communications, aerospace, and satellite applications and are available in 2.92 mm to 2.4 mm and 2.92 mm to SMA configurations.
Custom RF Solutions
Amphenol RF provides comprehensive custom RF solutions tailored to meet specific design requirements, from concept through mass production.
FAKRA to SMA Adapter Datasheet
The FAKRA to SMA Adapter datasheet describes Amphenol RF’s FAKRA to SMA adapters, which connect FAKRA-based automotive systems to SMA RF devices using a push-on FAKRA and threaded SMA interface for secure, application-specific connections up to 4 GHz. The adapters feature rugged nickel-plated brass bodies, gold-plated contacts, PTFE insulation, and glass-filled nylon housing, providing excellent return loss, high mating durability (500+ cycles), and reliable performance from −65°C to +165°C in automotive, industrial automation, telecom, connected vehicle, and RF test applications.
Product Overview Brochure
Amphenol RF presents a comprehensive, high-performance portfolio of RF interconnect solutions, engineered to meet the rigorous demands of modern communications and electronic systems across industries. With decades of leadership in coaxial technology, this catalog showcases cutting-edge product lines, each designed for precision, reliability, and adaptability.

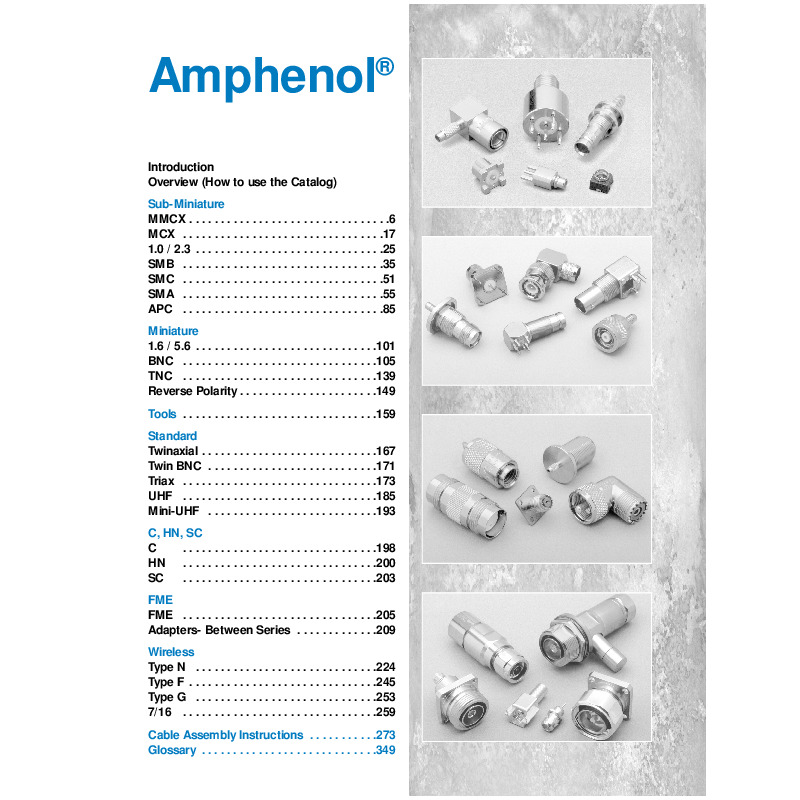

2003 Full Line Product Catalog
