AMC Adapters
Ultra‑miniature snap‑on RF adapters offering versatile transitions between AMC and standard RF interfaces with compact, board‑to‑cable functionality.
Overview
Amphenol RF’s AMC Adapters form a critical link between space‑constrained RF board-level circuitry and industry-standard connectors. Designed for seamless in‑series and between‑series transitions, they include configurations like AMC-to-SMA, AMC-to-TNC, AMC-to-N-Type, AMC-to-MMCX, and probe‑to‑SMA. With snap‑on coupling and compact dimensions, these adapters are perfect for portable wireless devices and embedded RF solutions.
Each adapter features precision PTFE dielectrics, silver-plated bodies, and tight tolerances to maintain signal integrity up to 6 GHz. Bulkhead and flange versions support panel mounting with durability ideal for test, IoT, and telecom applications. AMC adapters leverage Amphenol’s AMC connector ecosystem, which is compatible with Hirose U.FL® and I‑PEX MHF I / MHF I LK® series, enabling broad integration with micro‑coaxial systems.
Features and Benefits
- Snap‑on Ease of Use – Fast, tool‑free mating with secure engagement and repeatable performance.
- Dense Footprint – Ultra‑compact size keeps PCB real estate to a minimum.
- Wide Transition Support – AMC-to-SMA, AMC-to-TNC, AMC-to-MMCX, AMC-to-N-Type, and probe adapters available.
- Panel-Ready Bulkheads – Available in straight bulkhead and 2‑/4‑hole flange mount versions for robust panel integration.
- 50 Ω Performance to 6 GHz – Ensures low VSWR and insertion loss for next‑gen RF designs.
Applications
- IoT & Portable Devices – Ideal for GPS, Bluetooth, and embedded wireless modules using AMC interfaces.
- Wireless Infrastructure – AMC-to-N-Type adapters for test port integration in compact systems.
- Test & Measurement – AMC‑to‑SMA/TNC adapters protect valuable instruments with bulkhead mounting.
- RF Jammer & Security Devices – Snap‑on ease supports field‑replaceable modules.
- Embedded & Wearable Electronics – Compact board-to-system transitions to support miniaturized design goals.
Related Resources
AMC to BNC adapter adds versatility in ultraminiature application designs
Amphenol RF is pleased to announce the expansion of our ultraminiature product portfolio with a new AMC to BNC adapter. This new option for ultraminiature connectivity allows the secure bayonet coupling mechanism featured on the popular BNC interface to be mounted to the outside of a panel.
Secure ultraminiature cable assemblies in high-vibration industrial applications
Amphenol RF is pleased to introduce SMA and TNC to I-PEX's MHF® I LK locking cable assemblies on ultra-flexible 1.13 mm micro-coax cable.
Increase access point capacity with Wi-Fi 6 capable flexible cable assemblies
Amphenol RF is pleased to expand its cable assembly portfolio with reverse polarity (RP) SMA to AMC assemblies on RG-178 cable.
Reverse polarity SMA waterproof and tamper proof cable assemblies create durable option
Amphenol RF is pleased to introduce waterproof IP67 rated and tamper-resistant cable assemblies designed using 1.13 mm micro coax cable.
Increase access point capacity with Wi-Fi 6 capable cable assemblies
Amphenol RF is pleased to expand our cable assembly portfolio with additional SMA to AMC configurations on 1.13 and 1.32 mm micro-coax cables.
Withstand high-temperature environments with new SMA to AMC assemblies
Amphenol RF is pleased to announce the expansion of our popular SMA to AMC cable assembly series.
FAKRA Plug to MHF I LK Cable Assemblies
Amphenol RF’s Locking FAKRA to MHF I LK cable assemblies deliver robust, high-frequency performance with a secure locking mechanism, engineered specifically for environments exposed to continuous vibration and motion. Supporting frequencies up to 6 GHz, these assemblies ensure stable and reliable electrical connections, making them ideal for cutting-edge applications in drones, smart cabins, ADAS, driver monitoring, and RFID systems.
Locking SMA Cable Assemblies Datasheet
Amphenol RF's Locking SMA Cable Assemblies are designed for high-frequency applications up to 6 GHz, featuring a threaded SMA connector with a locking mechanism that requires 20N of force to prevent accidental disconnection. Built with gold-plated brass SMA connectors and phosphor bronze MHF I LK locking connectors, these assemblies ensure durability and resistance to harsh environments. The easily routable 1.13 mm cable allows for flexible installation in compact spaces, making them ideal for drones, wireless communications, robotics, IoT, and industrial equipment. Available in standard lengths from 50 to 400 mm, with custom lengths on request, they provide reliable performance in demanding applications.
RP-SMA to AMC4 Cable Assemblies Datasheet
Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.
FAKRA to AMC Cable Assemblies
The Amphenol RF FAKRA to AMC Cable Assemblies datasheet highlights fixed-length assemblies designed for automotive and IoT applications. These IP67-rated assemblies combine FAKRA connectors with micro-miniature AMC connectors on 1.37 mm ultra-flexible coax cable, providing compact and sealed solutions ideal for DSRC, V2X, V2V technologies, 360-degree cameras, ADAS, smart boxes, and remote control access.

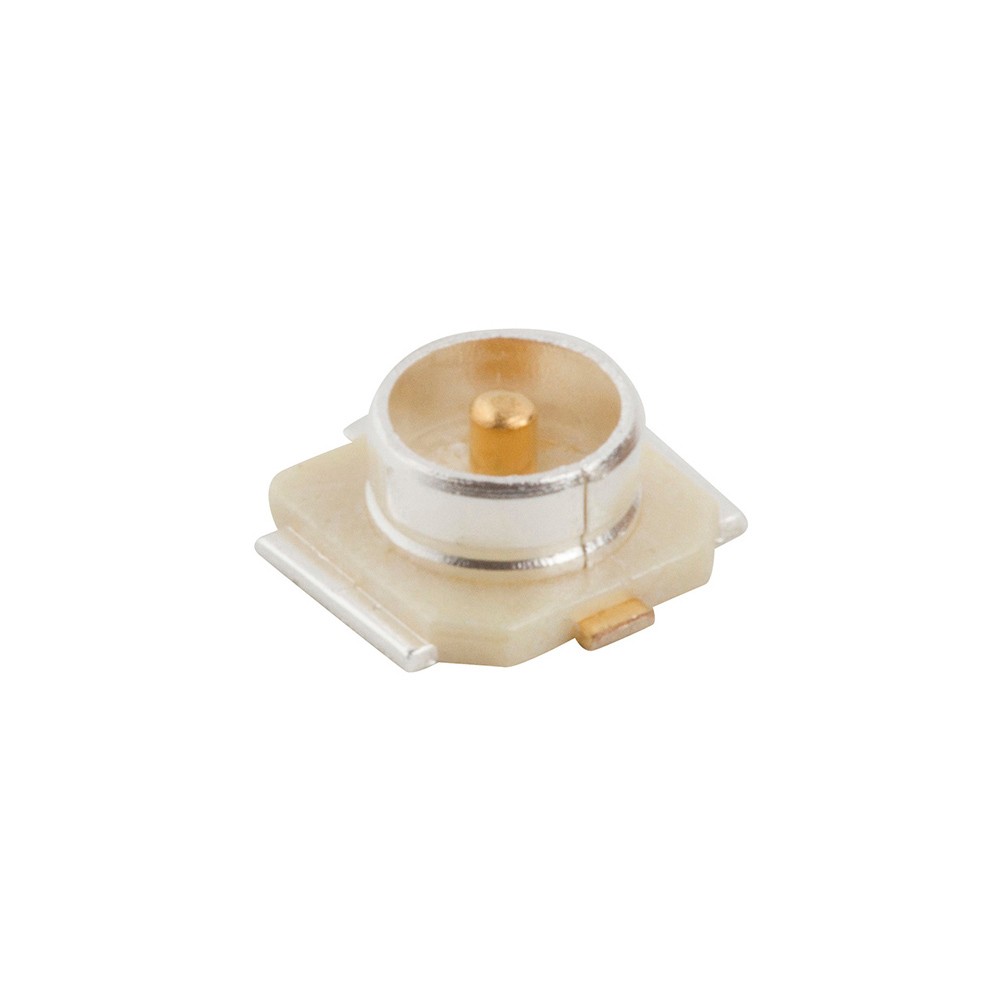

AMC Connector Series
