BNC Adapters
Versatile BNC adapters delivering high-performance connectivity for both 50 Ω RF systems and 75 Ω broadcast applications.
Overview
Amphenol RF’s BNC adapters provide a comprehensive lineup of in-series and between-series options—including straight and right-angle versions—to support diverse interface conversions. With both 50 Ω and 75 Ω impedance offerings, these adapters support system matching from DC all the way to 4 GHz for standard RF, and up to 12 GHz for broadcast/video applications.

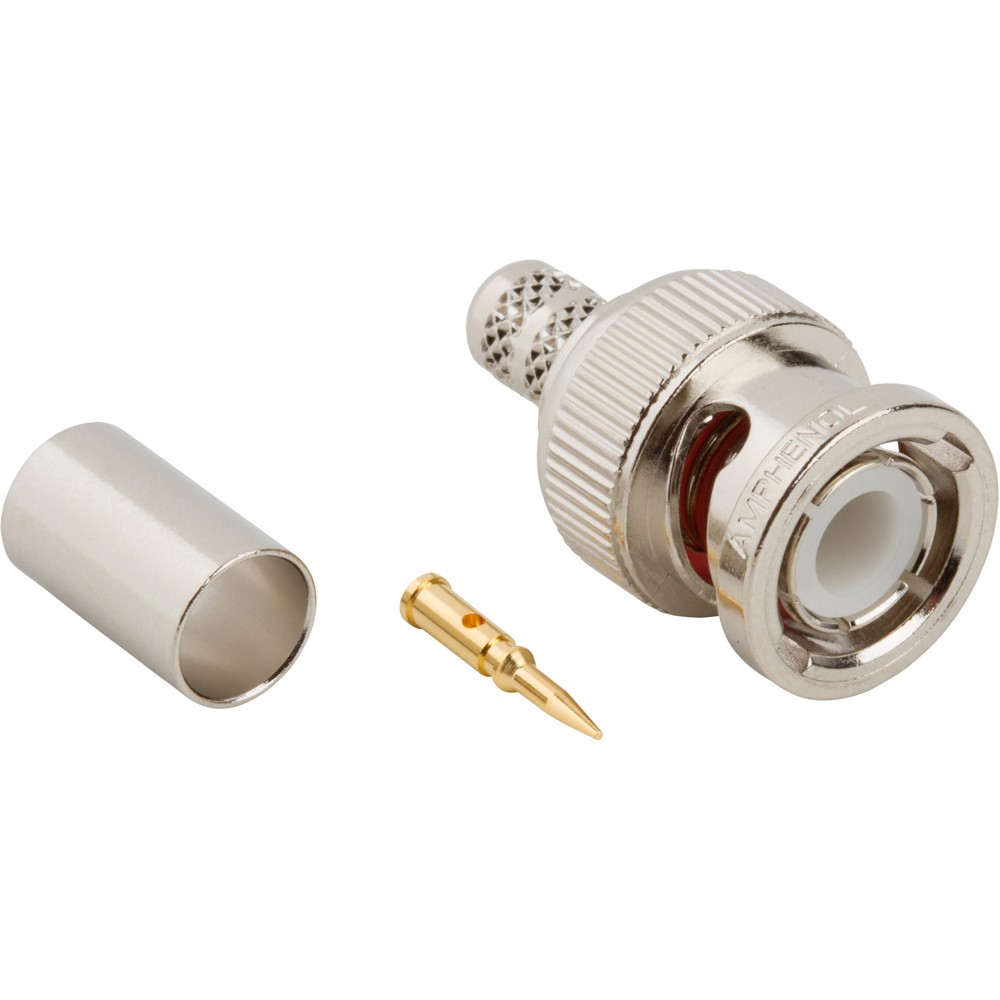

Constructed for both lab and field use, each adapter features precision-machined brass bodies with reliable bayonet coupling and plated contacts. Bulkhead, flange, and tee configurations offer flexible mounting options, while in-series adapters double as connector savers to protect critical cable assemblies in test and measurement setups.
Features and Benefits
- Dual-Impedance Options – 50 Ω for RF/metered systems and 75 Ω optimized for broadcast/video (up to 12 GHz).
- Mounting Flexibility – Straight, right-angle, bulkhead, and 4-hole flange styles allow seamless panel integration.
- Bayonet Coupling – Quick quarter-turn mating provides secure, repeatable connections in dense setups.
- Connector Saver Protection – In-series BNC adapters prevent wear on expensive cables and test instruments.
Applications
- Test & Measurement – Ideal for VNAs, oscilloscopes, and signal generators where connector longevity is vital.
- Broadcast & 4K/12G-SDI Video – Maintains signal clarity in high-bandwidth production environments.
- Telecom & Lab Setups – Flexible mounting and gender-change adaptors for rapid reconfiguration.
- Industrial & OEM Panels – Rugged panel-mount adapters support compact, dense rack installations.
- Connector Protection Strategy – In-series adapters safeguard valuable cable assemblies during repeated mating cycles.
