HD-AFI Adapters

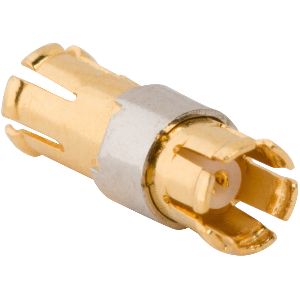

Amphenol RF’s HD‑AFI adapters convert HD-AFI interfaces to industry-standard RF connectors in both in-series and between-series formats, enabling seamless integration into board-to-board and board-to-cable designs. These compact adapters retain the high-performance characteristics of the HD-AFI family while extending connectivity to conventional interfaces.

Developed for rugged, flexible RF systems, HD‑AFI supports 75 Ω operations up to 18 GHz. The proprietary two-piece design provides significant radial (1.32 mm) and axial (2.0 mm) mating float, ideal for blind‑mate applications with tight tolerances. These adapters are available in inline jack‑to‑jack formats as well as between-series types like HD-BNC.

Features and Benefits

• High-Frequency Performance – Supports 75 Ω connections up to 18 GHz in HD‑AFI format.
• Blind-Mate Friendly – Offers ±1.32 mm radial and ±2.0 mm axial alignment tolerances for easy mating.
• Flexible Configurations – Available in in-series HD-AFI and between-series adapters (e.g., HD-AFI to HD-BNC).
• Compact Footprint – Ideal for space-limited board stacking and modular system layouts.
• Connector Protection – In-series adapters serve as connector savers to extend board or cable longevity

Applications

• Board-to-Board RF Systems – High-density HD‑AFI interconnects for modular electronics.
• Blind-Mate Modules – Ideal for systems requiring board replacement or docking.
• Test & RF Instrumentation – Enables consistent signal path alignment over repeated mating cycles.
• Hybrid Cable‑to‑Board Connections – Between-series adapters (e.g., HD-AFI to HD-BNC) allow integration with external RF systems.
