SMA Adapters
Versatile, high-performance adapters engineered for precision RF signal transmission in demanding applications.
Overview
Amphenol RF’s SMA adapters are engineered to deliver consistent electrical performance and mechanical durability in a wide range of RF systems. These subminiature coaxial adapters are ideal for high-frequency signal routing, with a threaded coupling mechanism that ensures secure, vibration-resistant connections. SMA adapters are available in both in-series and between-series configurations, offering maximum design flexibility.
Manufactured with precision-machined components and a focus on quality, these adapters are a reliable choice for test and measurement, antennas, broadband, and wireless infrastructure. Standard options are available in straight and right-angle designs with various jack and plug interfaces to accommodate different system requirements.
Features and Benefits
- Secure threaded coupling ensures excellent vibration resistance
- Available in in-series and between-series configurations
- High-frequency performance with low VSWR
- Suitable for compact, high-density system designs
Key Technical Details
- 50 Ω impedance for optimal signal integrity
- Operating frequency up to 18 GHz (cable dependent)
- Precision-machined brass and stainless steel construction
- Available in straight and right-angle orientations
Applications
- Test and Measurement – Provides accurate signal transmission in lab-grade setups.
- Antennas – Facilitates reliable connections in RF communication systems.
- Wireless Infrastructure – Supports high-frequency needs of base stations and repeaters.
- Broadband Systems – Ensures stable performance in data and signal distribution networks.
All SMA Adapter Categories
Related Resources
Anti-torque design prevents damage during installation
Amphenol RF is pleased to announce the expansion of our popular SMA product series with additional anti-torque straight solder plug connectors.
Expand automotive test capabilities with low loss SMA connectors
Amphenol RF is pleased to announce the expansion of its SMA product series with 50 ohm connectors optimized for low loss TFC-302LL cable.
Gain high-frequency connectivity and enhanced board stability with new SMA right-angle PCB jack
Amphenol RF is pleased to introduce a new SMA Right-Angle PCB jack into our broad portfolio of SMA connectors.
SMA extension cable assemblies deliver low loss connectivity for automotive and industrial designs
Amphenol RF is pleased to introduce SMA straight plug to straight plug cable assemblies into our expansive interconnect portfolio.
Create connections between vehicles and RF interfaces with new FAKRA to SMA adapters
Amphenol RF introduces high-performance FAKRA to SMA adapters into our extensive catalog of RF interconnect products.
Avoid frequency loss in communication systems with SMA cable assemblies
Amphenol RF is pleased to announce the expansion of our pre-configured cable assembly portfolio with SMA assemblies on low loss LMR-100A cable, manufactured by our sister division, Amphenol Times Microwave.
Secure ultraminiature cable assemblies in high-vibration industrial applications
Amphenol RF is pleased to introduce SMA and TNC to I-PEX's MHF® I LK locking cable assemblies on ultra-flexible 1.13 mm micro-coax cable.
SMA connectors engineered for 0.81 mm and 1.32 mm cable offer lasting and routable RF solutions
Amphenol RF expands its SMA cable assembly portfolio with options compatible with 0.81 mm and 1.32 mm, offering engineers easily-routable solutions for demanding applications.

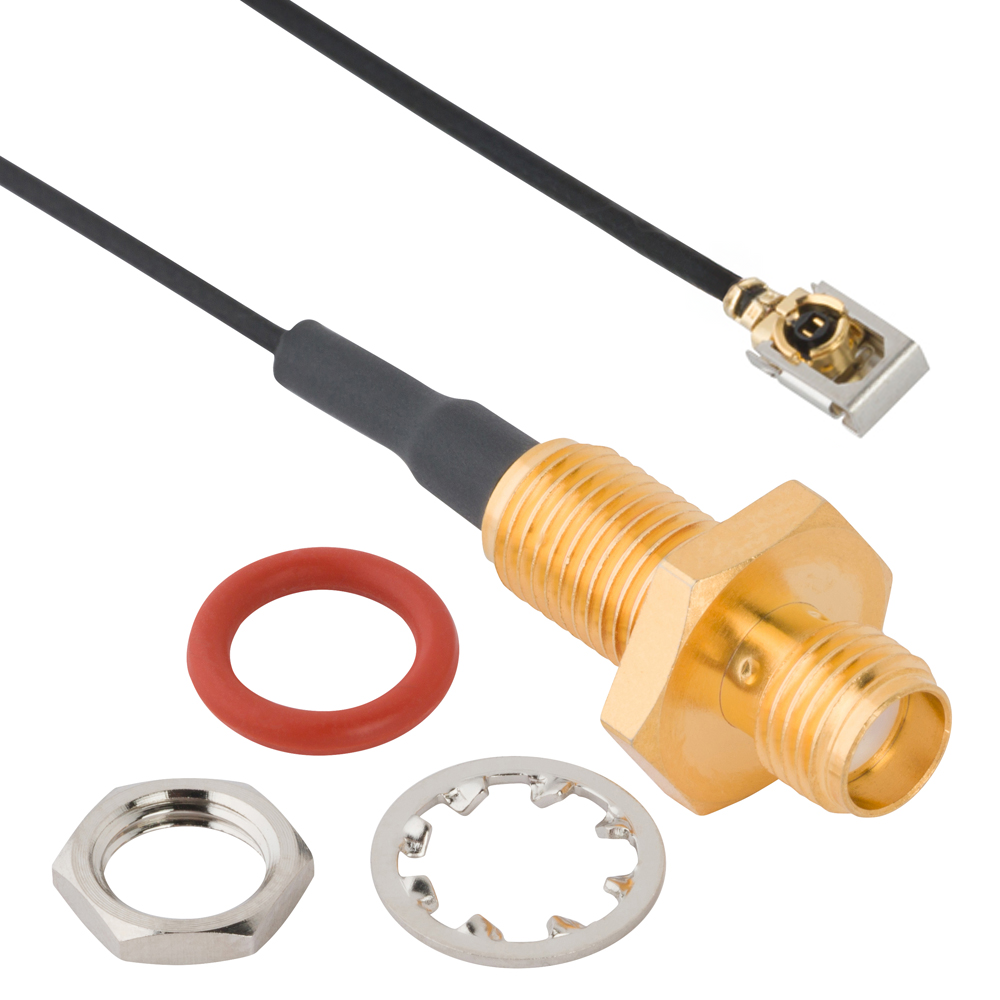

Lock in a secure connection in vibration-prone environments with locking connector SMA cable assemblies
Amphenol RF is excited to announce the expansion of our locking cable assembly portfolio with configurations utilizing high-frequency SMA connectors.
Face the storm with RP-SMA jack to AMC4 plug assemblies offering weatherproof connectivity
Amphenol RF is pleased to introduce the new RP-SMA bulkhead jack to AMC4 plug micro-miniature cable assembly into our robust and broad portfolio of fixed-length cable assemblies.
Handle the heat: high-frequency SMA cable assemblies on RG-188 cable for extreme temperature applications
Amphenol RF is pleased to introduce the new SMA to SMA plug RG-188 cable assembly into our extensive cable assembly portfolio.
High-performance and flexibility with new SMA to SMP cable assembly configuration
Amphenol RF is pleased to introduce a new configuration of SMA to SMP assemblies to our expansive line of fixed-length cable assemblies.
Utilize waterproof reverse polarity SMA bulkheads in demanding environments
Amphenol RF is pleased to expand our versatile SMA product portfolio with additional reverse polarity bulkhead jacks.
Broaden range of applications with right-angle SMA plugs for micro-coax cable
Amphenol RF is pleased to expand our popular SMA product family with reverse polarity right-angle plug configurations designed to accommodate a variety of flexible micro-coax cable types.
Ensure reliable performance with SMA interconnect designed for extreme exposure
Amphenol RF is pleased to expand our line of extreme exposure RF interconnect with an additional SMA bulkhead jack.
Stay under the radar with black plated RF connectors for covert applications
Amphenol RF is pleased to expand our line of black plated connectors with SMA and N-Type configurations designed for low loss LMR cable types.
.png)
High-frequency SMA connectors reduce frequency range limitations
Amphenol RF is pleased to announce the expansion of its high frequency SMA connector series with extended frequency cable mount connectors supporting up to 34 GHz.
Increase access point capacity with Wi-Fi 6 capable flexible cable assemblies
Amphenol RF is pleased to expand its cable assembly portfolio with reverse polarity (RP) SMA to AMC assemblies on RG-178 cable.
Develop and expand connectivity options for RFID and industrial applications
Amphenol RF is pleased to offer cable assembly configurations featuring popular RF interfaces that are uniquely engineered to support RFID applications.
Secure systems in demanding environments with robust IP67 SMA connectors
Amphenol RF is pleased to announce the expansion of our popular SMA product series with additional waterproof IP67 options.
High performance SMA adapter improves VSWR performance
Amphenol RF is pleased to expand our robust adapter portfolio with a high-performance right-angle SMA adapter.
Expand outside safely with IP67 SMA bulkhead cable assemblies
Amphenol RF is pleased to expand our cable assembly portfolio with additional pre-configured SMA options to support designs that require a more ruggedized, waterproof solution.
Achieve uninterrupted performance with waterproof front-mount RP-SMA connectors
Amphenol RF is pleased to expand our versatile SMA product portfolio with additional reverse polarity front mount bulkhead jacks.
SMA bulkhead jacks expand options for micro-coax cable types
Amphenol RF is pleased to announce the expansion of our SMA connector series with additional cable mount jacks.
Waterproof sealed SMA connectors protect systems from external elements
Amphenol RF is pleased to announce the expansion of our IP67 SMA connector series with a new bulkhead jack configuration.
Opt for connectors designed for micro-coax cable types in applications with limited space
Amphenol RF is pleased to expand our portfolio of ultraminiature products with the introduction of additional SMA jack configurations designed for various micro-coax cable types.
Increase access point capacity with Wi-Fi 6 capable cable assemblies
Amphenol RF is pleased to expand our cable assembly portfolio with additional SMA to AMC configurations on 1.13 and 1.32 mm micro-coax cables.
Ensure reliable performance with new SMA panel-mount receptacles for microwave components
Amphenol RF is pleased to expand our high-frequency SMA panel mount receptacle series with an additional 2-hole flange configuration.
Add security and flexibility to Wi-Fi devices with new RP-SMA jacks
Amphenol RF is pleased to announce the expansion of our popular SMA connector series with additional reverse polarity (RP) configurations.
Design for tighter spaces with SMA to AMC cable assemblies
Amphenol RF is pleased to announce the expansion of our popular SMA to AMC cable assembly series.
Protect the integrity of your system with waterproof sealed SMA interconnect
Amphenol RF is proud to announce the expansion of our IP-rated waterproof sealed solutions with additional IP67 SMA connector options.
Tamper-resistant SMA bulkhead jacks for flexible micro-coax cables
Amphenol RF is pleased to announce the expansion of our SMA panel mount product series with additional front mount bulkhead jacks.
Safeguard your system with compact waterproof IP67 SMA connectors
Amphenol RF is pleased to expand our selection of waterproof SMA connectors with additional front mount bulkhead jack options.
Gain high-frequency performance with 2.92 mm to SMA adapters equipped for test systems
Amphenol RF is pleased to introduce 2.92 mm to SMA precision adapters into our robust portfolio of coaxial adapters suited for testing purposes.
Secure IP67-Rated MMCX Cable Assemblies For Demanding Wireless Environments
Amphenol RF expands its pre-configured cable assembly portfolio with new MMCX assemblies engineered to provide dependable connectivity for wireless communication modules.
2.92 mm Adapter Series Datasheet
The datasheet provides an overview of Amphenol RF’s 2.92 mm adapters. These precision adapters operate up to 40 GHz and feature a rugged, threaded design for reliable performance. They are used in testing, communications, aerospace, and satellite applications and are available in 2.92 mm to 2.4 mm and 2.92 mm to SMA configurations.
Robotaxi Solutions Overview
The Robotaxi Solutions Overview Flyer provides a comprehensive look at Amphenol RF’s advanced RF interconnect solutions tailored for the rapidly growing robotaxi industry. These solutions enable seamless vehicle-to-everything (V2X) communication, precision navigation, and robust data transmission, ensuring the safe and efficient operation of autonomous taxi fleets.
Smart Cabin Overview
The Smart Cabin Overview Flyer provides insight on how Amphenol RF is driving the evolution of smart cabins with high-performance RF interconnect solutions. Their products power advanced infotainment, intuitive HMIs, biometric security, wireless charging, and connected mobility. Designed for durability, they offer vibration-resistant, waterproof solutions and custom interconnects for RF, signal, and power. Amphenol RF is shaping the future of intelligent, connected mobility.
SMA Extension Cable Assemblies Datasheet
The Amphenol RF SMA Extension Cable Assemblies datasheet highlights 50 ohm assemblies on TFC 302LL cable, suitable for frequencies from DC to 15 GHz. These extended length assemblies are ideal for applications that require flexibility and signal integrity.
FAKRA to SMA Adapter Datasheet
The FAKRA to SMA Adapter datasheet describes Amphenol RF’s FAKRA to SMA adapters, which connect FAKRA-based automotive systems to SMA RF devices using a push-on FAKRA and threaded SMA interface for secure, application-specific connections up to 4 GHz. The adapters feature rugged nickel-plated brass bodies, gold-plated contacts, PTFE insulation, and glass-filled nylon housing, providing excellent return loss, high mating durability (500+ cycles), and reliable performance from −65°C to +165°C in automotive, industrial automation, telecom, connected vehicle, and RF test applications.
IP67 SMA Cable Assemblies Datasheet
Amphenol RF's IP67 SMA Bulkhead Cable Assemblies feature pre-configured 50 ohm assemblies on flexible RG-316 coaxial cable, designed for both indoor and outdoor applications. These assemblies, available in various lengths, offer secure locking with threaded connectors, providing reliable performance up to 3 GHz, and are ideal for industrial equipment, antennas, and military communications.
Locking SMA Cable Assemblies Datasheet
Amphenol RF's Locking SMA Cable Assemblies are designed for high-frequency applications up to 6 GHz, featuring a threaded SMA connector with a locking mechanism that requires 20N of force to prevent accidental disconnection. Built with gold-plated brass SMA connectors and phosphor bronze MHF I LK locking connectors, these assemblies ensure durability and resistance to harsh environments. The easily routable 1.13 mm cable allows for flexible installation in compact spaces, making them ideal for drones, wireless communications, robotics, IoT, and industrial equipment. Available in standard lengths from 50 to 400 mm, with custom lengths on request, they provide reliable performance in demanding applications.
RP-SMA to AMC4 Cable Assemblies Datasheet
Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.
SMA Cable Assemblies on RG-188 Datasheet
The SMA Cable Assemblies on RG-188 offer reliable high-frequency transmission up to 3 GHz with low loss, low VSWR, and a rugged, threaded coupling for secure installation. Designed for aerospace, industrial, medical, and communication applications, they use flexible, high-shielding RG-188 cable that withstands temperatures up to 205°C. Available in various plug configurations and lengths from 6 inches to 2 meters, they feature a 50Ω impedance, 1000 VRMS dielectric withstanding voltage, and a 500-cycle mating durability. Made with gold-plated brass connectors and PTFE insulation, they operate from -55°C to 165°C and meet RoHS standards.
4.3-10 Adapters
Amphenol RF introduces a comprehensive line of 4.3/10 low PIM adapters, expanding their low PIM adapter product family. These adapters are designed for space-restricted, high-density, and weight-sensitive applications, offering superior PIM performance and reduced mating torque compared to 7/16 DIN connectors, with in-series and between-series configurations available.
AMMC Connector Series
Amphenol Micro Miniature Coaxial (AMMC) connectors are designed for portable and mobile devices, featuring a low profile with a 1.4 mm mated height and a 2 mm x 2 mm footprint. These connectors support high-frequency transmission from DC to 6 GHz, offer easy snap-on/off mating, and are compatible with Hirose W.FL and IPEX MHF III series, making them ideal for applications such as antennas, Bluetooth, GPS, WLAN, and cellular devices.
HD-EFI Connector Series
The HD-EFI product series by Amphenol RF offers micro-miniature interfaces designed for high-performance applications with a frequency range from DC to 6 GHz. These 50 ohm products are ideal for board-to-board applications, featuring versatile PCB mounts and bullet lengths, and providing up to 1.4 mm axial and radial float. HD-EFI connectors are available in various configurations, including through-hole, surface mount, edge launch, and thread-in, and support blind mating with crash-proof designs.
ATC-PS Precision Test Cables
The ATC-PS cable assemblies cutsheet provides info for ATC-PS cable assemblies, outlining their technical specifications, features, and applications. It provides precise information on the design and performance characteristics of these cable assemblies, including impedance, frequency range, insertion loss, and durability. The document highlights the materials used, ensuring reliability and high performance in demanding environments. Additionally, it specifies the industries and applications these cable assemblies are designed for, demonstrating their suitability for various high-frequency and precision connectivity needs.
High Frequency SMA Connector Series
The Amphenol RF High-Frequency SMA Connectors Cut Sheet presents a premium line of high-performance SMA connectors engineered for exceptional signal integrity at high frequencies. Designed to support applications up to 27 GHz and beyond, these connectors deliver low VSWR, minimal insertion loss, and superior durability, making them ideal for 5G, aerospace, defense, and high-speed communication systems.
Connectors Optimized for Low Loss Cables
The "Connectors Optimized for Low Loss Cables" guide by Amphenol RF features redesigned SMA, TNC, and N-Type connectors specifically tailored for Low Loss cables. These connectors, which include straight and right-angle plugs and jacks, provide enhanced shielding, improved grounding, and low signal loss for applications requiring high reliability, such as smart city infrastructure and IoT antenna systems. They support frequencies up to 12.4 GHz for SMA and 6 GHz for TNC and N-Type connectors, ensuring consistent electrical performance and quick, secure assembly with standard hex crimp tooling.
SMA Cable Assemblies on LMR Cable
The Amphenol RF SMA cable assemblies cut sheet details pre-configured assemblies using LMR-195 and LMR-240 cables, ideal for high-performance applications such as base stations, antennas, and telecommunication devices. These assemblies, featuring SMA connectors and Times Microwave LMR cables, operate from DC to 6 GHz, offering lower loss and superior electrical performance with rugged construction. Configurations include straight plug, right-angle plug, and bulkhead jack, available in various lengths and custom options upon request.
SMA Panel Mount Receptacles
The Amphenol RF SMA Panel Mount Receptacles cut sheet details high-performance connectors supporting frequencies from DC to 18 GHz. These stainless steel receptacles are available in multiple panel mounting configurations, including 2 and 4-hole flanges, with various termination options such as post contacts, solder cups, and tab contacts. The connectors are suitable for applications like RF amplifiers, microwave filters, and power dividers, offering excellent VSWR performance and robust mechanical construction.
SMA Quick Connect Adapter Series
The Amphenol RF SMA Quick Connect Adapter Cut Sheet highlights a high-performance, rapid-mating SMA adapter designed for efficiency and reliability in RF testing and system integration. This adapter enables quick, secure connections without the need for threading, significantly reducing installation time and improving workflow efficiency. Engineered for low-loss signal transmission and durability, it is ideal for laboratory testing, production environments, and high-frequency applications.
SMA to AMC Cable Assemblies
The Amphenol RF SMA to AMC Cable Assemblies cut sheet outlines both IP-67 and non-IP-67 fixed length assemblies designed for various applications. These assemblies feature improved design SMA connectors, offering space-efficient and economical improvements, with support for thicker panels. They are ideal for WLAN, M2M communications, and outdoor equipment, and are available in different configurations with micro-coaxial cables in lengths from 50 mm to 300 mm.
RP-SMA Cable Assemblies
Amphenol RF's RP-SMA Cable Assemblies feature gold-plated brass bodies and support up to 500 mating cycles, designed for applications requiring low-loss antenna connections. These fixed length assemblies on RG-58, RG-174, and RG-316 cables offer reliable performance up to 5 GHz, ideal for laboratory RF test and measurement, wireless LAN antennas, land mobile radio, and cellular communication systems.
SMA Connectors for TFC-302LL
Amphenol RF's SMA Connectors for Automotive Cable are compact, lightweight, and optimized for low loss cables, offering reliable performance up to 6 GHz. These connectors are ideal for applications requiring vibration resistance and low return loss, such as automotive testing, antennas, GPS, and V2V communication, and are available in bulkhead jack, straight, and right-angle plug configurations.
Anti-Torque SMA Connector Series
Amphenol RF's Anti-Torque SMA Connector Series offers high-frequency connectors designed for semi-rigid cables, supporting applications up to 26.5 GHz with SMA jacks and up to 34 GHz with 3.5 mm jack connectors. These connectors feature a rugged anti-torque body to prevent damage during installation and are ideal for test and measurement equipment, 5G wireless infrastructure, IoT, and industrial IoT applications. Constructed from brass or stainless steel with gold plating, they support a minimum of 500 mating cycles and ensure reliable performance with minimal reflections.
High Performance SMA Adapter Series
The Amphenol RF High Performance SMA Adapter series offers low-profile, cost-saving adapters with improved VSWR performance, operating up to 22 GHz. These adapters, featuring gold-plated brass bodies and beryllium copper contacts, are ideal for applications in SATCOM, radar, antennas, and wireless testing.
FAKRA to SMA Cable Assemblies
The Amphenol RF FAKRA to SMA Cable Assemblies Datasheet details pre-configured 50 ohm cable assemblies available in various lengths, designed for automotive and industrial applications such as ADAS, GPS, RFID, and wireless infrastructure. These assemblies feature flexible cables and high-quality connectors, providing reliable performance up to 3 GHz without the need for additional tooling.
SMA Panel Mount Bulkhead Jacks
Amphenol RF's SMA & RP-SMA Front Mount Bulkhead Jacks offer reliable electrical performance up to 6 GHz and feature a threaded coupling mechanism for secure mating. These 50 ohm connectors are ideal for applications with space constraints, such as antennas, base stations, drones, and test and measurement equipment, with options available for ultraminiature micro-coax cables and IP67-rated versions for added environmental protection.
SMA to AMC Ultraminiature Cable Assemblies
Amphenol RF's SMA to AMC Cable Assemblies feature reliable electrical performance up to 9 GHz, with threaded coupling for secure mating and vibration resistance. Available in IP67 and non-IP67 configurations, these 50 ohm assemblies are ideal for applications such as antennas, base stations, drones, and industrial automation, providing a compact and space-efficient solution with additional protection for harsh environments.
IP67 SMA & RP-SMA Panel Mount Bulkhead Jacks
Amphenol RF's IP67 SMA Front Mount Bulkhead Jacks offer waterproof, tamper-resistant RF interconnect solutions with reliable electrical performance up to 6 GHz. Designed for applications like antennas, base stations, and industrial automation, these connectors feature a threaded coupling mechanism for secure mating and are ideal for use in space-constrained environments.
SMA & RP-SMA Crimp Connectors
Amphenol RF's SMA and RP-SMA Straight Crimp Jacks provide reliable electrical performance up to 6 GHz, featuring a threaded coupling mechanism for secure mating and vibration resistance. These 50 ohm connectors are ideal for applications with space constraints, such as antennas, base stations, drones, and test and measurement equipment, and are available for various micro-coax cable types.
AUTOMATE Type A to Mini-FAKRA to SMA Cable Assemblies
Amphenol RF's AUTOMATE Mini-FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four SMA plugs or jacks, designed on flexible TFC-302LL cable. These assemblies provide up to 80% space savings compared to traditional FAKRA connectors and support high-performance up to 9 GHz. Ideal for automotive applications like 360-degree cameras and ADAS, as well as antennas, handheld devices, and drones, they offer secure, low-engagement force connections with a compact, modular design and universal Z color coding.
Nex10 Adapter Series
Amphenol RF's Nex10 Adapter Series features ruggedized, compact 50 ohm adapters offering reliable low PIM performance up to 6 GHz. These lightweight, threaded adapters are ideal for high-density applications such as antennas, small cells, distributed antenna systems (DAS), MIMO, and 5G/LTE, designed to reduce interference and maintain network quality.
RP-SMA to AMC Ultraminiature Cable Assemblies
Amphenol RF's RP-SMA to AMC Cable Assemblies offer reliable electrical performance up to 9 GHz, featuring threaded coupling for secure mating and vibration resistance. These assemblies are available in both IP67 and non-IP67 configurations, ideal for applications such as antennas, base stations, drones, and industrial automation, providing a space-efficient solution with a small footprint and low profile.
MHF I LK Ultraminiature Cable Assemblies
Amphenol RF's Locking MHF I Cable Assemblies feature a patented locking system for tamper-resistant, vibration-resistant performance, available with waterproof IP67 options. These 50 ohm assemblies are ideal for applications such as drones, GPS, and industrial automation, offering reliable electrical performance up to 6 GHz with configurations including SMA, RP-SMA, TNC, and RP-TNC connectors.
Smart Grid Solutions
Amphenol RF's SMA to AMC Cable Assemblies feature reliable electrical performance up to 9 GHz, with threaded coupling for secure mating and vibration resistance. Available in IP67 and non-IP67 configurations, these 50 ohm assemblies are ideal for applications such as antennas, base stations, drones, and industrial automation, providing a compact and space-efficient solution with additional protection for harsh environments.
IoT Antennas in Smart Homes Infographic
The infographic "Navigating Connectivity in Smart Homes" by Amphenol RF showcases various antenna types and their applications in smart home environments.
Home Automation Solutions
The Amphenol RF Home Automation Solutions Overview highlights RF interconnect solutions designed for smart home applications. It showcases high-performance connectors and cable assemblies that enable reliable wireless connectivity for home security, smart lighting, and automation systems.
Amphenol RF Locking MHF 4 Ultraminiature Cable Assemblies Datasheet
The Amphenol RF Locking MHF 4 Ultraminiature Cable Assemblies datasheet describes pre-configured, vibration-resistant 50-ohm cable assemblies featuring the I-PEX MHF® 4 LK locking connector. These ultraminiature assemblies are designed with tamper-resistant, waterproof (IP67) options and utilize 1.37 mm micro-coax cable paired with SMA or RP-SMA connectors for reliable electrical performance in rugged environments. Ideal for continuous shock and vibration applications, they are used in UAVs, IoT devices, military systems, smart agricultural equipment, and communication networks. The datasheet also outlines available standard lengths (50–400 mm) and key specifications, including a frequency range up to 9 GHz, 500 mating cycles minimum, and materials such as gold-plated brass and PTFE insulation.

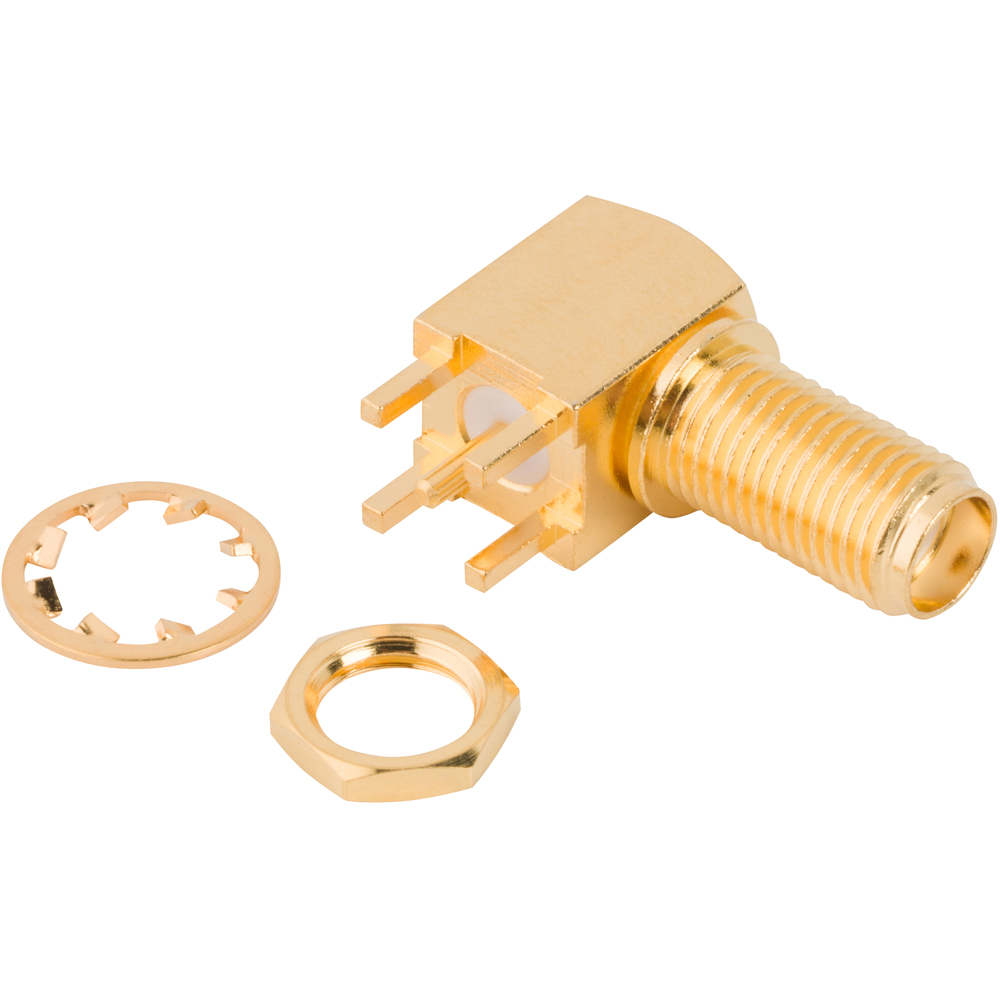

Amphenol RF PFAS-Free SMA Connectors
Amphenol RF’s PFAS-free SMA connectors and adapters, engineered with eco-friendly PEEK insulators as drop-in replacements for traditional PTFE-based designs. This product line delivers comparable or improved performance, enhanced thermal stability, and full compatibility with existing SMA solutions, offering a sustainable RF interconnect option for demanding applications.
Amphenol RF MCX Cable Assemblies RG-174 Wireless Communication Modules Datasheet
The Amphenol RF MCX Cable Assemblies Data Sheet highlights between-series board-to-panel cable solutions designed for wireless communication modules. These assemblies combine compact MCX interfaces with rugged, sealed bulkhead connectors to enable reliable RF connectivity in space-constrained and environmentally exposed applications.
Amphenol RF MMCX Cable Assemblies RG-174 for Wireless Modules
The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.
Component360: Amphenol RF SMA Connectors
RF devices are an integral part of everyday life and are instrumental to the operation of base stations antennas, telecom wireless data networks, test labs, radar and microwave systems.
Amphenol RF produces a full range of SMA connectors for these and other applications which
are available with a variety of body materials including brass, stainless steel and beryllium copper. Body finishes are available as passivated gold, nickel and white bronze. Amphenol's durable
design offers a minimum of 500 mating cycles and are rated for frequencies from DC up to 26.5 gigahertz. PCB versions are also available for surface mount, through-hole and in launch. To
learn more or purchase Amphenol RF SMA connectors click the link in the description below.
Amphenol RF high frequency SMA end launch connectors offer excellent VSWR performance up to 26.5 GHz. These connectors feature an optimized end launch design with either through-hole legs or traditional slide-on mounting legs that make them an ideal PCB connector solution for high frequency applications.
Learn More: https://goo.gl/gBqjEY
Amphenol RF Connectors for Low Loss Cables | Tech Specs
View full article: https://www.allaboutcircuits.com/new-industry-products/amphenol-rf-connectors-for-low-loss-cables-tech-specs/
Amphenol RF offers SMA, TNC, and N-Type connectors that have been redesigned and optimized for use with low loss cabling. They offer improved grounding, enhanced shielding, and low return loss from DC to 6GHz. The connectors are available in straight jack, bulkhead jack, straight plug, and right-angle plug configurations, with options for 195, 240, and 400 series low loss cable. For more information, as well as all the latest All About Circuits projects and articles, visit the official website at http://www.allaboutcircuits.com/
Check out TTI, INC's profile on All About Circuits and see more technical articles they created at https://www.allaboutcircuits.com/author/tti-inc
TTI, Inc's website:
https://www.ttiinc.com/content/ttiinc/en.html
Don't have AAC account yet? Register here! It's free and always will be. https://forum.allaboutcircuits.com/register
Subscribe on YouTube: https://www.youtube.com/c/AllAboutCircuitsVideo
Like us on Facebook: https://www.facebook.com/allaboutcircuits
Follow us on Twitter: https://twitter.com/AllAboutCircuit
Follow us on LinkedIn: https://www.linkedin.com/company/allaboutcircuits
Send us a Message
Please fill in the form below and we will contact you very soon.
Fields marked with an asterisk (*) are required.
