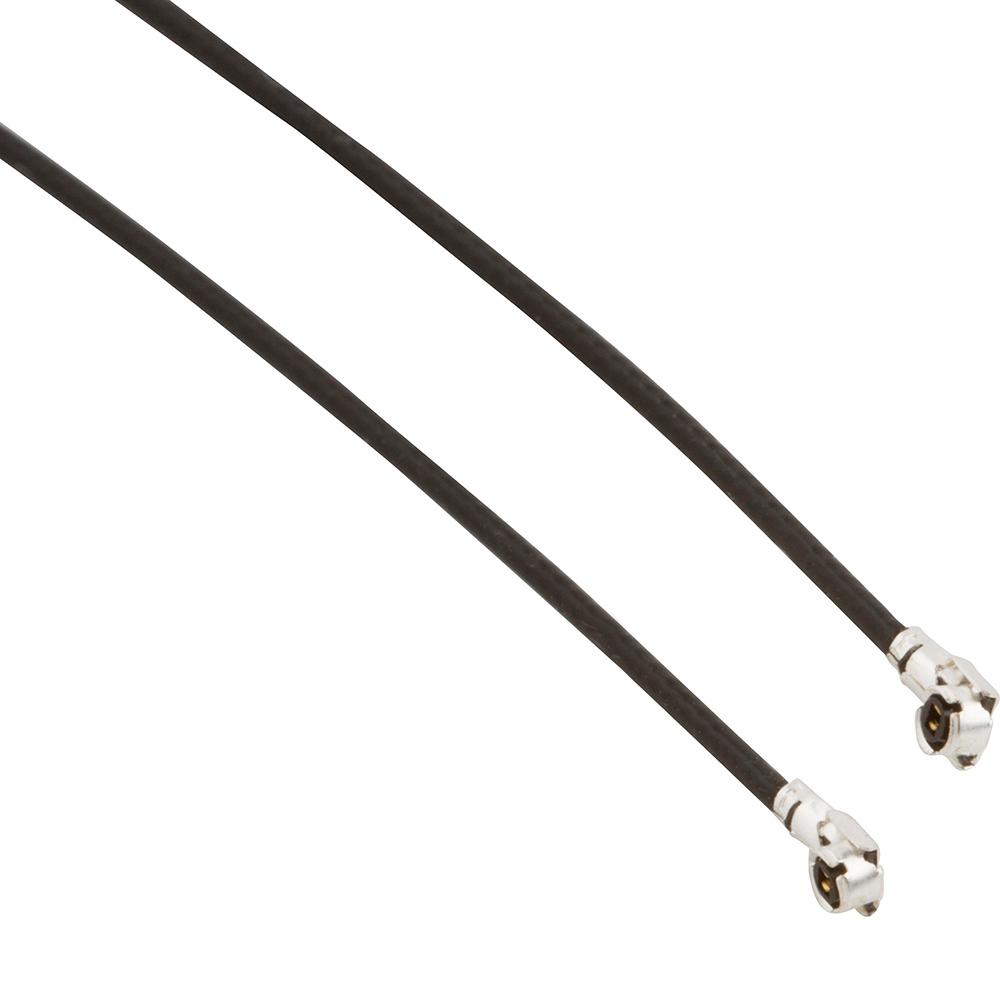

AMMC Cable Assemblies
Ultra-compact, high-frequency cable assemblies engineered for embedded and space-constrained applications.
Overview
Amphenol RF's AMMC cable assemblies feature microminiature connectors engineered for compact wireless and IoT applications. These assemblies are designed with space-saving configurations and are terminated to 50 ohm micro-coaxial cable types that support efficient signal transmission in tight installation environments. Their lightweight design and reliable electrical performance make them ideal for embedded systems that demand precision and durability.
These cable assemblies are fully tested for continuity and dielectric integrity, ensuring dependable performance in critical electronics. The AMMC interface provides secure mating with snap-on functionality and is an ideal solution for PCB-to-PCB or board-to-module applications where standard solutions cannot be accommodated due to space constraints. AMMC assemblies are available in a variety of standard lengths and configurations for design flexibility.
Features and Benefits
- Microminiature snap-on interface for easy mating and unmating
- Optimized for space-constrained PCB applications
- Available in a wide variety of standard lengths
- Lightweight construction ideal for portable and embedded electronics
- Fully tested for hi-pot and continuity
Key Technical Details
- 50 ohm interface designed for micro-coaxial cable
- Compact profile suitable for densely packed electronic designs
- Mated height supports board-to-board or board-to-module transitions
- Provides reliable electrical performance for high-density wireless systems
Applications
- IoT and wireless communication devices
- GPS and antenna modules
- Embedded systems and portable electronics
- Wearable technology
- Medical instrumentation
Browse our standard AMMC cable assemblies or contact us to discuss a custom solution tailored to your specific application.
All AMMC Cable Assembly Categories
Related Resources
SMA Extension Cable Assemblies Datasheet
The Amphenol RF SMA Extension Cable Assemblies datasheet highlights 50 ohm assemblies on TFC 302LL cable, suitable for frequencies from DC to 15 GHz. These extended length assemblies are ideal for applications that require flexibility and signal integrity.
Custom RF Solutions
Amphenol RF provides comprehensive custom RF solutions tailored to meet specific design requirements, from concept through mass production.
SMPM Plug to Plug Cable Assembly Datasheet
The Amphenol RF SMPM Plug to Plug Cable Assemblies datasheet highlights 50 ohm assemblies on conformable and flexible cables, suitable for frequencies from DC to 18 GHz. These micro-miniature, push-on connectors are ideal for high-vibration environments and applications such as antennas, test equipment, military, quantum computing, and radar.
IP67 SMA Cable Assemblies Datasheet
Amphenol RF's IP67 SMA Bulkhead Cable Assemblies feature pre-configured 50 ohm assemblies on flexible RG-316 coaxial cable, designed for both indoor and outdoor applications. These assemblies, available in various lengths, offer secure locking with threaded connectors, providing reliable performance up to 3 GHz, and are ideal for industrial equipment, antennas, and military communications.
Product Overview Brochure
Amphenol RF presents a comprehensive, high-performance portfolio of RF interconnect solutions, engineered to meet the rigorous demands of modern communications and electronic systems across industries. With decades of leadership in coaxial technology, this catalog showcases cutting-edge product lines, each designed for precision, reliability, and adaptability.
Locking SMA Cable Assemblies Datasheet
Amphenol RF's Locking SMA Cable Assemblies are designed for high-frequency applications up to 6 GHz, featuring a threaded SMA connector with a locking mechanism that requires 20N of force to prevent accidental disconnection. Built with gold-plated brass SMA connectors and phosphor bronze MHF I LK locking connectors, these assemblies ensure durability and resistance to harsh environments. The easily routable 1.13 mm cable allows for flexible installation in compact spaces, making them ideal for drones, wireless communications, robotics, IoT, and industrial equipment. Available in standard lengths from 50 to 400 mm, with custom lengths on request, they provide reliable performance in demanding applications.
RP-SMA to AMC4 Cable Assemblies Datasheet
Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.
SMA Cable Assemblies on RG-188 Datasheet
The SMA Cable Assemblies on RG-188 offer reliable high-frequency transmission up to 3 GHz with low loss, low VSWR, and a rugged, threaded coupling for secure installation. Designed for aerospace, industrial, medical, and communication applications, they use flexible, high-shielding RG-188 cable that withstands temperatures up to 205°C. Available in various plug configurations and lengths from 6 inches to 2 meters, they feature a 50Ω impedance, 1000 VRMS dielectric withstanding voltage, and a 500-cycle mating durability. Made with gold-plated brass connectors and PTFE insulation, they operate from -55°C to 165°C and meet RoHS standards.
50 Ohm HD-BNC Cable Assemblies
Amphenol RF's 50-ohm HD-BNC cable assemblies are designed for high-density applications, providing a compact and lightweight solution with a push-and-turn interface for enhanced performance. These assemblies, compatible with industry-standard RG-316 cable, support a frequency range up to 6 GHz and are ideal for telecommunications, instrumentation, radios, military, and industrial applications.
FAKRA to AMC Cable Assemblies
The Amphenol RF FAKRA to AMC Cable Assemblies datasheet highlights fixed-length assemblies designed for automotive and IoT applications. These IP67-rated assemblies combine FAKRA connectors with micro-miniature AMC connectors on 1.37 mm ultra-flexible coax cable, providing compact and sealed solutions ideal for DSRC, V2X, V2V technologies, 360-degree cameras, ADAS, smart boxes, and remote control access.
AMC Connector Series
Amphenol Micro Coaxial (AMC) connectors are low-profile solutions with a 2.5mm mating height and a 3mm x 3mm footprint, designed for portable and mobile devices. These connectors support high-frequency transmission from DC to 6 GHz, feature easy snap-on/off mating, and are compatible with Hirose U.FL and IPEX MHF1 series, making them ideal for applications like antennas, Bluetooth, GPS, WLAN, and cellular devices.
AMMC Connector Series
Amphenol Micro Miniature Coaxial (AMMC) connectors are designed for portable and mobile devices, featuring a low profile with a 1.4 mm mated height and a 2 mm x 2 mm footprint. These connectors support high-frequency transmission from DC to 6 GHz, offer easy snap-on/off mating, and are compatible with Hirose W.FL and IPEX MHF III series, making them ideal for applications such as antennas, Bluetooth, GPS, WLAN, and cellular devices.
ATC-PS Precision Test Cables
The ATC-PS cable assemblies cutsheet provides info for ATC-PS cable assemblies, outlining their technical specifications, features, and applications. It provides precise information on the design and performance characteristics of these cable assemblies, including impedance, frequency range, insertion loss, and durability. The document highlights the materials used, ensuring reliability and high performance in demanding environments. Additionally, it specifies the industries and applications these cable assemblies are designed for, demonstrating their suitability for various high-frequency and precision connectivity needs.
HSD Automotive Cable Assemblies
The Amphenol RF HSD (High Speed Data) Cable Assembly datasheet details fixed-length cable assemblies designed for automotive applications, supporting protocols like LVDS, Ethernet, and USB. These assemblies offer quick push-on mating with color-coded, keyed connectors to prevent mismating, and provide excellent electrical performance through 2 GHz. Applications include infotainment modules, cluster displays, LVDS cameras, and USB connections.
SMA Cable Assemblies on LMR Cable
The Amphenol RF SMA cable assemblies cut sheet details pre-configured assemblies using LMR-195 and LMR-240 cables, ideal for high-performance applications such as base stations, antennas, and telecommunication devices. These assemblies, featuring SMA connectors and Times Microwave LMR cables, operate from DC to 6 GHz, offering lower loss and superior electrical performance with rugged construction. Configurations include straight plug, right-angle plug, and bulkhead jack, available in various lengths and custom options upon request.
SMA to AMC Cable Assemblies
The Amphenol RF SMA to AMC Cable Assemblies cut sheet outlines both IP-67 and non-IP-67 fixed length assemblies designed for various applications. These assemblies feature improved design SMA connectors, offering space-efficient and economical improvements, with support for thicker panels. They are ideal for WLAN, M2M communications, and outdoor equipment, and are available in different configurations with micro-coaxial cables in lengths from 50 mm to 300 mm.
SMP Cable Assemblies
The Amphenol RF SMP Fixed Length Cable Assemblies cut sheet details SMP plug-to-plug cable assemblies using TFlex 405 and .085” conformable cables. These assemblies support frequencies from DC to 26.5 GHz and are ideal for high-vibration applications, offering push-on and snap-on mating styles. Available in lengths from 3 to 36 inches, these assemblies are designed for use in antennas, broadband, military, and instrumentation applications.
SMPM Cable Assemblies
The Amphenol RF SMPM Fixed Length Cable Assemblies cut sheet details micro-miniature SMPM plug-to-plug cable assemblies designed for high-frequency applications up to 20 GHz. These assemblies, available in standard lengths from 3 to 48 inches (or 100 to 2000 millimeters), feature conformable semi-rigid cables in .085" and .047" diameters. Ideal for antennas, backplane, broadband, wireless, military, and instrumentation applications, these assemblies offer push-on mating styles and accommodate both radial and axial misalignment.
Cable Connector Guide
The Amphenol Connex Cable Connector Guide provides an extensive selection of RF connectors and adapters, detailing common parts for popular cable types. The guide emphasizes uncompromised quality, vast selection, and superb technical support, while also offering customization options for specific customer needs. It includes information on crimp tooling compatible with industry-standard crimp die set dimensions, ensuring reliable and efficient assembly.
FAKRA Cable Assemblies
The Amphenol RF FAKRA Cable Assemblies cutsheet details fixed length assemblies using RG-58 and RG-174 cables, featuring FAKRA connectors suitable for high-frequency transmission up to 3 GHz. These universally keyed connectors are available in various configurations and lengths from 12 inches to 5 meters, ideal for automotive applications like ADAS, GPS, and infotainment systems.
QuickBuild RF Custom RF Cable Assemblies
The QuickBuild RF Brochure showcases the ability to deliver custom RF solutions with rapid turnaround times. It details the streamlined process for designing and manufacturing RF cable assemblies, connectors, and adapters, ensuring high performance and reliability. The brochure emphasizes the capability to reduce lead times while maintaining precision and durability, making their solutions ideal for demanding industries such as telecommunications, aerospace, military, and industrial applications.
RP-SMA Cable Assemblies
Amphenol RF's RP-SMA Cable Assemblies feature gold-plated brass bodies and support up to 500 mating cycles, designed for applications requiring low-loss antenna connections. These fixed length assemblies on RG-58, RG-174, and RG-316 cables offer reliable performance up to 5 GHz, ideal for laboratory RF test and measurement, wireless LAN antennas, land mobile radio, and cellular communication systems.
FAKRA to AMC4 Cable Assemblies
The Amphenol RF FAKRA to AMC4 Cable Assemblies Data Sheet highlights a versatile, high-performance interconnect solution designed for automotive, IoT, and compact RF applications. These cable assemblies combine the secure, high-reliability FAKRA interface with the ultra-miniature AMC4 connector, ensuring seamless integration in space-constrained designs without compromising signal integrity. Engineered for low-loss transmission and robust mechanical performance, they are ideal for antenna connections, telematics, and wireless communication systems.
BNC 50 Ohm Cable Assemblies
Amphenol RF's BNC 50 Ohm cable assemblies offer high-performance solutions utilizing various flexible cables. These assemblies feature a bayonet coupling mechanism for quick and secure mating, vibration-resistant connectors, and are available in lengths from 6 inches to 30 meters. Suitable for telecommunications, test and measurement, industrial connectivity, antenna connections, and patch panels, they support frequencies up to 4 GHz (1 GHz for RG-174). The assemblies use high-quality brass connectors with nickel plating and PTFE insulators, ensuring reliable electrical performance and durability.

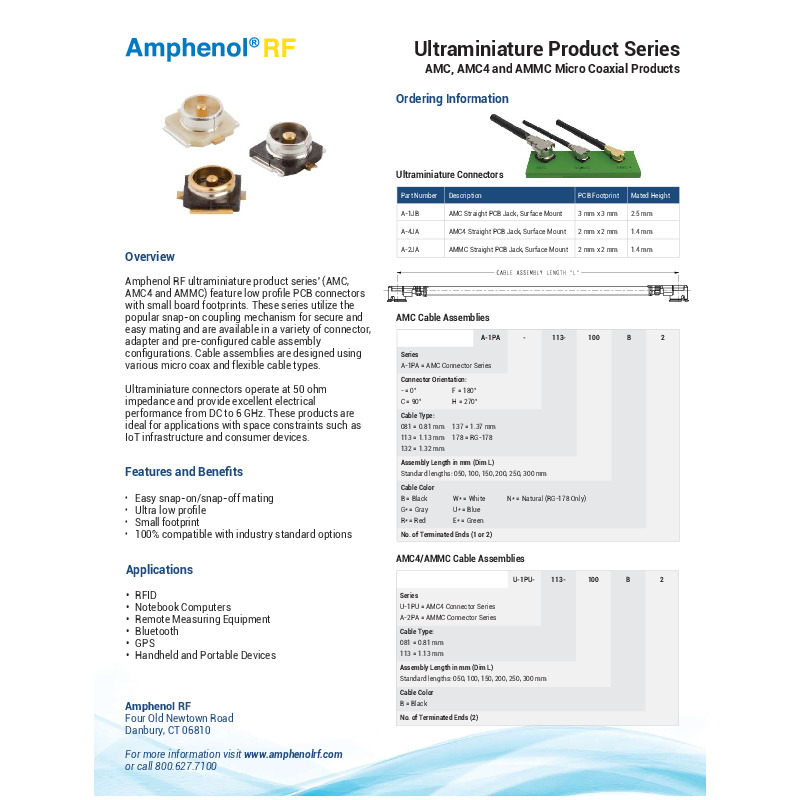

Ultraminiature Product Series
