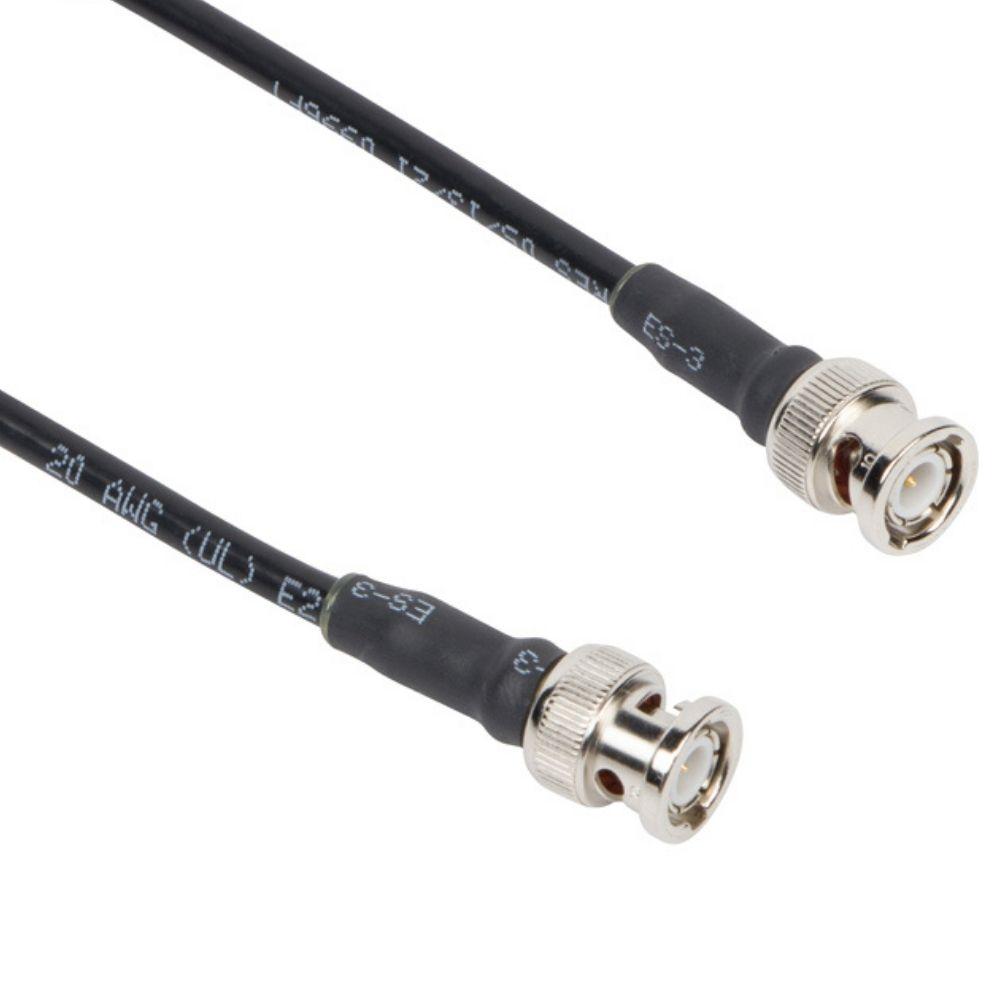

BNC Cable Assemblies
Versatile, quick-connect RF solutions for broadcast, test and general-purpose applications
Overview
Amphenol RF’s BNC cable assemblies provide reliable, quick-connect RF performance for a wide variety of applications, including commercial broadcast, test and measurement, and general-purpose RF systems. Built around the widely recognized bayonet coupling mechanism, BNC assemblies offer easy installation and secure connections in both standard and precision formats.
Our portfolio includes straight and right-angle configurations, 50 Ohm and 75 Ohm variants, and solutions specifically designed for 12G-SDI broadcast video. Assemblies are available in standard and custom lengths, utilizing flexible or low-loss cable types to accommodate a broad range of electrical and mechanical requirements.
Features and Benefits
- Bayonet-style coupling enables fast, secure mating and unmating
- 12G-SDI capable options support high-definition broadcast video transmission
- Available in 50 Ohm and 75 Ohm configurations
- Heat shrink strain relief offers improved durability and mechanical support
- Standard cable lengths and custom solutions available
- All standard assemblies undergo hi-pot and continuity testing
Key Technical Details
- Connector Series: BNC (Standard and 12G SDI-rated options)
- Impedance Options: 50 Ohm and 75 Ohm
- Cable Types: RG-58, RG-59, RG-316, Belden 4855R and similar low-loss broadcast cables
- Configurations: Plug-to-plug, plug-to-jack, right-angle variants
- Plating Options: Nickel, gold,
Applications
BNC cable assemblies are widely used across industries due to their mechanical reliability and versatile RF performance, including:
- Broadcast video transmission (SDI, HD-SDI, 12G-SDI)
- Test and measurement instrumentation
- Signal monitoring and laboratory setups
- Security and surveillance systems
- Networking and telecommunications equipment
- Medical and diagnostic devices
Ready to find the right BNC cable assembly for your application? Explore our broad selection of standard configurations available in various lengths and cable types. Need something specific? Contact our team for custom-engineered solutions tailored to your system requirements.
All BNC Cable Assembly Categories
