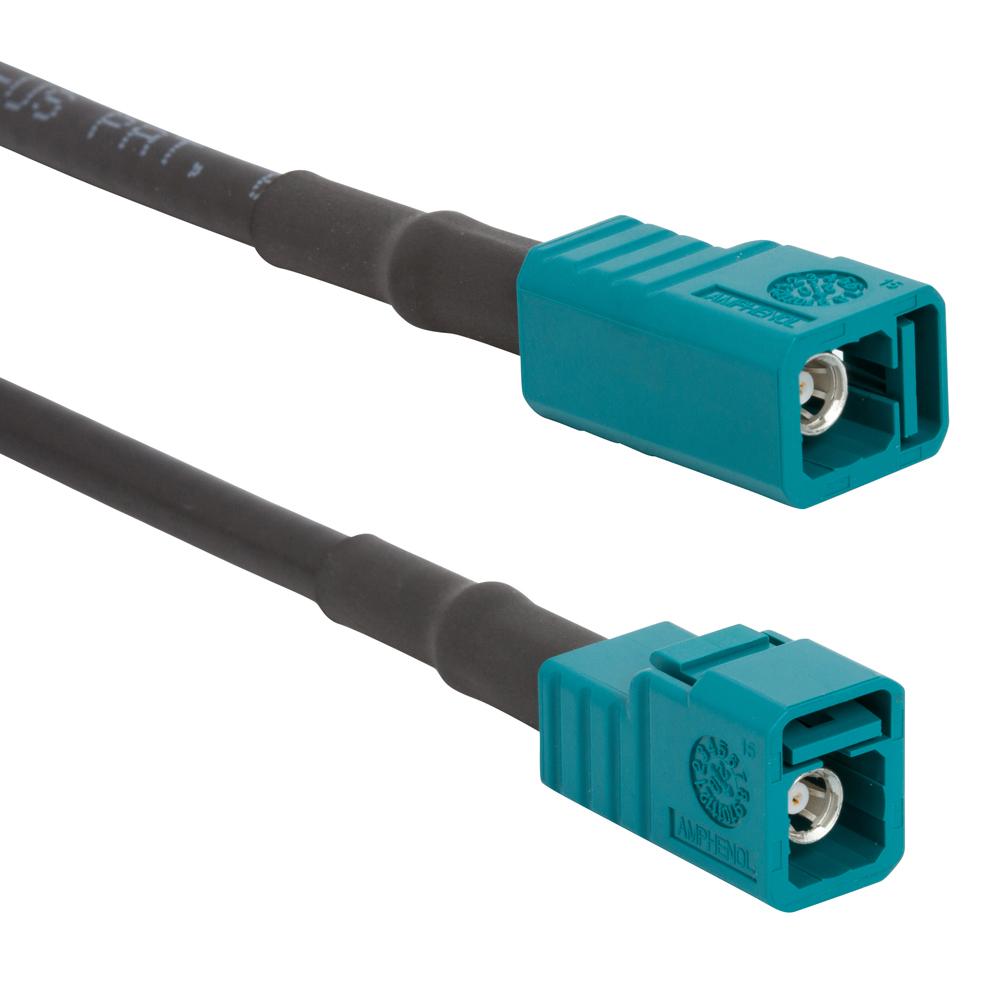

FAKRA Cable Assemblies
Automotive-grade RF cable assemblies designed for high-vibration and high-performance telematics and infotainment systems.
Overview
Amphenol RF’s FAKRA cable assemblies deliver reliable RF performance and mechanical stability for automotive and transportation applications requiring secure connections and industry-standard interface coding.
Amphenol RF’s FAKRA cable assemblies are designed in accordance with the FAKRA automotive standard to ensure secure, color-coded, and keyed connections for critical RF signal transmission. These assemblies utilize standard coaxial cable types and are terminated with ruggedized FAKRA connectors that support 50 ohm impedance systems. Designed for environments with high vibration and temperature fluctuation, these solutions are ideal for telematics, V2X communication, and in-vehicle infotainment systems.
Available in straight and right-angle configurations, Amphenol RF’s FAKRA cable assemblies support frequency ranges up to 6 GHz, depending on the connector and cable combination. Color-coded housings simplify assembly and reduce the risk of misconnection during installation. All standard assemblies are hi-pot and continuity tested for quality assurance. While IP67-sealed versions are not currently listed in the standard product category, custom sealed solutions may be available upon request.
Features and Benefits
- Engineered to meet automotive FAKRA coding and performance standards
- Operates up to 6 GHz (cable dependent) for telematics and antenna-based systems
- Color-coded and keyed housings ensure secure and accurate mating
- Supports a variety of coaxial cable types for design flexibility
- Available in both straight and right-angle connector orientations
- Hi-pot and continuity tested for reliable signal performance
- Ideal for high-vibration environments such as vehicles and industrial systems
Key Technical Details
- Connector Series: FAKRA (based on ISO 20860 standard)
- Coupling Mechanism: Latching style with audible and tactile feedback
- Cable Mount Options: Straight and right-angle plug configurations
- Cable Types Supported: RG-58, RG-174, RG-316, and automotive-grade coaxial cable
- Testing Protocol: Hi-pot and continuity tested for all standard cable assemblies
Applications
FAKRA cable assemblies are ideal for:
- Automotive telematics and GPS systems
- Vehicle-to-Everything (V2X) communication modules
- In-vehicle infotainment and media networks
- Smart antenna and data connectivity platforms
- Industrial transportation and navigation systems
- Advanced Driver-Assistance Systems (ADAS)
Explore our full range of FAKRA cable assemblies designed for high-reliability signal transmission in automotive environments. For custom configurations or specific vehicle requirements, contact our engineering team to discuss a tailored solution.
