HSD Cable Assemblies
High-speed data cable assemblies for automotive and industrial infotainment, camera, and networking systems.
Overview

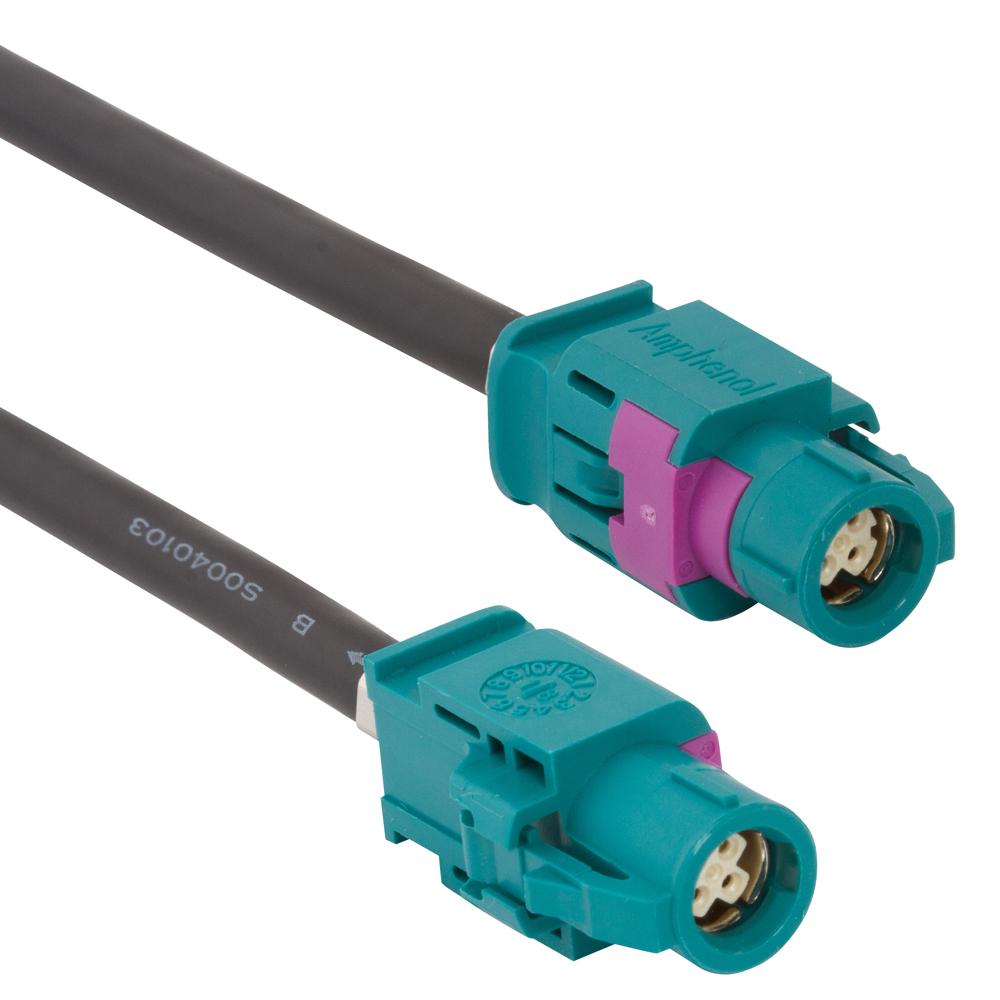

Amphenol RF’s HSD cable assemblies are engineered for robust, high-performance data transmission in demanding environments where electromagnetic integrity and mechanical durability are essential.
Amphenol RF’s HSD (High-Speed Data) cable assemblies are designed to support the increasing bandwidth demands of infotainment, camera, and telematics systems in automotive and industrial applications. These assemblies utilize HSD connectors that meet the requirements of open industry standards and are suitable for shielded twisted pair (STP) cable, supporting low-voltage differential signaling (LVDS) for maximum signal integrity.
Featuring a compact footprint with robust locking mechanisms, HSD cable assemblies are ideal for harsh environments where vibration and signal interference are concerns. These assemblies are commonly used in automotive camera systems, infotainment modules, navigation units, and Ethernet-based in-vehicle networks. All standard Amphenol RF HSD cable assemblies are hi-pot and continuity tested for long-term performance. IP67-sealed options were not found in this category on the website.
Features and Benefits
- Supports high-speed differential signaling for automotive Ethernet, LVDS, and USB applications
- Shielded for EMI protection and signal integrity
- Compact design enables high-density installations
- Color-coded keying options help prevent mismating in multi-port systems
- Available in multiple orientations and cable lengths
- Hi-pot and continuity tested for consistent electrical performance
- Compatible with industry-standard HSD interfaces
Key Technical Details
- Connector Series: HSD (High-Speed Data)
- Coupling Mechanism: Push-pull or snap-lock depending on configuration
- Shielding: Fully shielded for EMI resistance
- Cable Compatibility: Shielded twisted pair (STP) for LVDS and digital data
- Testing Protocol: Hi-pot and continuity tested for all standard assemblies
Applications
HSD cable assemblies are ideal for:
- Automotive camera systems and driver-assistance modules
- Infotainment head units and display interfaces
- Ethernet-based networking within vehicles
- Industrial automation and smart systems
- Navigation and telematics modules
- USB and digital video interfaces requiring high-speed data transfer
Explore our standard portfolio of HSD cable assemblies designed for high-speed data connectivity in complex systems. If you require a custom configuration, our technical team is available to support your unique application.
