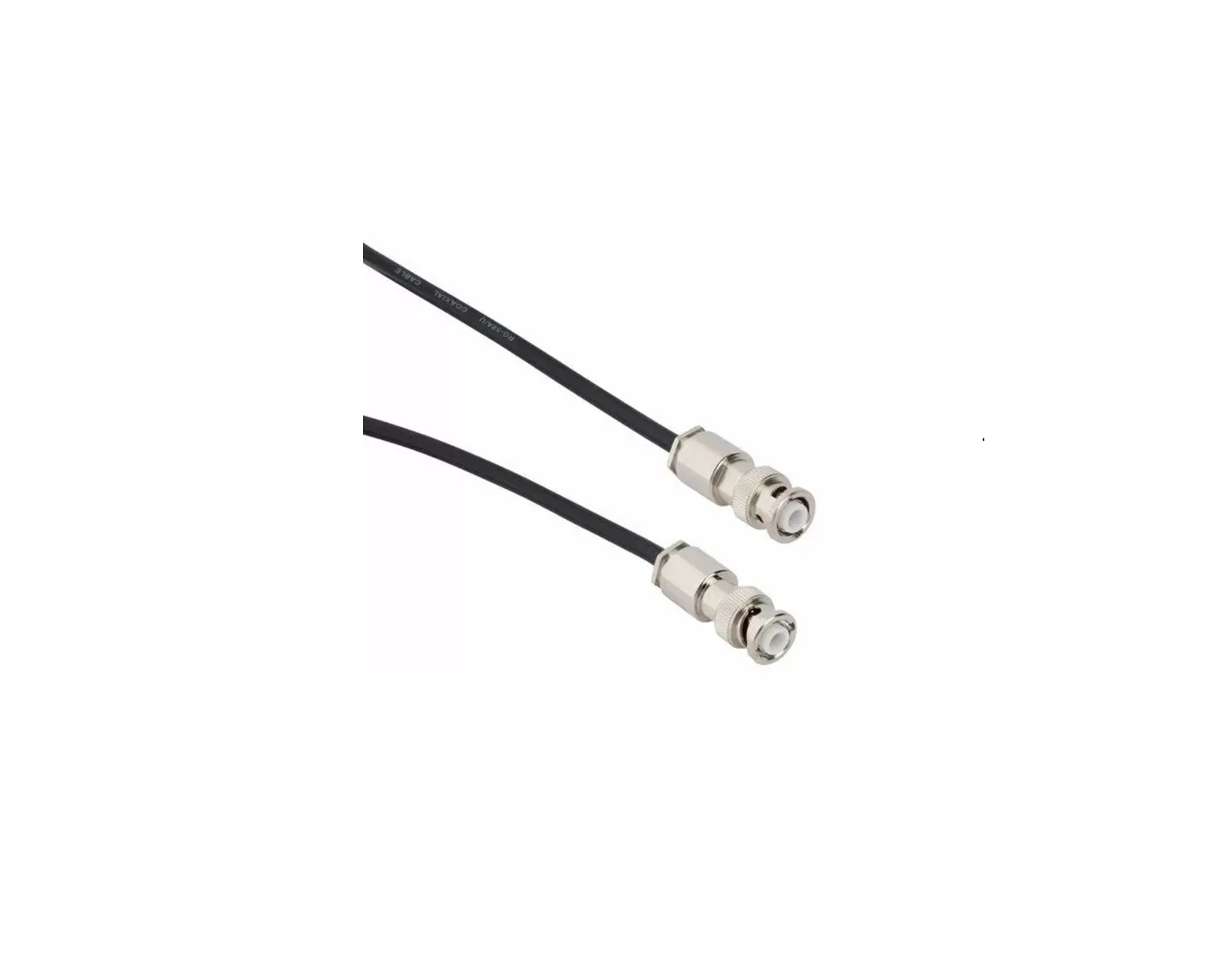

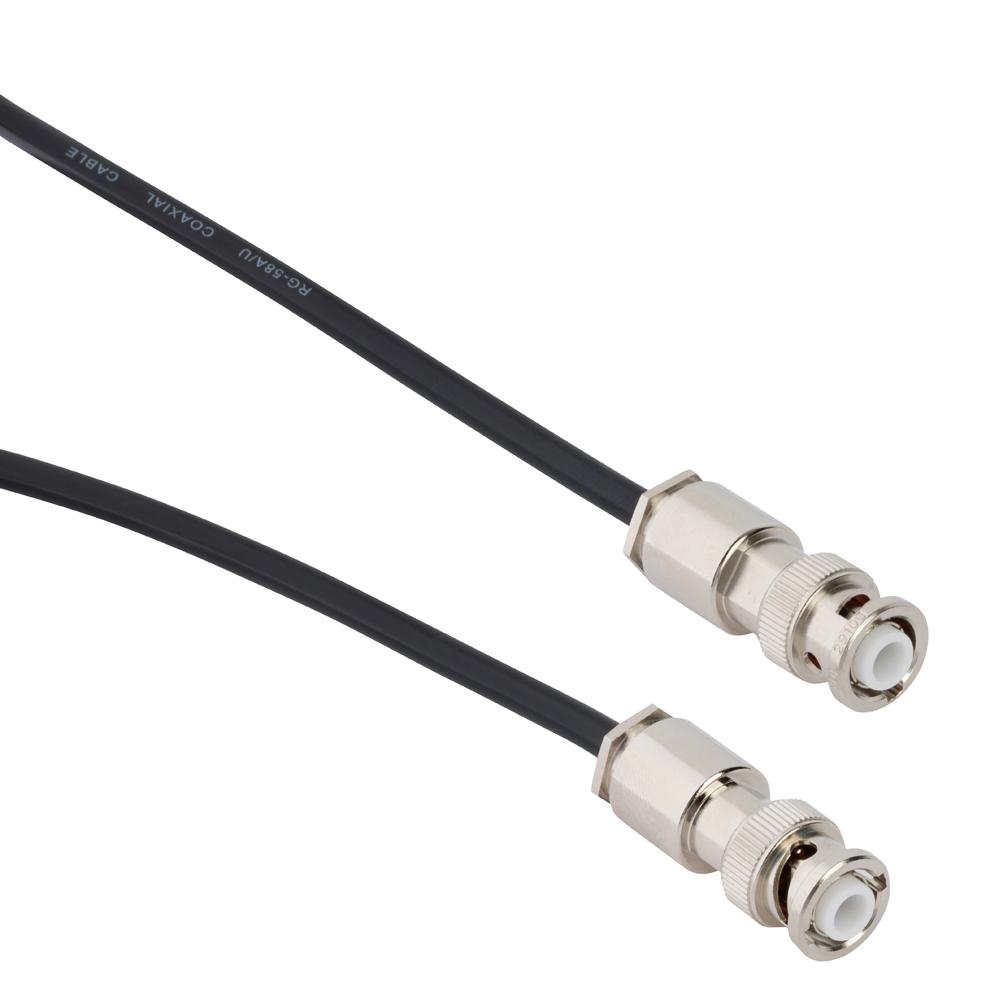

MHV Cable Assemblies
High-voltage cable assemblies for secure, reliable signal transmission in instrumentation and power applications
Overview
Amphenol RF’s MHV cable assemblies are engineered to support high-voltage signal applications with secure bayonet coupling, dependable insulation, and robust mechanical construction.
Amphenol RF’s MHV (Miniature High Voltage) cable assemblies provide a specialized interconnect solution for high-voltage environments, particularly in test and measurement, laboratory instrumentation, and power supply systems. Built on a similar form factor to BNC connectors, the MHV interface features enhanced dielectric spacing to support higher voltage levels—typically up to 1,500 VRMS.
These assemblies are offered in various cable configurations and lengths, with straight and right-angle plug options to accommodate a range of mechanical and electrical needs. The bayonet-style coupling ensures a secure and reliable connection, while the overall construction allows for safe, repeatable use in critical systems. All standard MHV cable assemblies are hi-pot and continuity tested for electrical reliability.
Features and Benefits
- Designed for high-voltage signal transmission up to 1,500 VRMS
- Bayonet coupling for quick, secure mating
- Compatible with flexible coaxial cables such as RG-58 and RG-59
- Compact form factor suitable for dense instrumentation layouts
- Available in straight and right-angle configurations
- Hi-pot and continuity tested for safety and reliability
- Fully shielded interface helps minimize electrical interference
Key Technical Details
- Connector Series: MHV (Miniature High Voltage)
- Interface Type: Bayonet lock for secure high-voltage connection
- Cable Mount Options: Straight and right-angle plug configurations
- Cable Compatibility: RG-58, RG-59, and other high-voltage coaxial cable types
- Testing Protocol: All standard assemblies are hi-pot and continuity tested
Applications
MHV cable assemblies are commonly used in:
- High-voltage test equipment and calibration systems
- Power supplies and measurement devices
- Laboratory instrumentation and signal analyzers
- Medical diagnostic equipment (non-patient-contact)
- Particle detection and high-energy physics systems
- Industrial control equipment requiring high-voltage signals
Browse Amphenol RF’s standard selection of MHV cable assemblies or contact our engineering team to create a custom solution for your high-voltage signal requirements.
All MHV Cable Assembly Categories
Related Resources
Develop high voltage solutions with pre-configured MHV cable assemblies
Amphenol RF is pleased to announce the introduction of MHV cable assemblies into our wide range of pre-configured assembly options.
SMA Extension Cable Assemblies Datasheet
The Amphenol RF SMA Extension Cable Assemblies datasheet highlights 50 ohm assemblies on TFC 302LL cable, suitable for frequencies from DC to 15 GHz. These extended length assemblies are ideal for applications that require flexibility and signal integrity.
Custom RF Solutions
Amphenol RF provides comprehensive custom RF solutions tailored to meet specific design requirements, from concept through mass production.

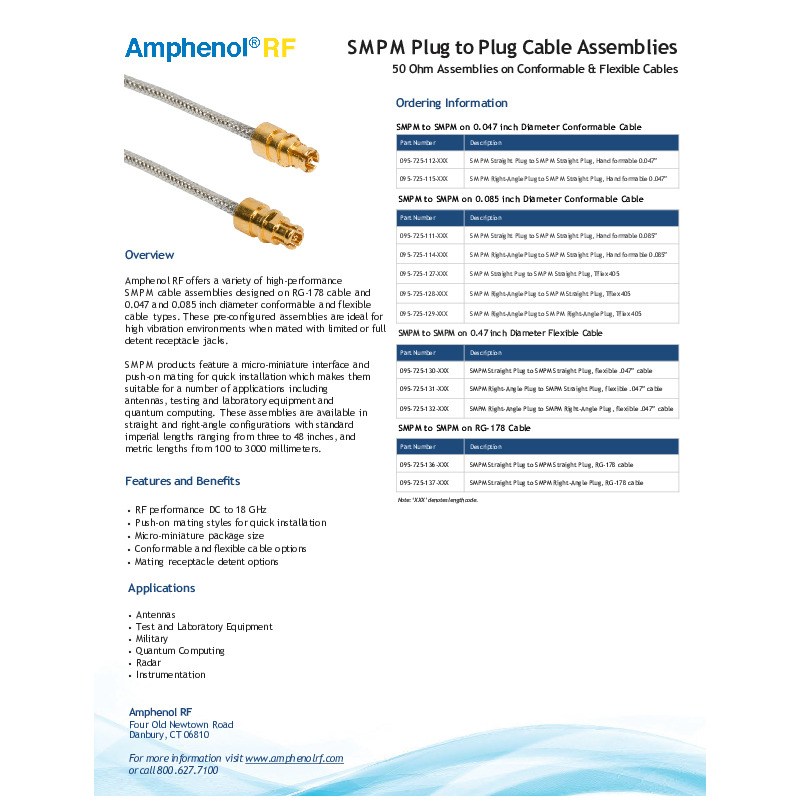

SMPM Plug to Plug Cable Assembly Datasheet
The Amphenol RF SMPM Plug to Plug Cable Assemblies datasheet highlights 50 ohm assemblies on conformable and flexible cables, suitable for frequencies from DC to 18 GHz. These micro-miniature, push-on connectors are ideal for high-vibration environments and applications such as antennas, test equipment, military, quantum computing, and radar.

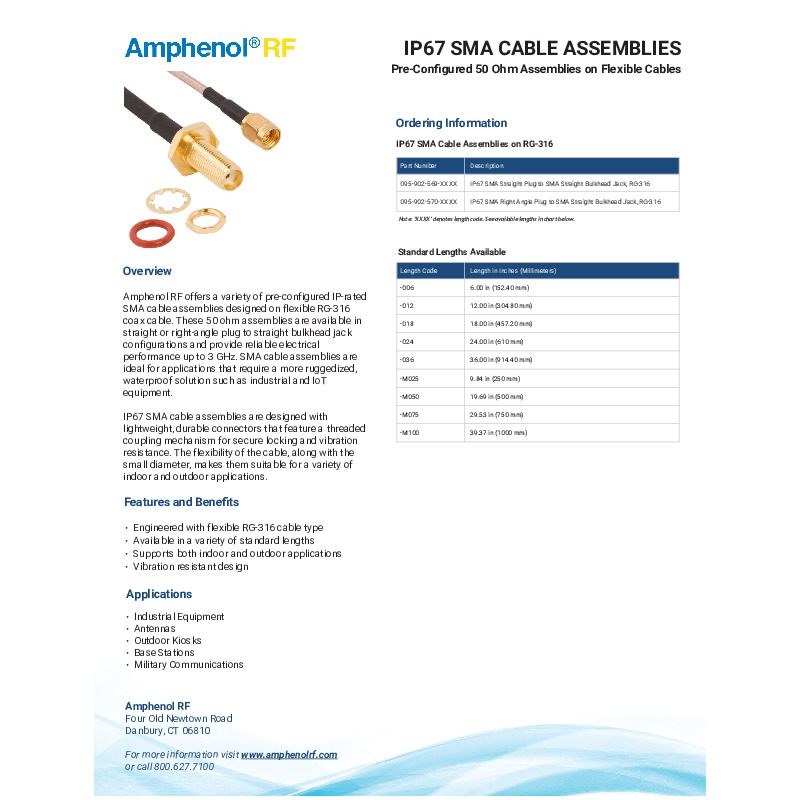

IP67 SMA Cable Assemblies Datasheet
Amphenol RF's IP67 SMA Bulkhead Cable Assemblies feature pre-configured 50 ohm assemblies on flexible RG-316 coaxial cable, designed for both indoor and outdoor applications. These assemblies, available in various lengths, offer secure locking with threaded connectors, providing reliable performance up to 3 GHz, and are ideal for industrial equipment, antennas, and military communications.
Product Overview Brochure
Amphenol RF presents a comprehensive, high-performance portfolio of RF interconnect solutions, engineered to meet the rigorous demands of modern communications and electronic systems across industries. With decades of leadership in coaxial technology, this catalog showcases cutting-edge product lines, each designed for precision, reliability, and adaptability.
Locking SMA Cable Assemblies Datasheet
Amphenol RF's Locking SMA Cable Assemblies are designed for high-frequency applications up to 6 GHz, featuring a threaded SMA connector with a locking mechanism that requires 20N of force to prevent accidental disconnection. Built with gold-plated brass SMA connectors and phosphor bronze MHF I LK locking connectors, these assemblies ensure durability and resistance to harsh environments. The easily routable 1.13 mm cable allows for flexible installation in compact spaces, making them ideal for drones, wireless communications, robotics, IoT, and industrial equipment. Available in standard lengths from 50 to 400 mm, with custom lengths on request, they provide reliable performance in demanding applications.

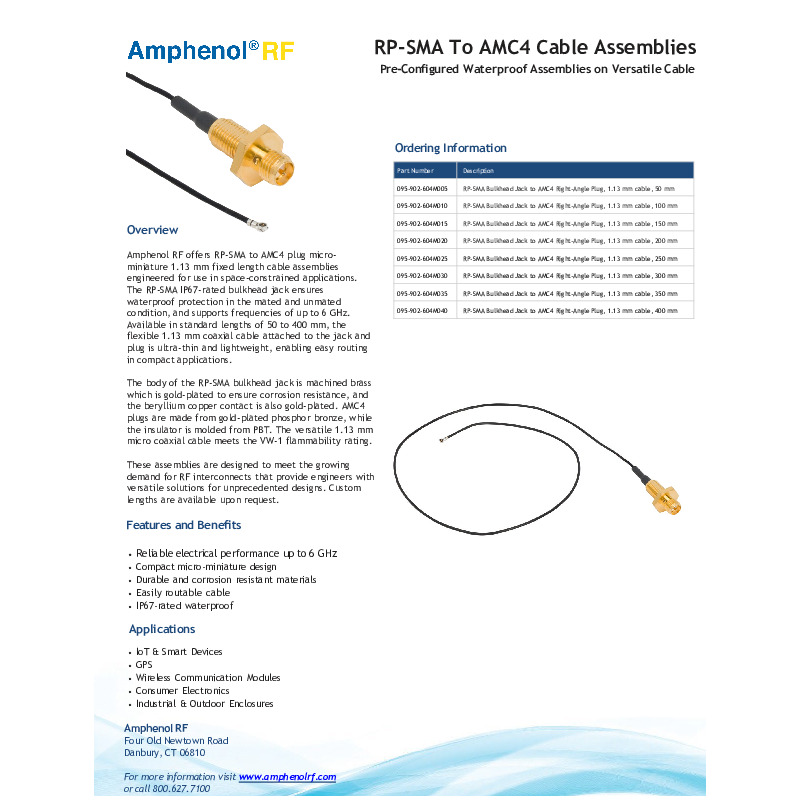

RP-SMA to AMC4 Cable Assemblies Datasheet
Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.

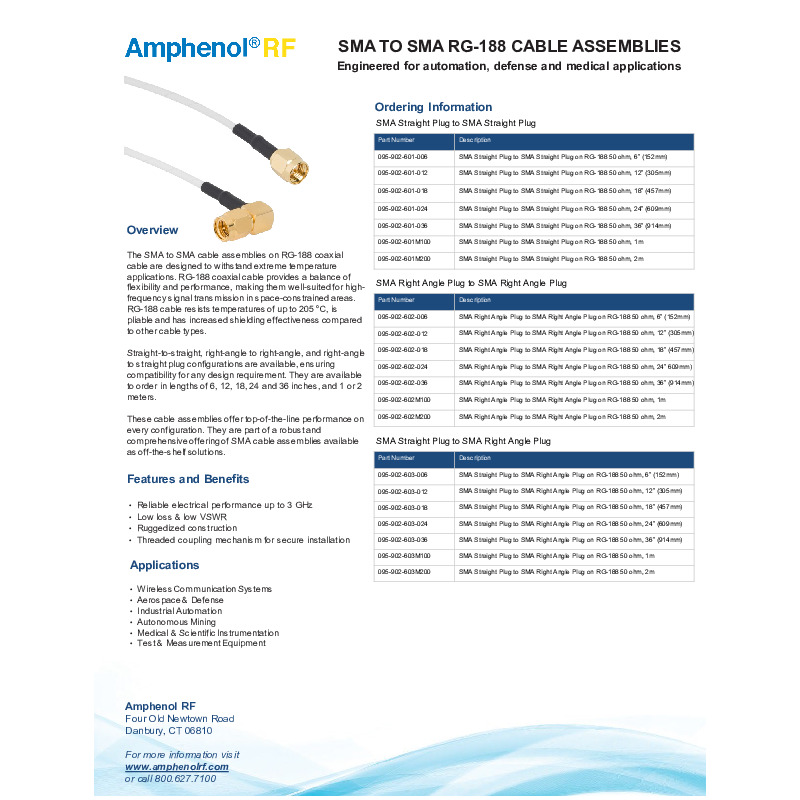

SMA Cable Assemblies on RG-188 Datasheet
The SMA Cable Assemblies on RG-188 offer reliable high-frequency transmission up to 3 GHz with low loss, low VSWR, and a rugged, threaded coupling for secure installation. Designed for aerospace, industrial, medical, and communication applications, they use flexible, high-shielding RG-188 cable that withstands temperatures up to 205°C. Available in various plug configurations and lengths from 6 inches to 2 meters, they feature a 50Ω impedance, 1000 VRMS dielectric withstanding voltage, and a 500-cycle mating durability. Made with gold-plated brass connectors and PTFE insulation, they operate from -55°C to 165°C and meet RoHS standards.
50 Ohm HD-BNC Cable Assemblies
Amphenol RF's 50-ohm HD-BNC cable assemblies are designed for high-density applications, providing a compact and lightweight solution with a push-and-turn interface for enhanced performance. These assemblies, compatible with industry-standard RG-316 cable, support a frequency range up to 6 GHz and are ideal for telecommunications, instrumentation, radios, military, and industrial applications.

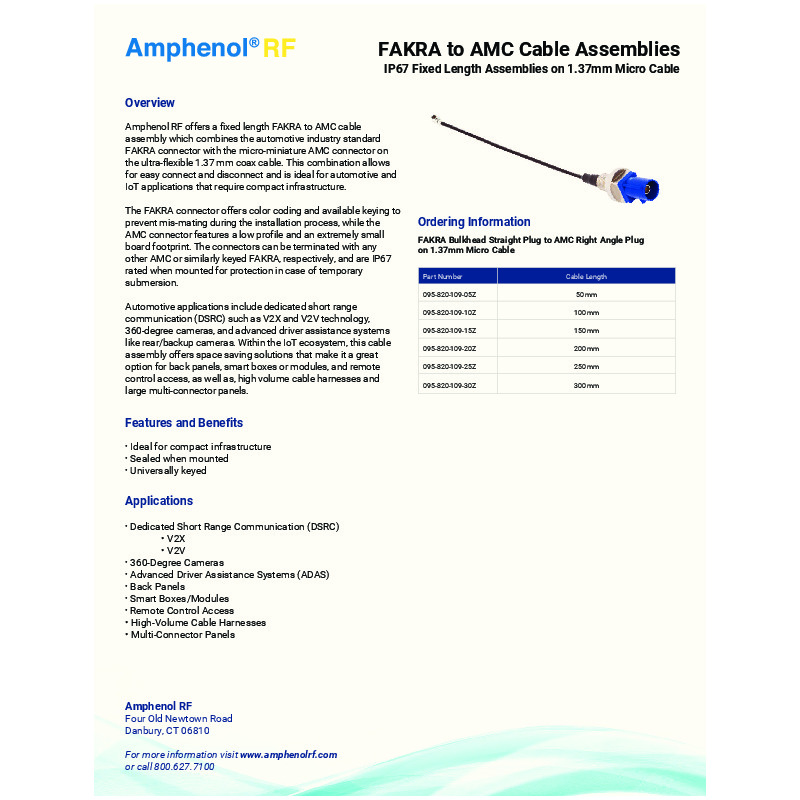

FAKRA to AMC Cable Assemblies
The Amphenol RF FAKRA to AMC Cable Assemblies datasheet highlights fixed-length assemblies designed for automotive and IoT applications. These IP67-rated assemblies combine FAKRA connectors with micro-miniature AMC connectors on 1.37 mm ultra-flexible coax cable, providing compact and sealed solutions ideal for DSRC, V2X, V2V technologies, 360-degree cameras, ADAS, smart boxes, and remote control access.

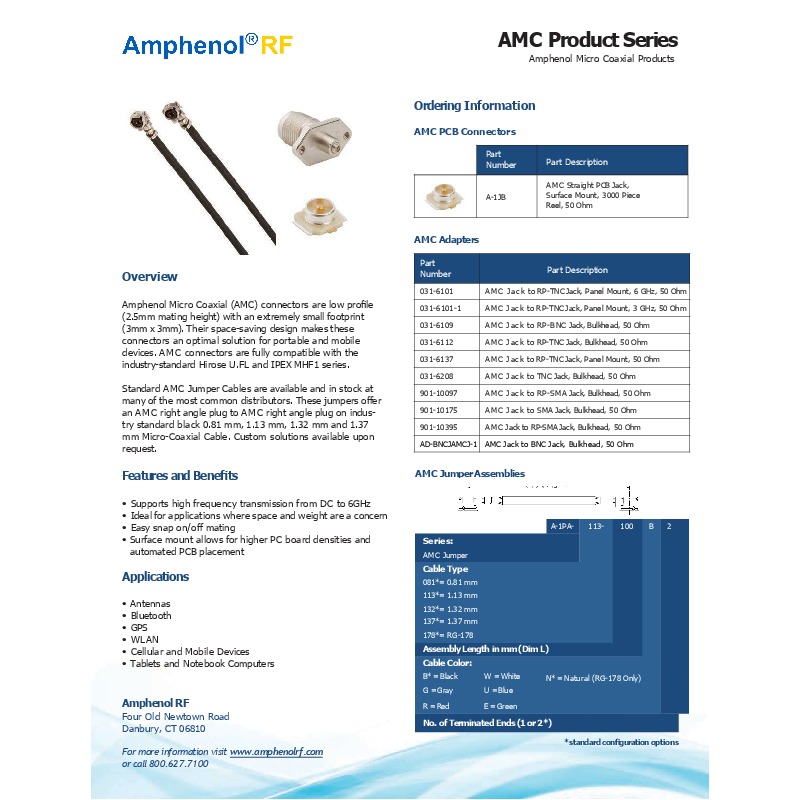

AMC Connector Series
Amphenol Micro Coaxial (AMC) connectors are low-profile solutions with a 2.5mm mating height and a 3mm x 3mm footprint, designed for portable and mobile devices. These connectors support high-frequency transmission from DC to 6 GHz, feature easy snap-on/off mating, and are compatible with Hirose U.FL and IPEX MHF1 series, making them ideal for applications like antennas, Bluetooth, GPS, WLAN, and cellular devices.
AMMC Connector Series
Amphenol Micro Miniature Coaxial (AMMC) connectors are designed for portable and mobile devices, featuring a low profile with a 1.4 mm mated height and a 2 mm x 2 mm footprint. These connectors support high-frequency transmission from DC to 6 GHz, offer easy snap-on/off mating, and are compatible with Hirose W.FL and IPEX MHF III series, making them ideal for applications such as antennas, Bluetooth, GPS, WLAN, and cellular devices.

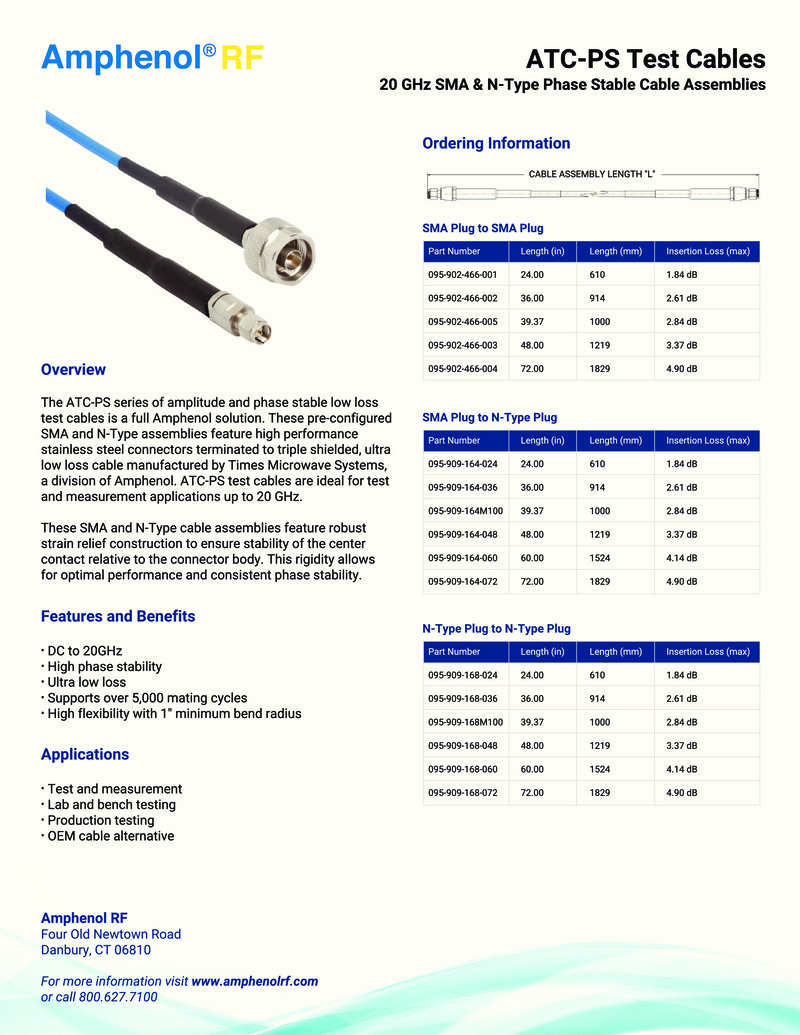

ATC-PS Precision Test Cables
The ATC-PS cable assemblies cutsheet provides info for ATC-PS cable assemblies, outlining their technical specifications, features, and applications. It provides precise information on the design and performance characteristics of these cable assemblies, including impedance, frequency range, insertion loss, and durability. The document highlights the materials used, ensuring reliability and high performance in demanding environments. Additionally, it specifies the industries and applications these cable assemblies are designed for, demonstrating their suitability for various high-frequency and precision connectivity needs.

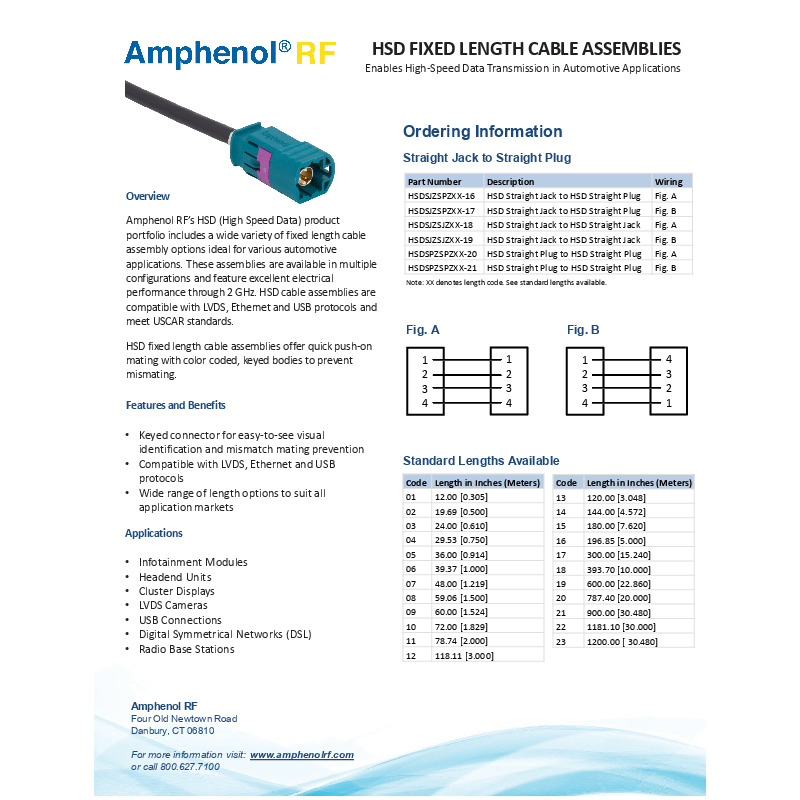

HSD Automotive Cable Assemblies
The Amphenol RF HSD (High Speed Data) Cable Assembly datasheet details fixed-length cable assemblies designed for automotive applications, supporting protocols like LVDS, Ethernet, and USB. These assemblies offer quick push-on mating with color-coded, keyed connectors to prevent mismating, and provide excellent electrical performance through 2 GHz. Applications include infotainment modules, cluster displays, LVDS cameras, and USB connections.

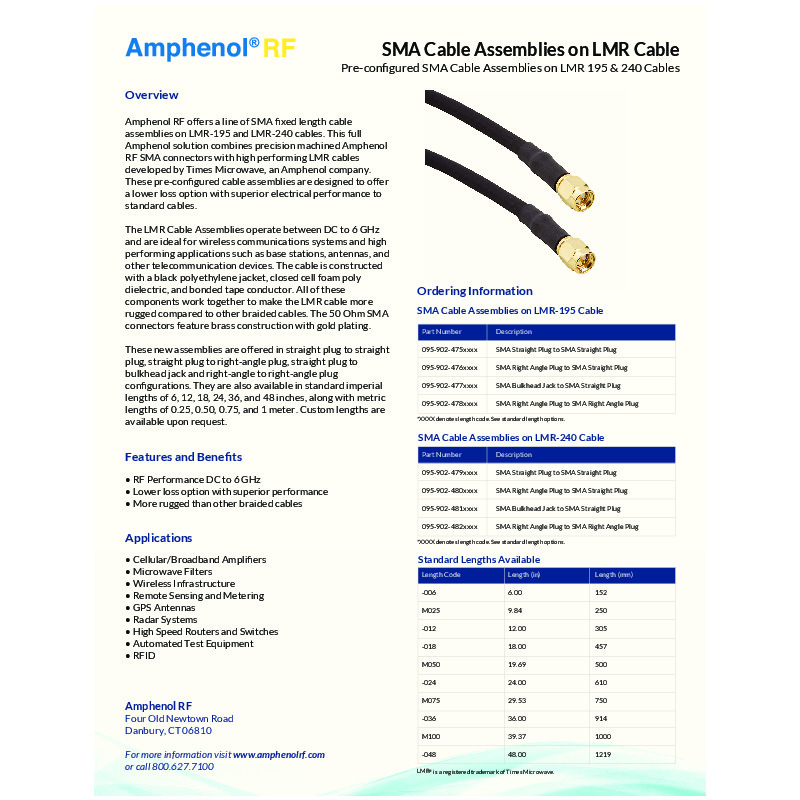

SMA Cable Assemblies on LMR Cable
The Amphenol RF SMA cable assemblies cut sheet details pre-configured assemblies using LMR-195 and LMR-240 cables, ideal for high-performance applications such as base stations, antennas, and telecommunication devices. These assemblies, featuring SMA connectors and Times Microwave LMR cables, operate from DC to 6 GHz, offering lower loss and superior electrical performance with rugged construction. Configurations include straight plug, right-angle plug, and bulkhead jack, available in various lengths and custom options upon request.

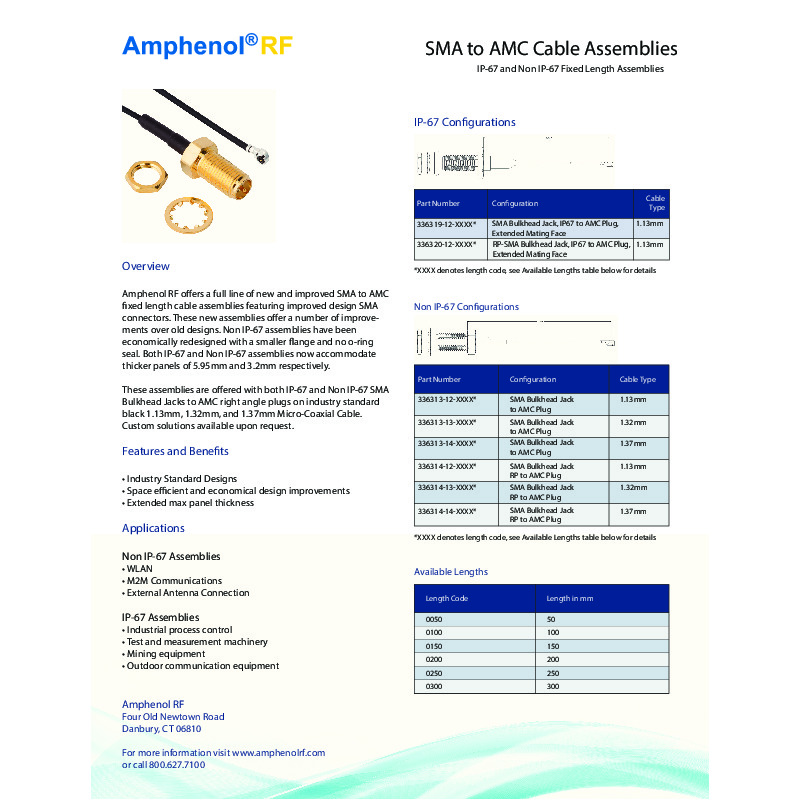

SMA to AMC Cable Assemblies
The Amphenol RF SMA to AMC Cable Assemblies cut sheet outlines both IP-67 and non-IP-67 fixed length assemblies designed for various applications. These assemblies feature improved design SMA connectors, offering space-efficient and economical improvements, with support for thicker panels. They are ideal for WLAN, M2M communications, and outdoor equipment, and are available in different configurations with micro-coaxial cables in lengths from 50 mm to 300 mm.

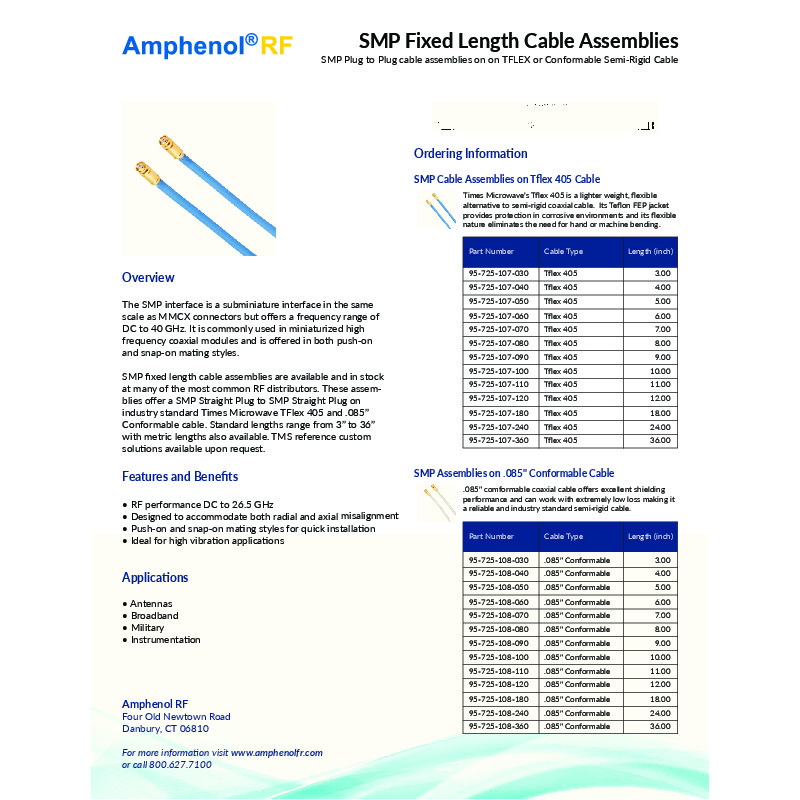

SMP Cable Assemblies
The Amphenol RF SMP Fixed Length Cable Assemblies cut sheet details SMP plug-to-plug cable assemblies using TFlex 405 and .085” conformable cables. These assemblies support frequencies from DC to 26.5 GHz and are ideal for high-vibration applications, offering push-on and snap-on mating styles. Available in lengths from 3 to 36 inches, these assemblies are designed for use in antennas, broadband, military, and instrumentation applications.

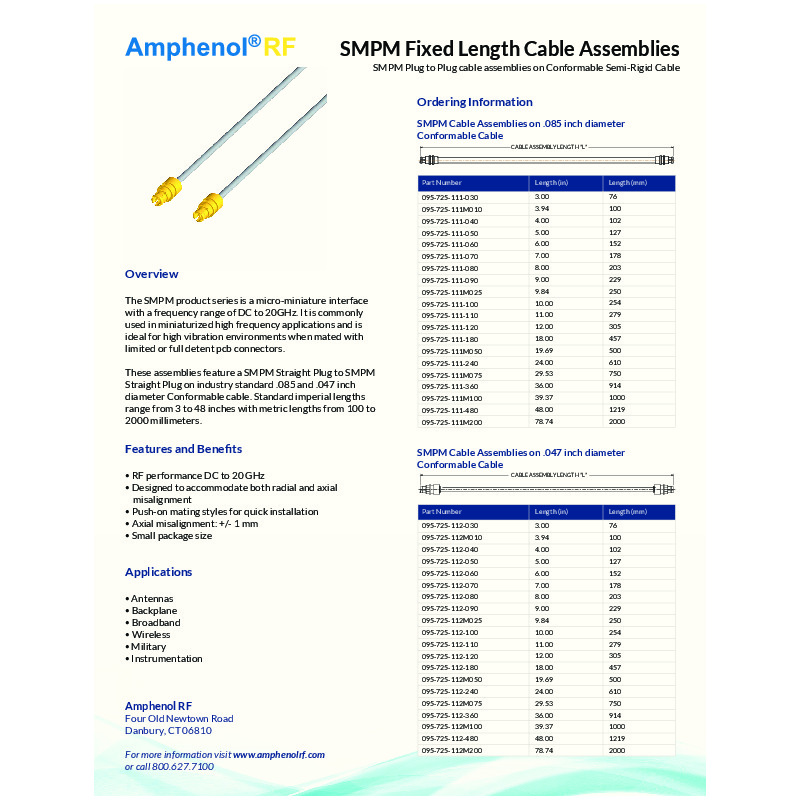

SMPM Cable Assemblies
The Amphenol RF SMPM Fixed Length Cable Assemblies cut sheet details micro-miniature SMPM plug-to-plug cable assemblies designed for high-frequency applications up to 20 GHz. These assemblies, available in standard lengths from 3 to 48 inches (or 100 to 2000 millimeters), feature conformable semi-rigid cables in .085" and .047" diameters. Ideal for antennas, backplane, broadband, wireless, military, and instrumentation applications, these assemblies offer push-on mating styles and accommodate both radial and axial misalignment.
Cable Connector Guide
The Amphenol Connex Cable Connector Guide provides an extensive selection of RF connectors and adapters, detailing common parts for popular cable types. The guide emphasizes uncompromised quality, vast selection, and superb technical support, while also offering customization options for specific customer needs. It includes information on crimp tooling compatible with industry-standard crimp die set dimensions, ensuring reliable and efficient assembly.
FAKRA Cable Assemblies
The Amphenol RF FAKRA Cable Assemblies cutsheet details fixed length assemblies using RG-58 and RG-174 cables, featuring FAKRA connectors suitable for high-frequency transmission up to 3 GHz. These universally keyed connectors are available in various configurations and lengths from 12 inches to 5 meters, ideal for automotive applications like ADAS, GPS, and infotainment systems.
QuickBuild RF Custom RF Cable Assemblies
The QuickBuild RF Brochure showcases the ability to deliver custom RF solutions with rapid turnaround times. It details the streamlined process for designing and manufacturing RF cable assemblies, connectors, and adapters, ensuring high performance and reliability. The brochure emphasizes the capability to reduce lead times while maintaining precision and durability, making their solutions ideal for demanding industries such as telecommunications, aerospace, military, and industrial applications.

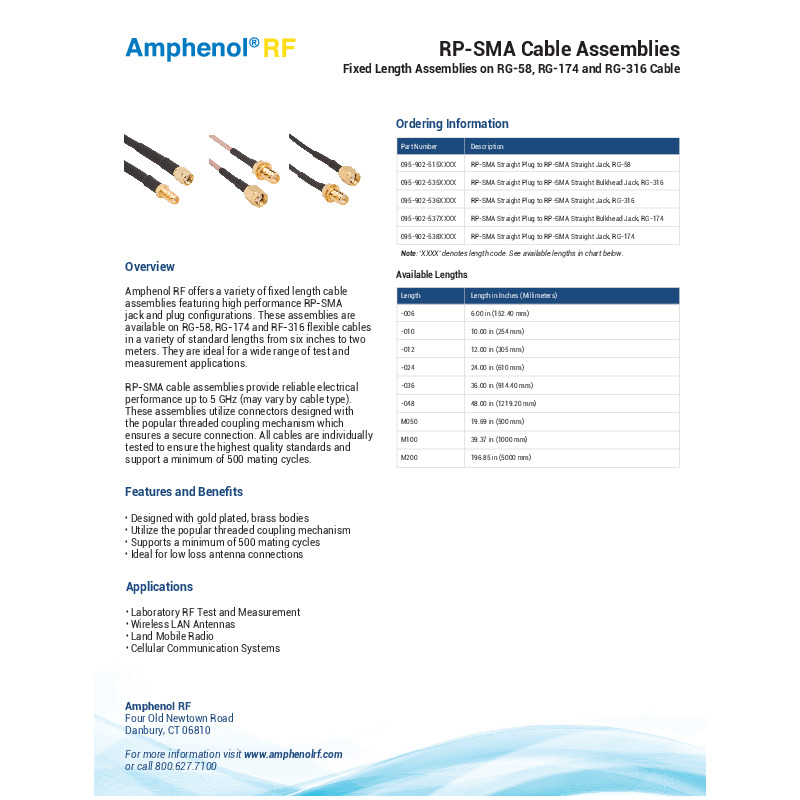

RP-SMA Cable Assemblies
Amphenol RF's RP-SMA Cable Assemblies feature gold-plated brass bodies and support up to 500 mating cycles, designed for applications requiring low-loss antenna connections. These fixed length assemblies on RG-58, RG-174, and RG-316 cables offer reliable performance up to 5 GHz, ideal for laboratory RF test and measurement, wireless LAN antennas, land mobile radio, and cellular communication systems.

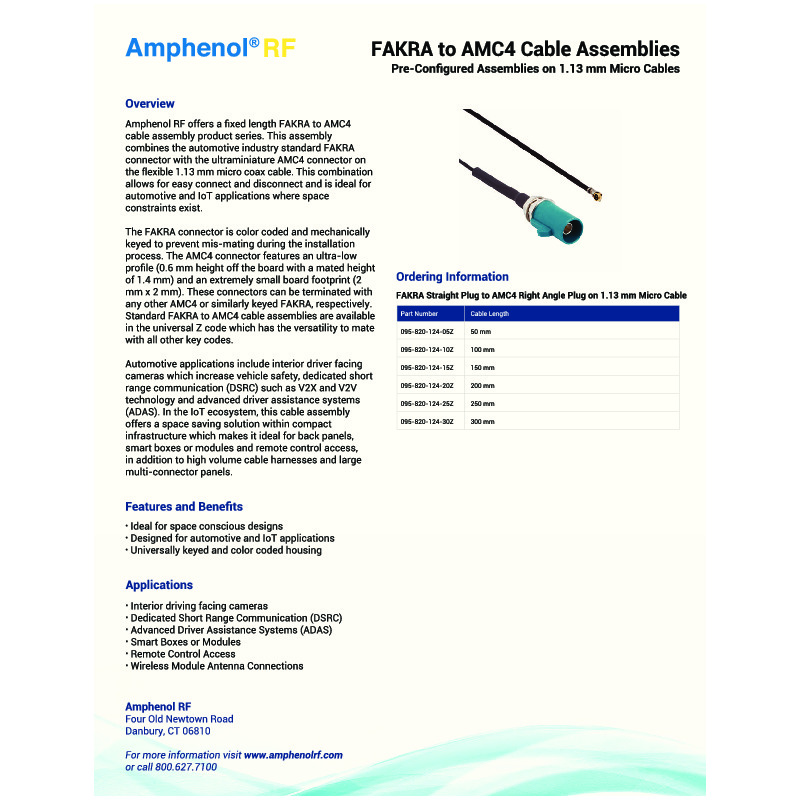

FAKRA to AMC4 Cable Assemblies
The Amphenol RF FAKRA to AMC4 Cable Assemblies Data Sheet highlights a versatile, high-performance interconnect solution designed for automotive, IoT, and compact RF applications. These cable assemblies combine the secure, high-reliability FAKRA interface with the ultra-miniature AMC4 connector, ensuring seamless integration in space-constrained designs without compromising signal integrity. Engineered for low-loss transmission and robust mechanical performance, they are ideal for antenna connections, telematics, and wireless communication systems.
BNC 50 Ohm Cable Assemblies
Amphenol RF's BNC 50 Ohm cable assemblies offer high-performance solutions utilizing various flexible cables. These assemblies feature a bayonet coupling mechanism for quick and secure mating, vibration-resistant connectors, and are available in lengths from 6 inches to 30 meters. Suitable for telecommunications, test and measurement, industrial connectivity, antenna connections, and patch panels, they support frequencies up to 4 GHz (1 GHz for RG-174). The assemblies use high-quality brass connectors with nickel plating and PTFE insulators, ensuring reliable electrical performance and durability.
TNC Plug-to-Plug Cable Assemblies
The Amphenol RF TNC Plug-to-Plug Cable Assemblies datasheet describes 50 ohm assemblies available in standard lengths from six inches to four meters, featuring threaded coupling for secure and stable connections. These high-performance assemblies, suitable for industrial connectivity and external antennas, operate up to 11 GHz and come in ruggedized and IP67 options.

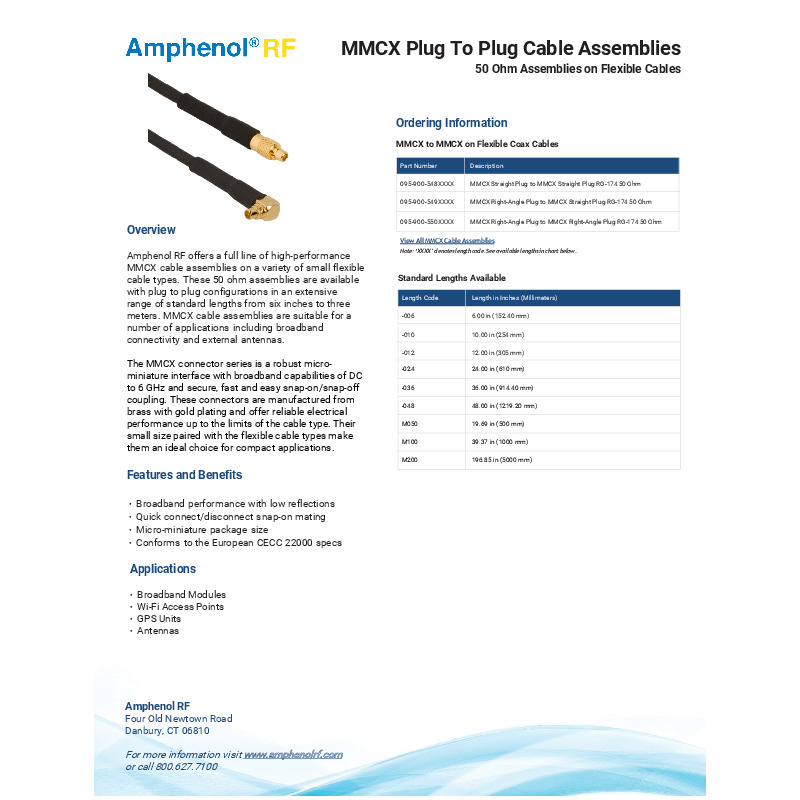

MMCX Plug to Plug Cable Assemblies
Amphenol RF's MMCX Cable Assemblies provide broadband performance with low reflections, featuring quick connect/disconnect snap-on mating in a micro-miniature package size. These 50 ohm assemblies, available in various standard lengths, are ideal for applications such as broadband modules, Wi-Fi access points, GPS units, and antennas, offering reliable performance up to 6 GHz.

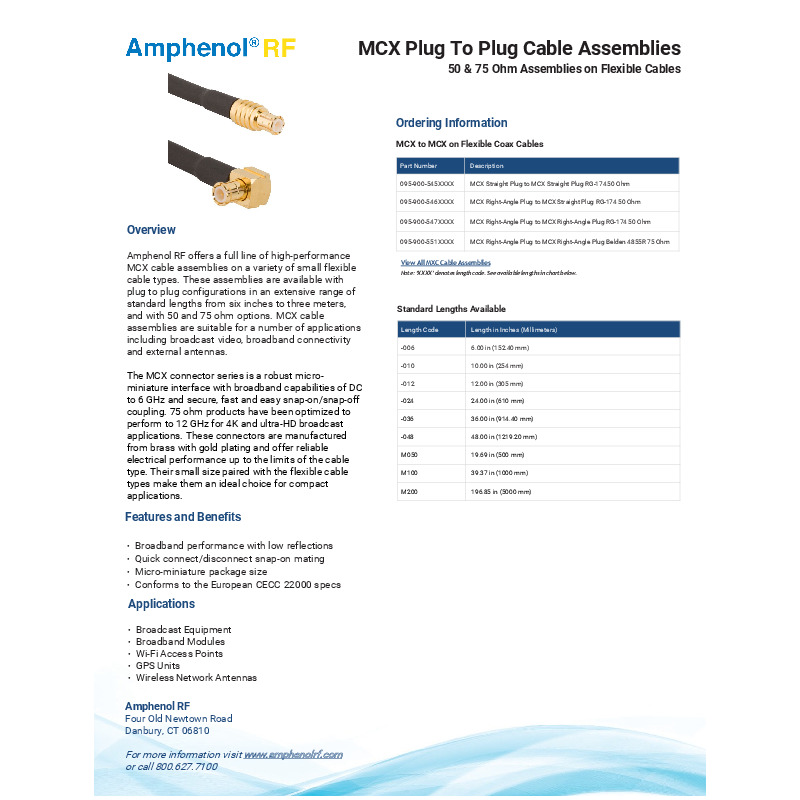

MCX Plug to Plug Cable Assemblies
Amphenol RF's MCX Cable Assemblies provide broadband performance with low reflections, featuring a quick connect/disconnect snap-on mating mechanism. These 50 and 75 ohm assemblies, available in various lengths and configurations, are ideal for broadcast equipment, Wi-Fi access points, GPS units, and wireless network antennas, offering reliable electrical performance up to 6 GHz (12 GHz for 75 ohm products).
50 Ohm SMB Plug to Plug Cable Assemblies
The Amphenol RF SMB Plug to Plug Cable Assemblies datasheet details versatile and reliable 50 ohm assemblies with flexible coax cables, available in various lengths and configurations. These assemblies feature a push-on coupling mechanism, are suitable for applications like test and measurement equipment, and support performance up to 4 GHz (or 1 GHz for RG-174 cables).
BNC UltraFlex Cable Assemblies
Amphenol RF's BNC UltraFlex cable assemblies feature 50 Ohm BNC plug-to-plug configurations on flexible, low-loss LMR-UF cables. These assemblies support high-performance applications in industrial environments, long-distance connectivity, antenna connections, wireless communications, and radar and GPS systems. They offer reliable electrical performance up to 3 GHz, utilize a bayonet coupling mechanism for quick mating, and come in standard lengths from 12 inches to 30 meters. Constructed with machined brass and diecast zinc connectors with nickel plating, these assemblies ensure low attenuation loss and improved shielding for high-frequency applications.
TNC and RP-TNC Cable Assemblies
The Amphenol RF TNCRP-TNC Ultraminiature Cable Assemblies datasheet features 50 ohm assemblies on micro-coax cables, designed for space-constrained applications like IoT infrastructure and consumer devices. These assemblies offer secure mating, weatherproof and tamper-resistant options, and flexible routing within enclosures, supporting frequencies up to 18 GHz and available in standard lengths from 50 to 300 millimeters.
FAKRA to SMA Cable Assemblies
The Amphenol RF FAKRA to SMA Cable Assemblies Datasheet details pre-configured 50 ohm cable assemblies available in various lengths, designed for automotive and industrial applications such as ADAS, GPS, RFID, and wireless infrastructure. These assemblies feature flexible cables and high-quality connectors, providing reliable performance up to 3 GHz without the need for additional tooling.
SMA to AMC Ultraminiature Cable Assemblies
Amphenol RF's SMA to AMC Cable Assemblies feature reliable electrical performance up to 9 GHz, with threaded coupling for secure mating and vibration resistance. Available in IP67 and non-IP67 configurations, these 50 ohm assemblies are ideal for applications such as antennas, base stations, drones, and industrial automation, providing a compact and space-efficient solution with additional protection for harsh environments.
Ruggedized BNC & TNC Cable Assemblies
Amphenol RF's Ruggedized BNC & TNC Cable Assemblies feature IP67 sealed 50 ohm connectors on RG-58 cable, with BNC's quick bayonet coupling and TNC's threaded coupling for stable performance. These assemblies are ideal for industrial, military, and commercial applications, available in standard lengths from 6 inches to 100 feet, with optional PVC armor for enhanced protection in rough environments.

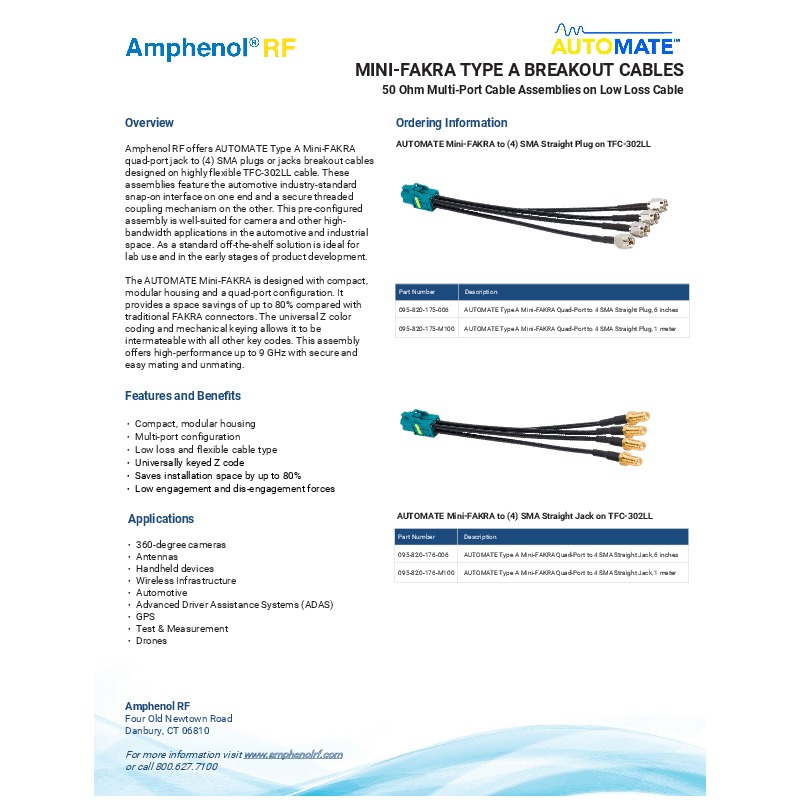

AUTOMATE Type A to Mini-FAKRA to SMA Cable Assemblies
Amphenol RF's AUTOMATE Mini-FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four SMA plugs or jacks, designed on flexible TFC-302LL cable. These assemblies provide up to 80% space savings compared to traditional FAKRA connectors and support high-performance up to 9 GHz. Ideal for automotive applications like 360-degree cameras and ADAS, as well as antennas, handheld devices, and drones, they offer secure, low-engagement force connections with a compact, modular design and universal Z color coding.

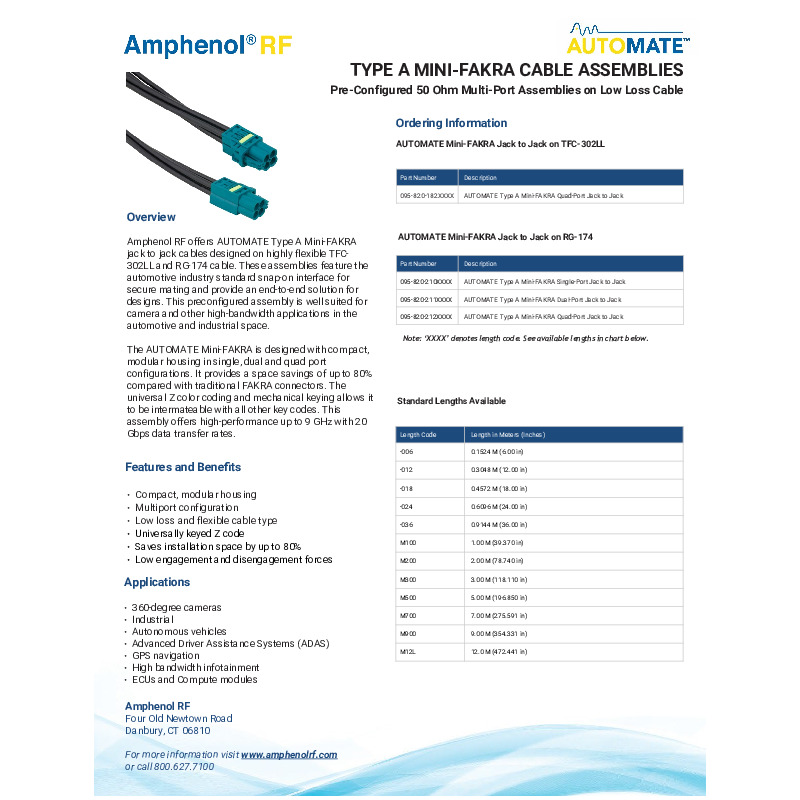

AUTOMATE Type A Mini-FAKRA Cable Assemblies
Amphenol RF's AUTOMATE Mini-FAKRA cable assemblies feature a compact, modular design that offers significant space savings (up to 80%) compared to traditional FAKRA connectors. These pre-configured 50 Ohm multi-port assemblies on low-loss TFC-302LL and RG-174 cables are ideal for high-bandwidth automotive and industrial applications, such as 360-degree cameras, ADAS, GPS navigation, and infotainment systems. They support high performance up to 9 GHz and 20 Gbps data transfer rates, with a universal Z color coding for intermateability and low engagement forces for easy installation.
RP-SMA to AMC Ultraminiature Cable Assemblies
Amphenol RF's RP-SMA to AMC Cable Assemblies offer reliable electrical performance up to 9 GHz, featuring threaded coupling for secure mating and vibration resistance. These assemblies are available in both IP67 and non-IP67 configurations, ideal for applications such as antennas, base stations, drones, and industrial automation, providing a space-efficient solution with a small footprint and low profile.

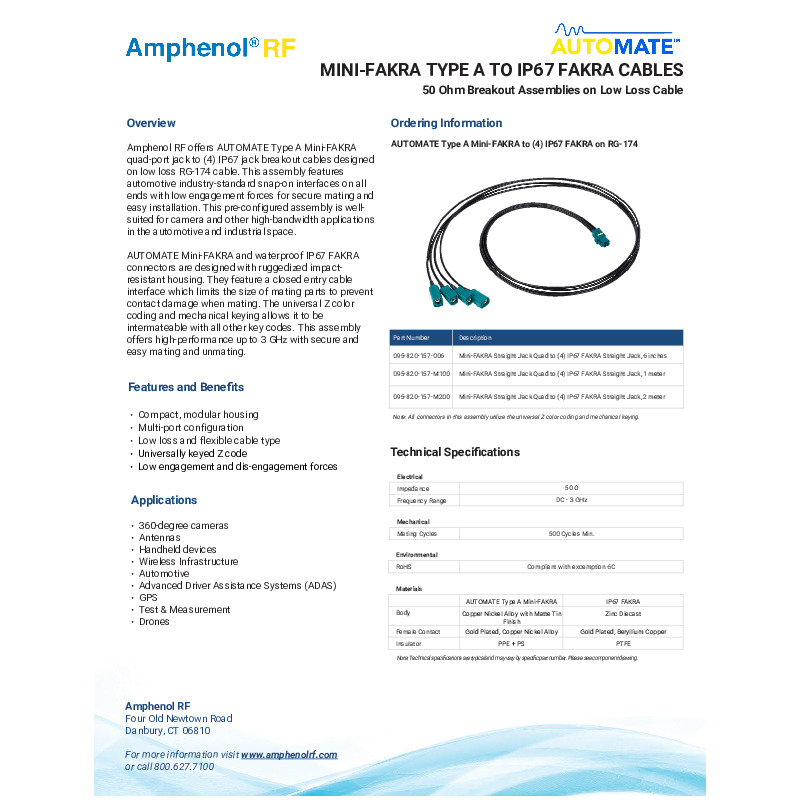

AUTOMATE Mini-FAKRA to FAKRA Breakout Cables
Amphenol RF's AUTOMATE Mini-FAKRA to IP67 FAKRA breakout cables feature a quad-port Mini-FAKRA jack to four IP67 FAKRA jacks on low-loss RG-174 cable. These assemblies, designed for high-bandwidth automotive and industrial applications such as 360-degree cameras and ADAS, offer secure snap-on interfaces with low engagement forces, providing high performance up to 3 GHz. They feature rugged, impact-resistant housing with universal Z color coding and mechanical keying for intermateability, ensuring easy and reliable installation.
MHF I LK Ultraminiature Cable Assemblies
Amphenol RF's Locking MHF I Cable Assemblies feature a patented locking system for tamper-resistant, vibration-resistant performance, available with waterproof IP67 options. These 50 ohm assemblies are ideal for applications such as drones, GPS, and industrial automation, offering reliable electrical performance up to 6 GHz with configurations including SMA, RP-SMA, TNC, and RP-TNC connectors.
Micro-Miniature Cable Assembly Solutions
The Amphenol RF Micro-Miniature Cable Assembly Solutions Guide highlights compact, high-frequency cable assemblies designed for space-constrained applications. It details key features such as lightweight construction, precision performance, and durability, making them ideal for aerospace, medical, and IoT devices.

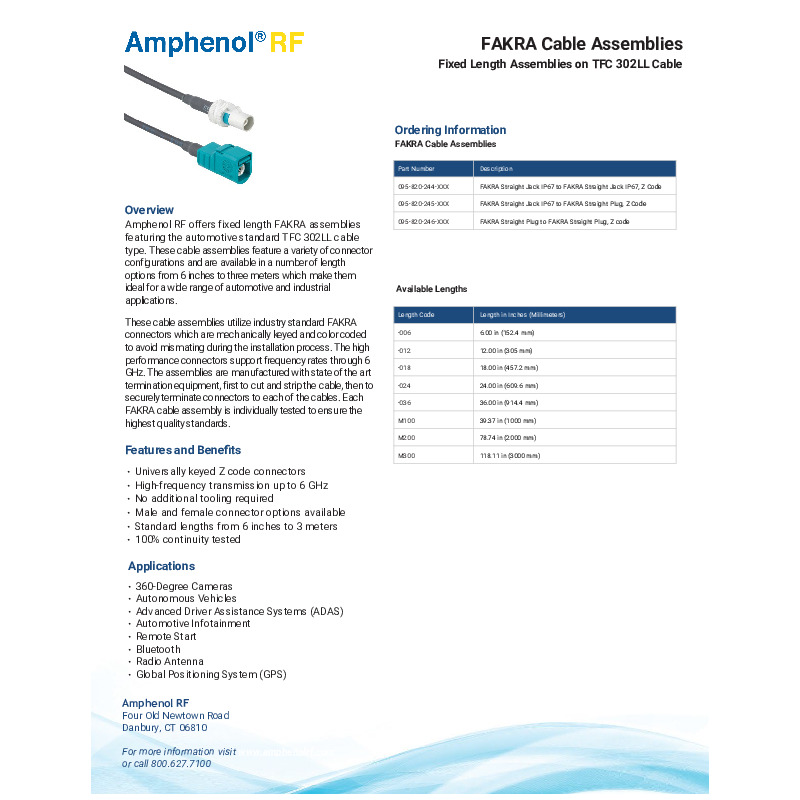

FAKRA Cable Assemblies on TFC 302LL
The Amphenol RF FAKRA Cable Assemblies Overview highlights high-performance TFC-302LL cable assemblies designed for automotive and industrial applications. It details their low-loss characteristics, secure FAKRA connectors, and suitability for high-frequency signal transmission in demanding environments.

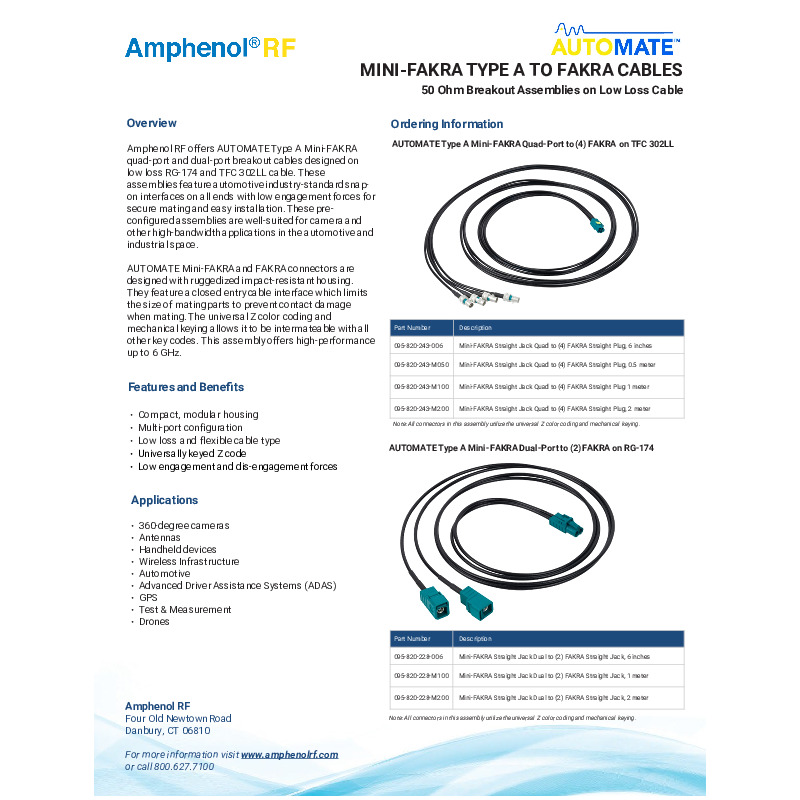

AUTOMATE Mini-FAKRA to FAKRA Cable Assemblies
Amphenol RF's AUTOMATE Type A Mini-FAKRA to FAKRA breakout cables feature compact, modular housings with multi-port configurations, utilizing low-loss, flexible cables. These assemblies are ideal for high-bandwidth automotive and industrial applications, including 360-degree cameras, advanced driver assistance systems (ADAS), and GPS, providing reliable performance up to 6 GHz.

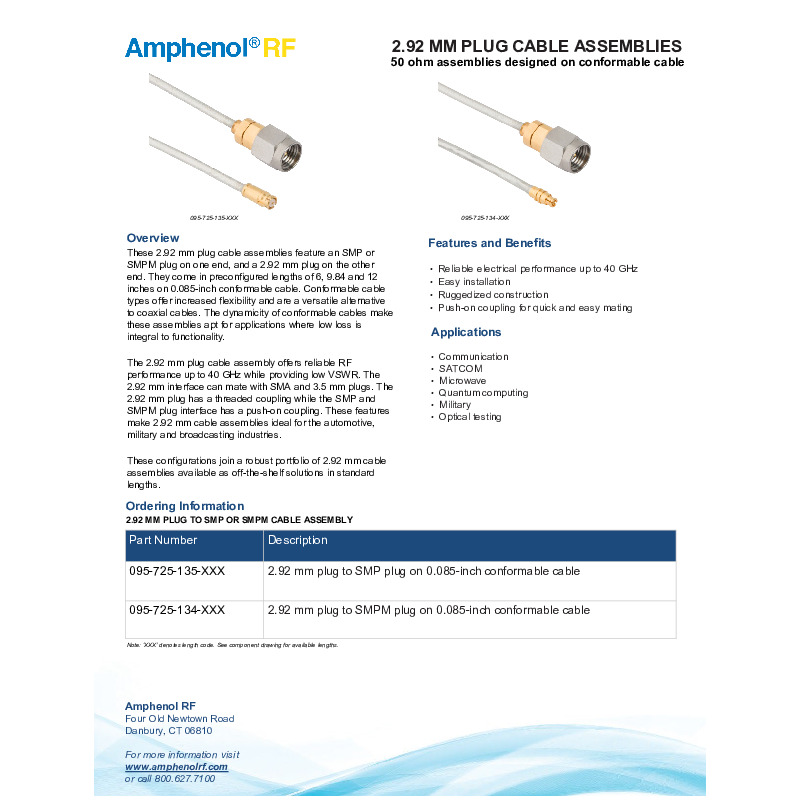

Amphenol RF New 2.92 mm Cable Assemblies Datasheet
Amphenol RF New 2.92 mm Cable Assemblies datasheet with features, benefits, applications, and ordering information.

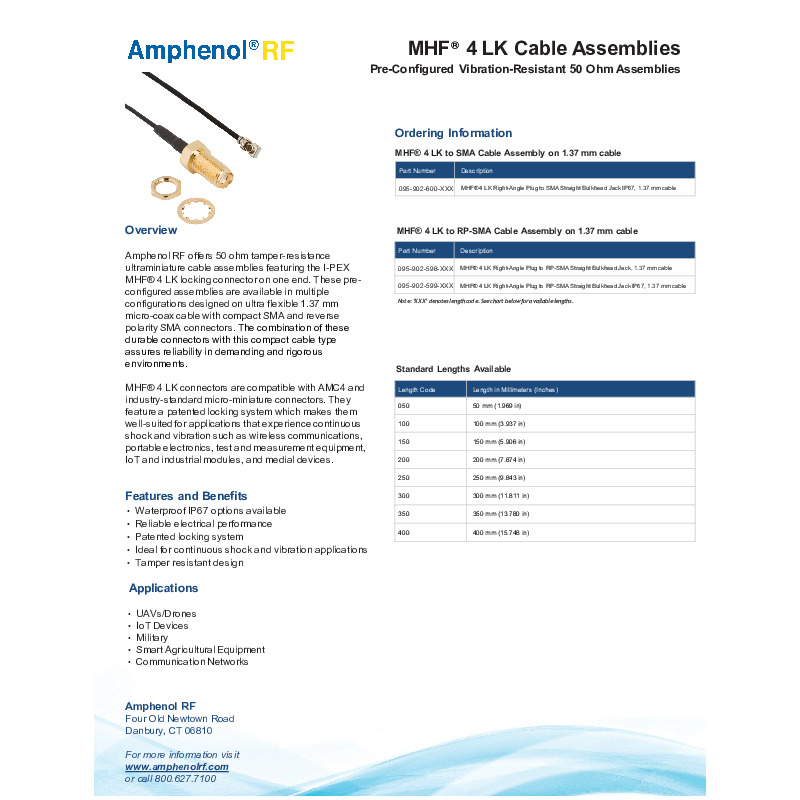

Amphenol RF Locking MHF 4 Ultraminiature Cable Assemblies Datasheet
The Amphenol RF Locking MHF 4 Ultraminiature Cable Assemblies datasheet describes pre-configured, vibration-resistant 50-ohm cable assemblies featuring the I-PEX MHF® 4 LK locking connector. These ultraminiature assemblies are designed with tamper-resistant, waterproof (IP67) options and utilize 1.37 mm micro-coax cable paired with SMA or RP-SMA connectors for reliable electrical performance in rugged environments. Ideal for continuous shock and vibration applications, they are used in UAVs, IoT devices, military systems, smart agricultural equipment, and communication networks. The datasheet also outlines available standard lengths (50–400 mm) and key specifications, including a frequency range up to 9 GHz, 500 mating cycles minimum, and materials such as gold-plated brass and PTFE insulation.
Amphenol RF MCX Cable Assemblies RG-174 Wireless Communication Modules Datasheet
The Amphenol RF MCX Cable Assemblies Data Sheet highlights between-series board-to-panel cable solutions designed for wireless communication modules. These assemblies combine compact MCX interfaces with rugged, sealed bulkhead connectors to enable reliable RF connectivity in space-constrained and environmentally exposed applications.
Amphenol RF MMCX Cable Assemblies RG-174 for Wireless Modules
The Amphenol RF MMCX cable assemblies datasheet outlines pre-configured 50-ohm RF cable solutions using flexible RG-174 coax for reliable connections in wireless communication modules. It highlights available connector configurations, electrical performance characteristics, and suitability for applications such as IoT, GPS, Wi-Fi, and other compact RF systems.

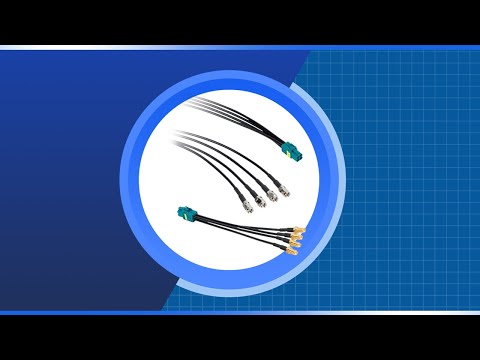

Amphenol RF AUTOMATE Type-A Mini-FAKRA Breakout Cables | Asia New Product Brief
View full article: https://www.allaboutcircuits.com/new-industry-products/amphenol-rf-automate-type-a-mini-fakra-breakout-cables-asia-new-product-brief
The Amphenol RF AUTOMATE breakout cables include a quad-port Type-A Mini-FAKRA jack to four SMA plugs and are designed on low loss TFC-302LL cables. For more information, as well as all the latest All About Circuits projects and articles, visit the official website at http://www.allaboutcircuits.com/
Check out Mouser's profile on All About Circuits and see more
product briefs and articles at https://www.allaboutcircuits.com/author/mouser-electronics
For more new products at Mouser, visit https://www.mouser.com/new/
Register on AAC: https://forum.allaboutcircuits.com/register
Subscribe on YouTube: https://www.youtube.com/c/AllAboutCircuitsVideo
Like us on Facebook: https://www.facebook.com/allaboutcircuits
Follow us on Twitter: https://twitter.com/AllAboutCircuit
Follow us on LinkedIn: https://www.linkedin.com/company/allaboutcircuits
Amphenol RF BNC to MCX Cable Assemblies | New Product Brief
View full article: https://www.allaboutcircuits.com/new-industry-products/amphenol-rf-bnc-to-mcx-cable-assemblies-new-product-brief
View product at Mouser.com: https://bit.ly/2Vp4mmU
Amphenol RF BNC to MCX Cable Assemblies are designed to deliver 4K video and other high bandwidth data on a compact interconnect without compromising signal quality. The cable assemblies offer a 75 ohm impedance and use Belden 4855R cable, ensuring quality transmission from the source to the receiver. For more information, as well as all the latest All About Circuits projects and articles, visit the official website at http://www.allaboutcircuits.com/
Check out Mouser's profile on All About Circuits and see more
product briefs and articles at https://www.allaboutcircuits.com/author/mouser-electronics
For more new products at Mouser, visit https://www.mouser.com/new/
Don't have AAC account yet? Register here! It's free and always will be. https://forum.allaboutcircuits.com/register
Subscribe on YouTube: https://www.youtube.com/c/AllAboutCircuitsVideo
Like us on Facebook: https://www.facebook.com/allaboutcircuits
Follow us on Twitter: https://twitter.com/AllAboutCircuit
Follow us on LinkedIn: https://www.linkedin.com/company/allaboutcircuits
Assembly Guide For Coaxial Connector (TNC)
In this video, we had one of our engineers give a step-by-step tutorial on how to install a coaxial connector (TNC) on an RG-58 cable. This engineer is following our 3 Pc Crimp - Crimp instructions which you can find in the link below, free to download.
Download the 3 Pc Crimp - Crimp assembly instructions here:
https://www.amphenolrf.com/031-2367-rfx.html
For Additional connector instructions:
https://www.amphenolrf.com/rf-connector-assembly-instructions
Check us out on social media:
www.facebook.com/officialAmphenolRF
www.linkedin.com/company/amphenol-rf/mycompany/
https://twitter.com/AmphenolRF
Amphenol - How to Crimp a BNC 3 Piece Crimp Coaxial Connector on RG 59 Cable
3 Step process on how to install Coaxial Connector on RG-59 Cable correctly.

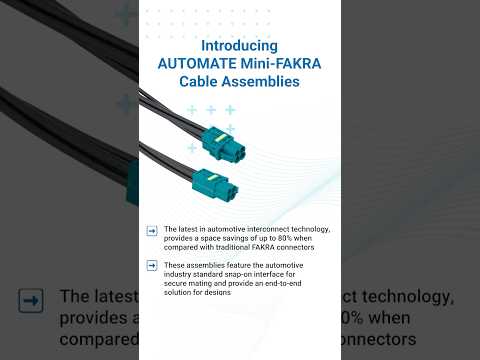

AUTOMATE Mini-FAKRA Cable Assemblies for Compact, Precise Connections
