N-Type Cable Assemblies
Rugged, high-performance RF solutions for demanding outdoor and high-frequency applications
Overview
Amphenol RF’s N-Type cable assemblies are designed for high-reliability performance in harsh environments and high-power RF applications. These assemblies feature robust, threaded connectors that ensure secure mating and long-term mechanical durability, making them ideal for systems exposed to vibration, weather, or demanding field conditions.

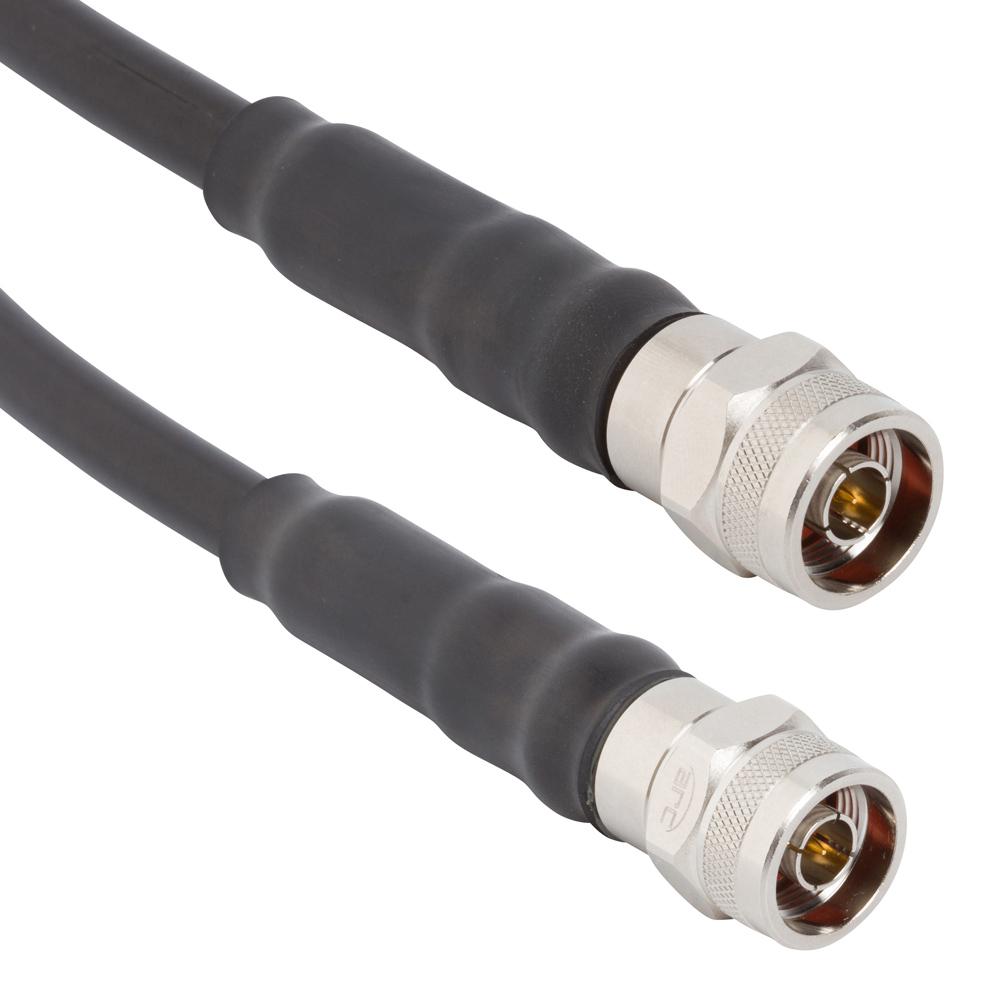

Our standard N-Type assemblies are available in straight and right-angle configurations, supporting a wide range of flexible and low-loss cables. With options for IP67 sealing and precision test assemblies, these products are engineered to maintain low insertion loss and consistent impedance across frequencies up to 11 GHz, offering excellent electrical performance for a variety of RF systems.
Features and Benefits
- Threaded coupling ensures stable, vibration-resistant connection
- IP67 sealed options for protection against moisture and debris
- Precision test cable assemblies available (sweep tested and serialized)
- Broad range of cable types, lengths, and connector configurations
- High-power handling with consistent impedance and low VSWR
- All standard assemblies hi-pot and continuity tested
Key Technical Details
- Connector Series: N-Type (Standard and Precision Test options)
- Impedance: 50 Ohm
- Cable Types Supported: RG-58, RG-142, RG-316, LMR-400, and low-loss test cables
- Orientation Options: Straight and right-angle connectors, bulkhead jack styles
- Finish Options: Nickel and passivated stainless steel for corrosion resistance
Applications
N-Type cable assemblies are commonly used in:- Outdoor wireless infrastructure and base stations
- Antenna connections and RF signal routing
- Test and measurement instrumentation (precision test cables)
- Military and aerospace communications systems
- Radar and GPS systems
- Industrial monitoring and telemetry systems
Browse our selection of standard N-Type cable assemblies to find the right solution for your system requirements. Need a custom length, cable type, or unique configuration? Connect with our engineering team for tailored solutions built to your specifications.
