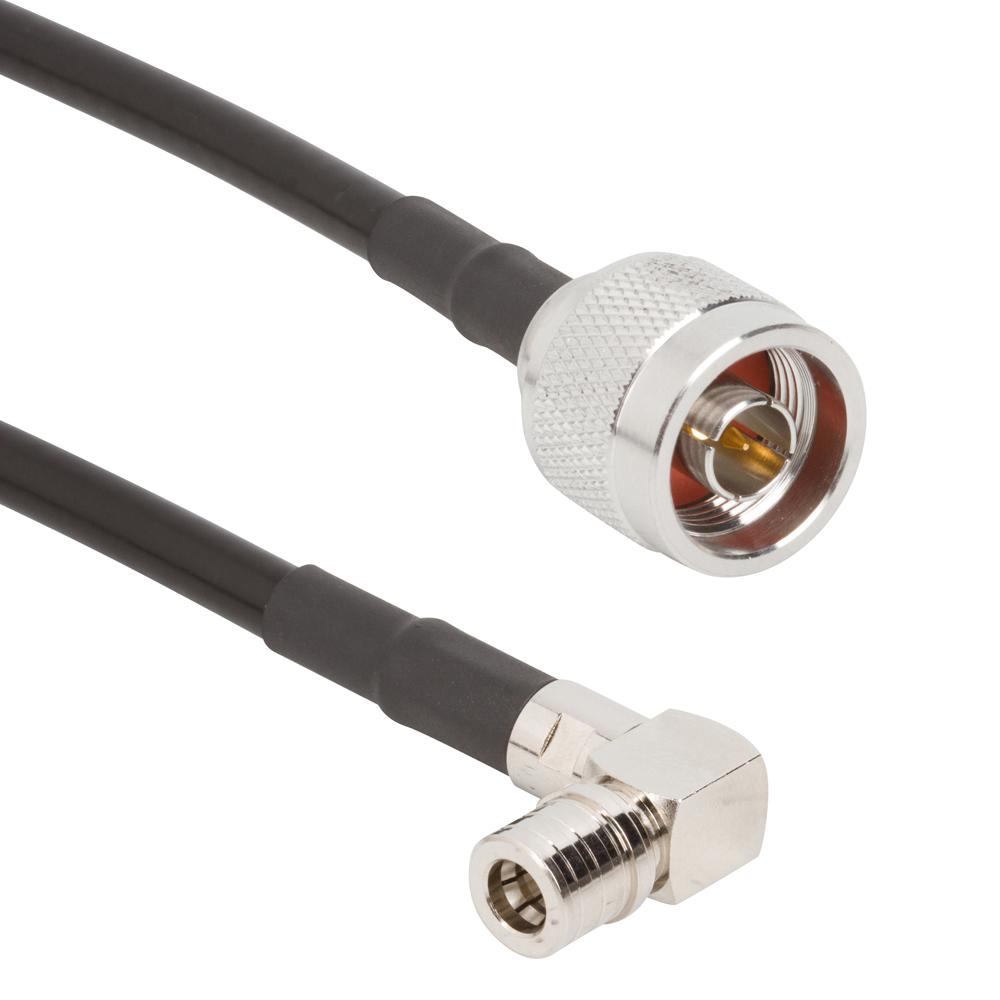

QMA Cable Assemblies
Quick-lock RF solutions engineered for high-performance and rapid installation in demanding applications
Overview
Amphenol RF’s QMA cable assemblies offer a robust and efficient interconnect solution that combines the performance characteristics of traditional threaded interfaces with the convenience of a quick-lock mechanism. Designed for high-frequency applications, these 50 ohm assemblies eliminate the need for torque wrenches and reduce installation time, making them ideal for systems requiring frequent mating and unmating.
Standard QMA cable assemblies are available in a variety of configurations featuring flexible and semi-rigid cable types to suit different system requirements. These assemblies are hi-pot and continuity tested to ensure reliability and consistency. With secure mating, excellent electrical performance and ease of use, QMA assemblies are well-suited for a wide range of RF applications.
Features and Benefits
- Quick-lock push-pull coupling mechanism for rapid, tool-free installation
- Compact and robust interface ideal for high-density applications
- Excellent electrical performance up to 6 GHz
- Available with multiple cable types and connector configurations
- Hi-pot and continuity tested for standard product lines
Key Technical Details
- 50 ohm impedance ensures consistent signal integrity
- Suitable for flexible and semi-rigid cable options
- Mating interface provides stable performance over multiple cycles
- Mechanically keyed design prevents misalignment
- Available in straight and right-angle plug configurations
Applications
- Wireless infrastructure and antenna systems
- Test and measurement environments
- Industrial automation and control systems
- DAS and base station equipment
- RF communication modules requiring quick-connect capabilities
Browse our standard QMA cable assemblies to find the configuration that fits your project requirements. For specialized or custom solutions, contact our engineering team to discuss your application.
All QMA Cable Assembly Categories
Related Resources
In-series and between-series QMA adapters expand quick-locking options
Amphenol RF is pleased to announce the expansion of our QMA adapter product series. Quick-locking adapters are available in both in-series and between-series configurations with N-Type, SMA and TNC options.

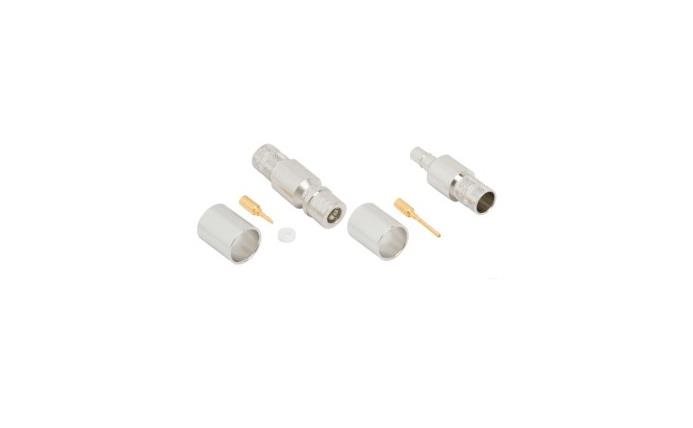

Trusted QMA product line expands to include LMR-400 cable options
Amphenol RF expands legacy QMA line to include configurations compatible with Times Microwave's LMR-400 cable.
SMA Extension Cable Assemblies Datasheet
The Amphenol RF SMA Extension Cable Assemblies datasheet highlights 50 ohm assemblies on TFC 302LL cable, suitable for frequencies from DC to 15 GHz. These extended length assemblies are ideal for applications that require flexibility and signal integrity.
Custom RF Solutions
Amphenol RF provides comprehensive custom RF solutions tailored to meet specific design requirements, from concept through mass production.
SMPM Plug to Plug Cable Assembly Datasheet
The Amphenol RF SMPM Plug to Plug Cable Assemblies datasheet highlights 50 ohm assemblies on conformable and flexible cables, suitable for frequencies from DC to 18 GHz. These micro-miniature, push-on connectors are ideal for high-vibration environments and applications such as antennas, test equipment, military, quantum computing, and radar.
IP67 SMA Cable Assemblies Datasheet
Amphenol RF's IP67 SMA Bulkhead Cable Assemblies feature pre-configured 50 ohm assemblies on flexible RG-316 coaxial cable, designed for both indoor and outdoor applications. These assemblies, available in various lengths, offer secure locking with threaded connectors, providing reliable performance up to 3 GHz, and are ideal for industrial equipment, antennas, and military communications.
Product Overview Brochure
Amphenol RF presents a comprehensive, high-performance portfolio of RF interconnect solutions, engineered to meet the rigorous demands of modern communications and electronic systems across industries. With decades of leadership in coaxial technology, this catalog showcases cutting-edge product lines, each designed for precision, reliability, and adaptability.
Locking SMA Cable Assemblies Datasheet
Amphenol RF's Locking SMA Cable Assemblies are designed for high-frequency applications up to 6 GHz, featuring a threaded SMA connector with a locking mechanism that requires 20N of force to prevent accidental disconnection. Built with gold-plated brass SMA connectors and phosphor bronze MHF I LK locking connectors, these assemblies ensure durability and resistance to harsh environments. The easily routable 1.13 mm cable allows for flexible installation in compact spaces, making them ideal for drones, wireless communications, robotics, IoT, and industrial equipment. Available in standard lengths from 50 to 400 mm, with custom lengths on request, they provide reliable performance in demanding applications.
RP-SMA to AMC4 Cable Assemblies Datasheet
Amphenol RF's RP-SMA to AMC4 cable assemblies provide reliable performance up to 6 GHz in compact applications. Featuring an IP67-rated RP-SMA bulkhead jack for waterproof protection, they use ultra-thin 1.13 mm coaxial cable for easy routing in tight spaces. Available in standard lengths from 50 to 400 mm, with custom options on request, they are made from gold-plated brass and phosphor bronze for durability. Designed for IoT, GPS, wireless communication, and industrial enclosures, they operate from -40°C to 90°C with a 50Ω impedance and 200 VRMS dielectric withstanding voltage.
SMA Cable Assemblies on RG-188 Datasheet
The SMA Cable Assemblies on RG-188 offer reliable high-frequency transmission up to 3 GHz with low loss, low VSWR, and a rugged, threaded coupling for secure installation. Designed for aerospace, industrial, medical, and communication applications, they use flexible, high-shielding RG-188 cable that withstands temperatures up to 205°C. Available in various plug configurations and lengths from 6 inches to 2 meters, they feature a 50Ω impedance, 1000 VRMS dielectric withstanding voltage, and a 500-cycle mating durability. Made with gold-plated brass connectors and PTFE insulation, they operate from -55°C to 165°C and meet RoHS standards.
50 Ohm HD-BNC Cable Assemblies
Amphenol RF's 50-ohm HD-BNC cable assemblies are designed for high-density applications, providing a compact and lightweight solution with a push-and-turn interface for enhanced performance. These assemblies, compatible with industry-standard RG-316 cable, support a frequency range up to 6 GHz and are ideal for telecommunications, instrumentation, radios, military, and industrial applications.
FAKRA to AMC Cable Assemblies
The Amphenol RF FAKRA to AMC Cable Assemblies datasheet highlights fixed-length assemblies designed for automotive and IoT applications. These IP67-rated assemblies combine FAKRA connectors with micro-miniature AMC connectors on 1.37 mm ultra-flexible coax cable, providing compact and sealed solutions ideal for DSRC, V2X, V2V technologies, 360-degree cameras, ADAS, smart boxes, and remote control access.
AMC Connector Series
Amphenol Micro Coaxial (AMC) connectors are low-profile solutions with a 2.5mm mating height and a 3mm x 3mm footprint, designed for portable and mobile devices. These connectors support high-frequency transmission from DC to 6 GHz, feature easy snap-on/off mating, and are compatible with Hirose U.FL and IPEX MHF1 series, making them ideal for applications like antennas, Bluetooth, GPS, WLAN, and cellular devices.
AMMC Connector Series
Amphenol Micro Miniature Coaxial (AMMC) connectors are designed for portable and mobile devices, featuring a low profile with a 1.4 mm mated height and a 2 mm x 2 mm footprint. These connectors support high-frequency transmission from DC to 6 GHz, offer easy snap-on/off mating, and are compatible with Hirose W.FL and IPEX MHF III series, making them ideal for applications such as antennas, Bluetooth, GPS, WLAN, and cellular devices.
ATC-PS Precision Test Cables
The ATC-PS cable assemblies cutsheet provides info for ATC-PS cable assemblies, outlining their technical specifications, features, and applications. It provides precise information on the design and performance characteristics of these cable assemblies, including impedance, frequency range, insertion loss, and durability. The document highlights the materials used, ensuring reliability and high performance in demanding environments. Additionally, it specifies the industries and applications these cable assemblies are designed for, demonstrating their suitability for various high-frequency and precision connectivity needs.
HSD Automotive Cable Assemblies
The Amphenol RF HSD (High Speed Data) Cable Assembly datasheet details fixed-length cable assemblies designed for automotive applications, supporting protocols like LVDS, Ethernet, and USB. These assemblies offer quick push-on mating with color-coded, keyed connectors to prevent mismating, and provide excellent electrical performance through 2 GHz. Applications include infotainment modules, cluster displays, LVDS cameras, and USB connections.
SMA Cable Assemblies on LMR Cable
The Amphenol RF SMA cable assemblies cut sheet details pre-configured assemblies using LMR-195 and LMR-240 cables, ideal for high-performance applications such as base stations, antennas, and telecommunication devices. These assemblies, featuring SMA connectors and Times Microwave LMR cables, operate from DC to 6 GHz, offering lower loss and superior electrical performance with rugged construction. Configurations include straight plug, right-angle plug, and bulkhead jack, available in various lengths and custom options upon request.
SMA to AMC Cable Assemblies
The Amphenol RF SMA to AMC Cable Assemblies cut sheet outlines both IP-67 and non-IP-67 fixed length assemblies designed for various applications. These assemblies feature improved design SMA connectors, offering space-efficient and economical improvements, with support for thicker panels. They are ideal for WLAN, M2M communications, and outdoor equipment, and are available in different configurations with micro-coaxial cables in lengths from 50 mm to 300 mm.
SMP Cable Assemblies
The Amphenol RF SMP Fixed Length Cable Assemblies cut sheet details SMP plug-to-plug cable assemblies using TFlex 405 and .085” conformable cables. These assemblies support frequencies from DC to 26.5 GHz and are ideal for high-vibration applications, offering push-on and snap-on mating styles. Available in lengths from 3 to 36 inches, these assemblies are designed for use in antennas, broadband, military, and instrumentation applications.
SMPM Cable Assemblies
The Amphenol RF SMPM Fixed Length Cable Assemblies cut sheet details micro-miniature SMPM plug-to-plug cable assemblies designed for high-frequency applications up to 20 GHz. These assemblies, available in standard lengths from 3 to 48 inches (or 100 to 2000 millimeters), feature conformable semi-rigid cables in .085" and .047" diameters. Ideal for antennas, backplane, broadband, wireless, military, and instrumentation applications, these assemblies offer push-on mating styles and accommodate both radial and axial misalignment.
Cable Connector Guide
The Amphenol Connex Cable Connector Guide provides an extensive selection of RF connectors and adapters, detailing common parts for popular cable types. The guide emphasizes uncompromised quality, vast selection, and superb technical support, while also offering customization options for specific customer needs. It includes information on crimp tooling compatible with industry-standard crimp die set dimensions, ensuring reliable and efficient assembly.
FAKRA Cable Assemblies
The Amphenol RF FAKRA Cable Assemblies cutsheet details fixed length assemblies using RG-58 and RG-174 cables, featuring FAKRA connectors suitable for high-frequency transmission up to 3 GHz. These universally keyed connectors are available in various configurations and lengths from 12 inches to 5 meters, ideal for automotive applications like ADAS, GPS, and infotainment systems.
QuickBuild RF Custom RF Cable Assemblies
The QuickBuild RF Brochure showcases the ability to deliver custom RF solutions with rapid turnaround times. It details the streamlined process for designing and manufacturing RF cable assemblies, connectors, and adapters, ensuring high performance and reliability. The brochure emphasizes the capability to reduce lead times while maintaining precision and durability, making their solutions ideal for demanding industries such as telecommunications, aerospace, military, and industrial applications.
RP-SMA Cable Assemblies
Amphenol RF's RP-SMA Cable Assemblies feature gold-plated brass bodies and support up to 500 mating cycles, designed for applications requiring low-loss antenna connections. These fixed length assemblies on RG-58, RG-174, and RG-316 cables offer reliable performance up to 5 GHz, ideal for laboratory RF test and measurement, wireless LAN antennas, land mobile radio, and cellular communication systems.
FAKRA to AMC4 Cable Assemblies
The Amphenol RF FAKRA to AMC4 Cable Assemblies Data Sheet highlights a versatile, high-performance interconnect solution designed for automotive, IoT, and compact RF applications. These cable assemblies combine the secure, high-reliability FAKRA interface with the ultra-miniature AMC4 connector, ensuring seamless integration in space-constrained designs without compromising signal integrity. Engineered for low-loss transmission and robust mechanical performance, they are ideal for antenna connections, telematics, and wireless communication systems.

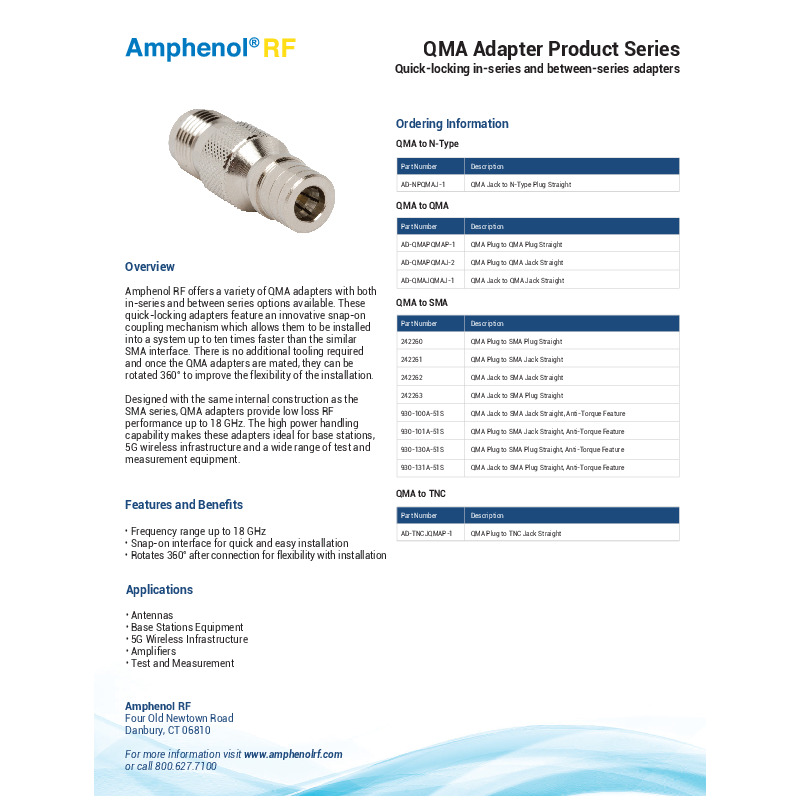

QMA Adapter Product Series
