SMA Cable Assemblies
Versatile, high-frequency solutions engineered for precision RF performance in a wide range of commercial and industrial systems
Overview
Amphenol RF's SMA cable assemblies are designed to deliver reliable, high-performance RF connectivity in demanding environments. Built around the widely-used SMA connector interface, these assemblies offer excellent electrical performance up to 18 GHz, with precision test cable options supporting even higher frequencies. Available in a wide variety of configurations and cable types, these assemblies are ideal for both general-purpose RF applications and high-frequency test environments.
These 50 ohm assemblies are manufactured using industry-standard flexible, semi-rigid, and conformable coaxial cables. All standard SMA cable assemblies are hi-pot and continuity tested, while our precision test cables are sweep tested and serialized for advanced performance assurance. Standard configurations are available off-the-shelf, and custom designs can be developed to suit specific needs.
Features and Benefits
- Broad selection of standard lengths and connector combinations
- Support for frequencies up to 18 GHz (up to 27 GHz with precision test cables)
- Durable brass and stainless steel connector options
- Hi-pot and continuity tested (sweep tested for precision versions)
- Compact threaded coupling ensures secure mating in vibration-prone environments
- Variety of cable types, including RG-58, RG-316, RG-142, and low loss options
- Available IP67 sealed versions for ruggedized applications (as listed on product pages)
Key Technical Details
Amphenol RF SMA cable assemblies utilize a threaded interface that ensures consistent performance and resistance to vibration. These assemblies are well-suited for RF testing, wireless infrastructure, and custom antenna solutions. The SMA interface supports excellent VSWR and low insertion loss, particularly when used with matched cable types and proper installation practices.
Assemblies using stainless steel connectors are rated for higher mating cycles and environmental resilience, while brass options offer cost-effective solutions for commercial deployments. The SMA product line is engineered for both system integration and critical RF testing environments.
Applications
- RF test and measurement
- Antenna and wireless module connections
- Instrumentation and diagnostics
- Cellular infrastructure and DAS (Distributed Antenna Systems)
- Aerospace and defense systems
- Industrial and medical equipment
Browse our selection of standard SMA cable assemblies or contact us to develop a custom solution tailored to your unique application needs.
All SMA Cable Assembly Categories
Related Resources

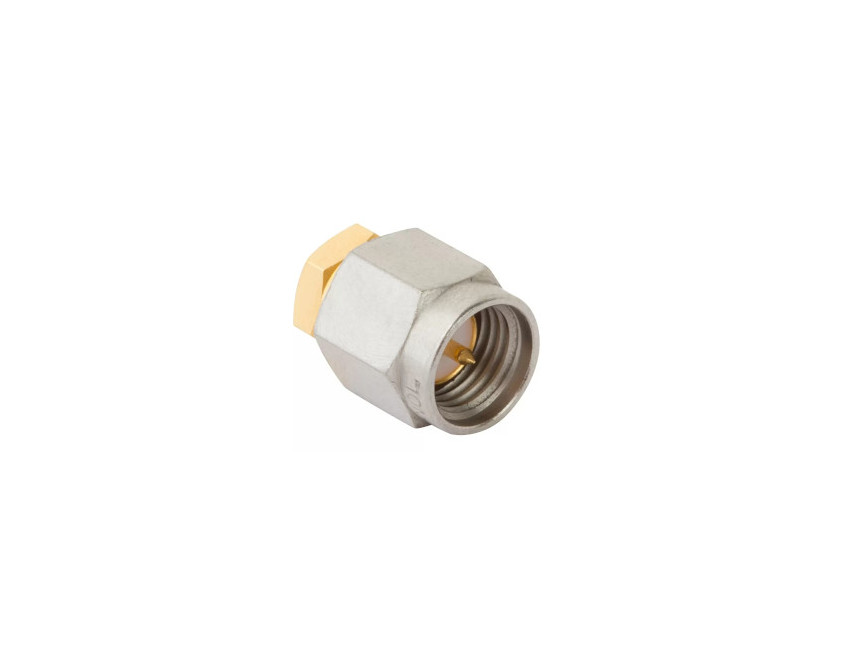

Anti-torque design prevents damage during installation
Amphenol RF is pleased to announce the expansion of our popular SMA product series with additional anti-torque straight solder plug connectors.
Expand automotive test capabilities with low loss SMA connectors
Amphenol RF is pleased to announce the expansion of its SMA product series with 50 ohm connectors optimized for low loss TFC-302LL cable.
Gain high-frequency connectivity and enhanced board stability with new SMA right-angle PCB jack
Amphenol RF is pleased to introduce a new SMA Right-Angle PCB jack into our broad portfolio of SMA connectors.
SMA extension cable assemblies deliver low loss connectivity for automotive and industrial designs
Amphenol RF is pleased to introduce SMA straight plug to straight plug cable assemblies into our expansive interconnect portfolio.
Create connections between vehicles and RF interfaces with new FAKRA to SMA adapters
Amphenol RF introduces high-performance FAKRA to SMA adapters into our extensive catalog of RF interconnect products.
Avoid frequency loss in communication systems with SMA cable assemblies
Amphenol RF is pleased to announce the expansion of our pre-configured cable assembly portfolio with SMA assemblies on low loss LMR-100A cable, manufactured by our sister division, Amphenol Times Microwave.
Secure ultraminiature cable assemblies in high-vibration industrial applications
Amphenol RF is pleased to introduce SMA and TNC to I-PEX's MHF® I LK locking cable assemblies on ultra-flexible 1.13 mm micro-coax cable.
SMA connectors engineered for 0.81 mm and 1.32 mm cable offer lasting and routable RF solutions
Amphenol RF expands its SMA cable assembly portfolio with options compatible with 0.81 mm and 1.32 mm, offering engineers easily-routable solutions for demanding applications.
Lock in a secure connection in vibration-prone environments with locking connector SMA cable assemblies
Amphenol RF is excited to announce the expansion of our locking cable assembly portfolio with configurations utilizing high-frequency SMA connectors.
Face the storm with RP-SMA jack to AMC4 plug assemblies offering weatherproof connectivity
Amphenol RF is pleased to introduce the new RP-SMA bulkhead jack to AMC4 plug micro-miniature cable assembly into our robust and broad portfolio of fixed-length cable assemblies.
Handle the heat: high-frequency SMA cable assemblies on RG-188 cable for extreme temperature applications
Amphenol RF is pleased to introduce the new SMA to SMA plug RG-188 cable assembly into our extensive cable assembly portfolio.
High-performance and flexibility with new SMA to SMP cable assembly configuration
Amphenol RF is pleased to introduce a new configuration of SMA to SMP assemblies to our expansive line of fixed-length cable assemblies.
Utilize waterproof reverse polarity SMA bulkheads in demanding environments
Amphenol RF is pleased to expand our versatile SMA product portfolio with additional reverse polarity bulkhead jacks.
Broaden range of applications with right-angle SMA plugs for micro-coax cable
Amphenol RF is pleased to expand our popular SMA product family with reverse polarity right-angle plug configurations designed to accommodate a variety of flexible micro-coax cable types.
Ensure reliable performance with SMA interconnect designed for extreme exposure
Amphenol RF is pleased to expand our line of extreme exposure RF interconnect with an additional SMA bulkhead jack.
Stay under the radar with black plated RF connectors for covert applications
Amphenol RF is pleased to expand our line of black plated connectors with SMA and N-Type configurations designed for low loss LMR cable types.
.png)
High-frequency SMA connectors reduce frequency range limitations
Amphenol RF is pleased to announce the expansion of its high frequency SMA connector series with extended frequency cable mount connectors supporting up to 34 GHz.
Increase access point capacity with Wi-Fi 6 capable flexible cable assemblies
Amphenol RF is pleased to expand its cable assembly portfolio with reverse polarity (RP) SMA to AMC assemblies on RG-178 cable.
Develop and expand connectivity options for RFID and industrial applications
Amphenol RF is pleased to offer cable assembly configurations featuring popular RF interfaces that are uniquely engineered to support RFID applications.

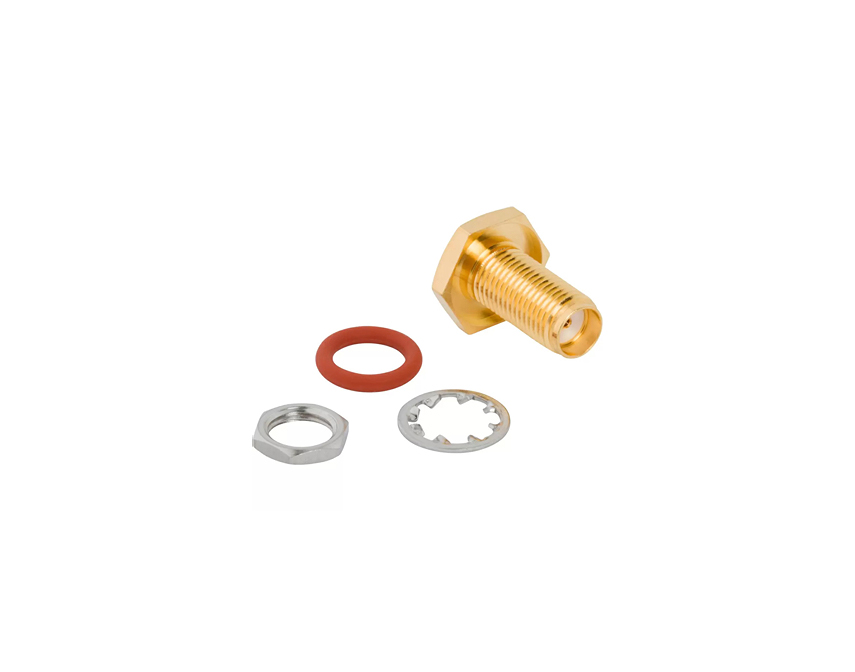

Secure systems in demanding environments with robust IP67 SMA connectors
Amphenol RF is pleased to announce the expansion of our popular SMA product series with additional waterproof IP67 options.
High performance SMA adapter improves VSWR performance
Amphenol RF is pleased to expand our robust adapter portfolio with a high-performance right-angle SMA adapter.

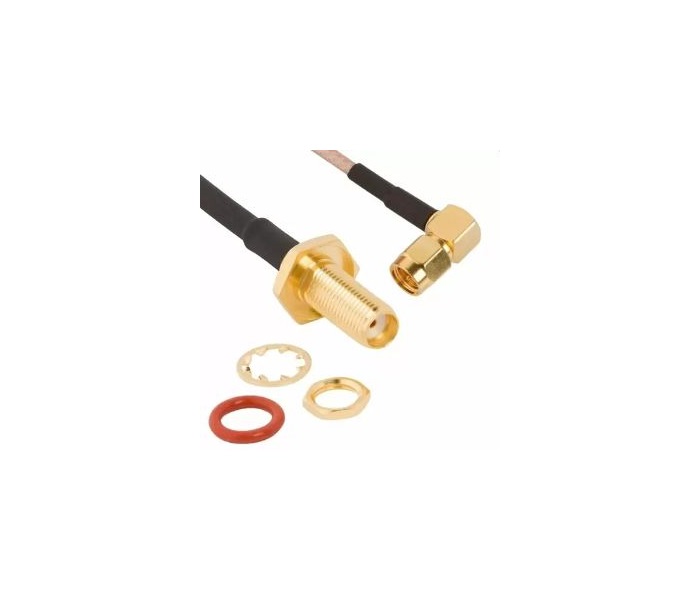

Expand outside safely with IP67 SMA bulkhead cable assemblies
