SMB Cable Assemblies
Compact snap-on RF cable assemblies designed for reliable performance in mid-frequency applications
Overview

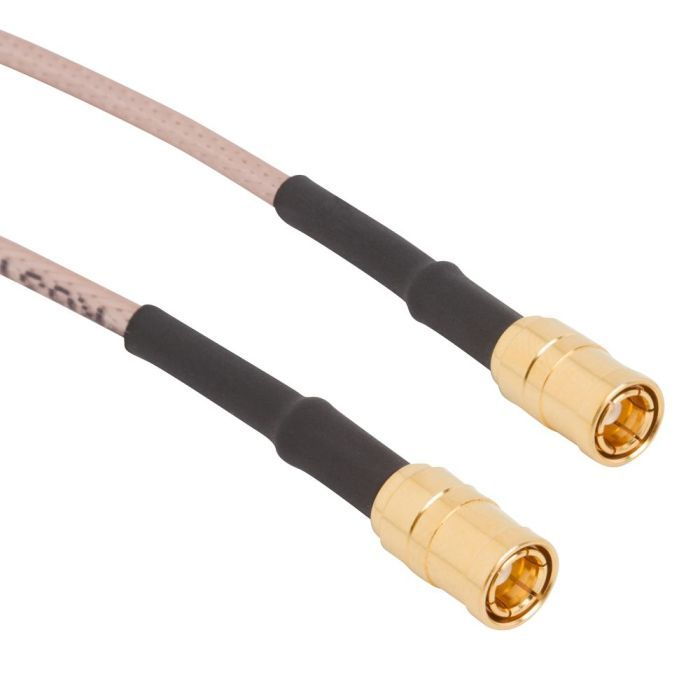

Amphenol RF’s SMB cable assemblies provide secure, quick-connect RF solutions with excellent electrical performance—ideal for high-density applications that require ease of use and consistent connectivity.
SMB cable assemblies from Amphenol RF are engineered to deliver efficient signal transmission in a wide range of RF systems requiring compact size and quick mating. Featuring a snap-on coupling mechanism, these assemblies enable rapid installation and disconnection without compromising on mechanical stability. The 50 ohm SMB interface is designed to support applications operating up to 4 GHz, depending on the cable type, making it suitable for both commercial and industrial environments.
Available in a broad range of standard configurations, SMB cable assemblies utilize flexible coaxial cables like RG-174, RG-316, and RG-58, and are offered with straight or right-angle plug options. These assemblies are hi-pot and continuity tested to ensure reliable performance in the field. For applications in rugged or outdoor environments, IP67-sealed options are also available. The SMB interface provides a balance of size, performance, and user-friendly functionality, making it a dependable choice for system designers and engineers.
Features and Benefits
- Compact snap-on design allows for secure, tool-less connections
- Frequency performance up to 4 GHz (cable dependent)
- Supports 50 ohm systems in high-density layouts
- Available in straight and right-angle plug configurations
- Compatible with common coaxial cables including RG-174, RG-316, and RG-58
- IP67-sealed versions available for environmental protection
- Hi-pot and continuity tested for electrical integrity and quality assurance
Key Technical Details
- Connector Series: SMB
- Coupling Mechanism: Snap-on interface
- Cable Mount Options: Straight and right-angle plug versions
- Cable Types Supported: RG-174, RG-316, RG-58, and similar flexible coaxial cables
- Testing Protocol: Hi-pot and continuity tested on all standard assemblies
- Use Case Fit: Ideal for RF signal interconnects in compact, mid-frequency applications
Applications
SMB cable assemblies are commonly used in:
- Wireless communication equipment
- GPS and location systems
- RF test and measurement devices
- Industrial automation systems
- Consumer electronics
- Medical diagnostics and monitoring platforms
- Military and aerospace subsystems (non-hermetic, standard environments)
Browse our standard line of SMB cable assemblies to find the configuration that fits your design. If your application requires something more specialized, our engineering team can develop a custom solution tailored to your needs.
