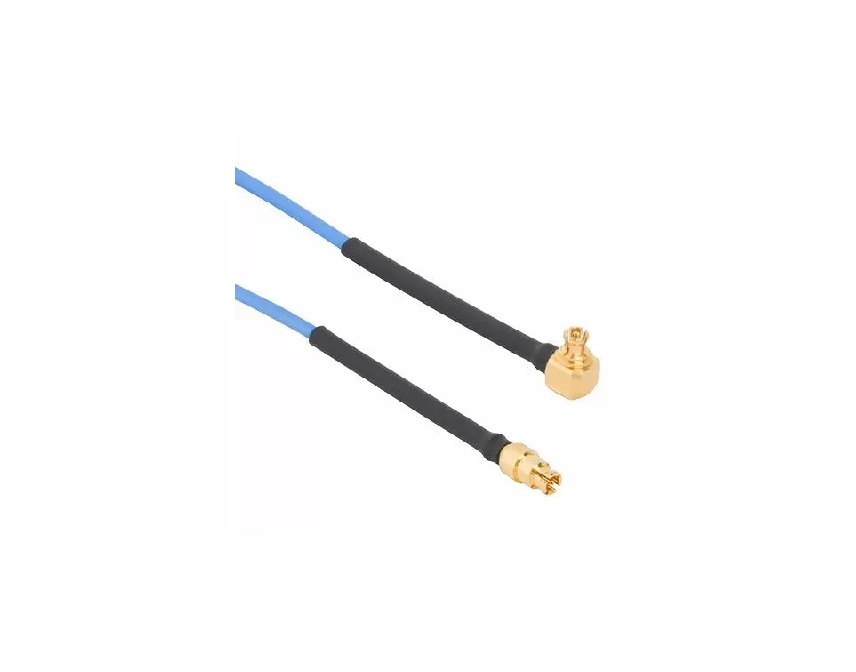

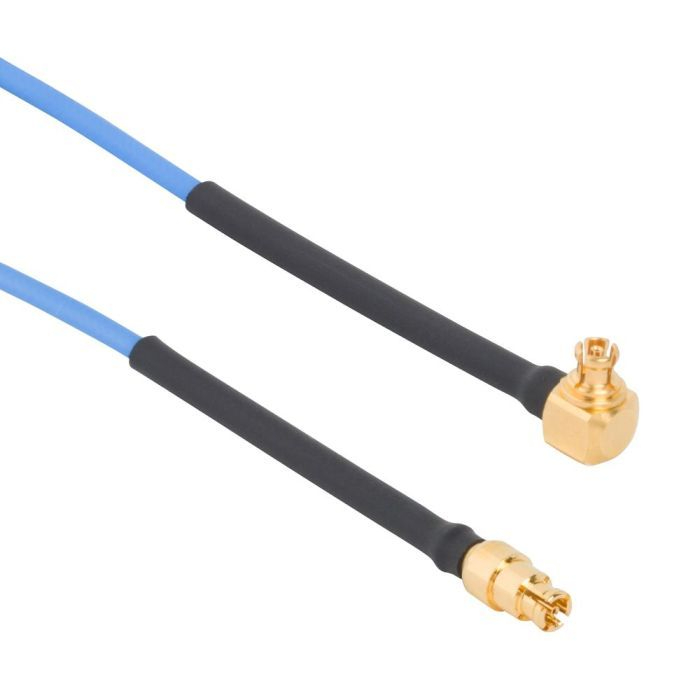

SMPM Cable Assemblies
Micro-miniature, high-frequency cable assemblies designed for compact and high-vibration environments
Overview
Amphenol RF's SMPM cable assemblies are engineered for high-performance RF applications requiring miniaturized form factors and secure push-on mating. These assemblies offer exceptional performance from DC to 18 GHz and are available in various configurations including straight and right-angle plugs, built on conformable, flexible, and semi-rigid cable types.
Available in standard imperial lengths from 3 to 48 inches, and metric lengths from 100 to 3000 millimeters, SMPM cable assemblies are ideal for applications where space savings and frequency integrity are critical. These assemblies are offered with multiple mating detent styles—smooth bore, limited detent, and full detent—ensuring mechanical stability even in high-vibration environments such as military or aerospace electronics.
Features and Benefits
- DC to 18 GHz RF performance for high-frequency signal integrity
- Push-on mating interface enables fast, secure installation
- Micro-miniature footprint is ideal for tight spaces and high-density PCBs
- Compatible with flexible, hand-formable, and RG-178 cable types
- Available with multiple detent options for customizable retention force
Key Technical Details
SMPM cable assemblies are manufactured with a 50 ohm impedance and support multiple cable configurations including RG-178, 0.047”, and 0.085” diameter conformable and flexible cables. They are RoHS compliant and provide high reliability with mating cycle ratings up to 1000, depending on detent style.
Applications
- Antennas and wireless systems
- Test and measurement equipment
- Quantum computing
- Military and defense electronics
- Radar systems
- Instrumentation platforms
Browse our complete line of standard SMPM cable assemblies or contact us for custom solutions to meet your specific design requirements.
All SMPM Cable Assembly Categories
Related Resources
Achieve reliable high-density connections in tight spaces with the new SMP to SMPM adapter
Amphenol RF is pleased to announce the expansion of our coaxial adapter portfolio with a new SMP straight plug to SMPM straight plug adapter offering high-frequency performance in a low-profile package.

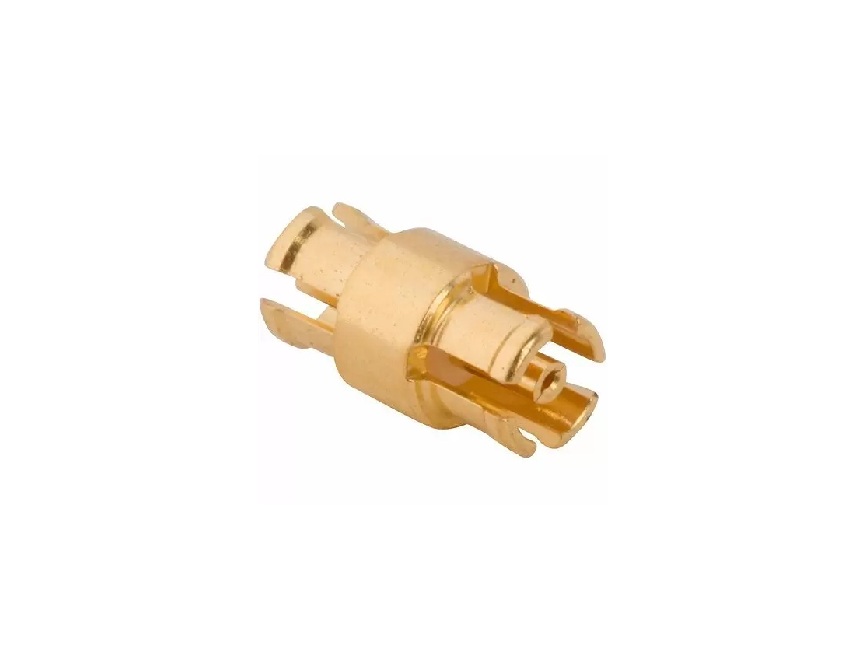

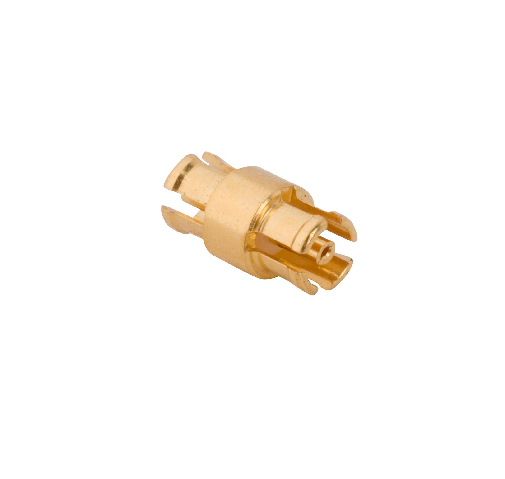

Precisely space PCBs with new SMPM bullet adapter for blindmate applications
Amphenol RF is pleased to announce the expansion of its high-performance SMPM portfolio with an additional bullet adapter length for increased PCB spacing options. This microminiature product series provides a versatile connectivity solution for board-to-board and cable-to-board designs with reliable electrical performance up to 40 GHz.
Save space and boost signal integrity with ultra-compact SMPM to SMPM cable assemblies
Amphenol RF is pleased to introduce the SMPM to SMPM assembly on RG-178 cable into our extensive and diverse portfolio of cable assemblies.

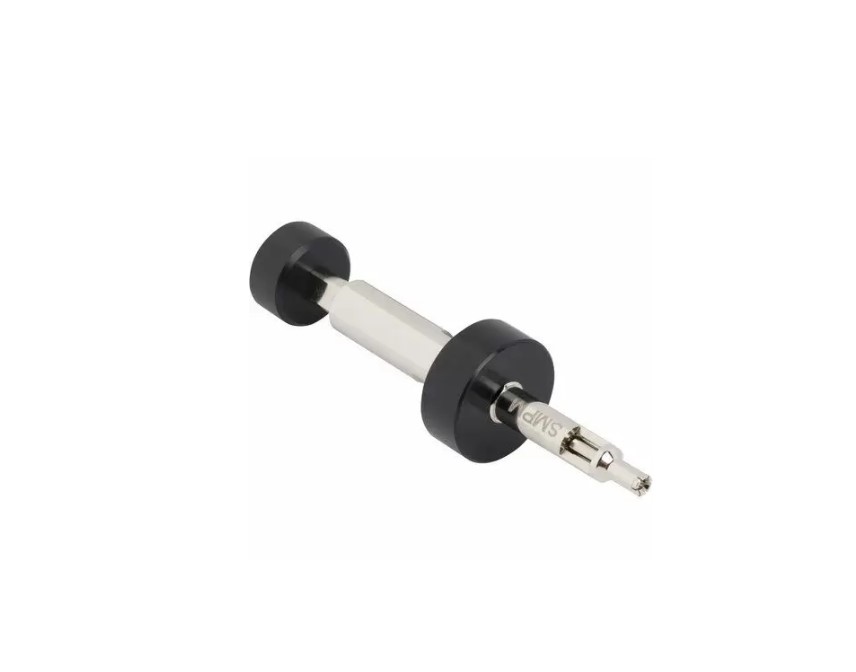

Save time and avoid damage in SMPM maintenance with the new removal and installation tool
Amphenol RF is pleased to introduce the SMPM Bullet Tool into our growing portfolio of tools designed to make installation and removal processes streamlined.
Eliminate magnetic interference and increase performance with new non-magnetic SMPM bullet adapters
Amphenol RF is pleased to introduce new non-magnetic SMPM bullet adapters into our extensive adapter portfolio.
Pre-configured SMPM cable assemblies offer flexibility in compact, high-frequency applications
Danbury, CT – Amphenol RF is pleased to announce the expansion of our cable assembly portfolio with new cable assemblies engineered with straight SMPM plug connectors on compact 0.047-inch cable.
Combat high-vibration environments with SMPM cable assemblies
Amphenol RF is pleased to introduce high-performance SMPM cable assemblies designed on industry‐standard flexible cable types.
Attain unrivaled performance with new 2.92 mm cable assemblies
Amphenol RF is pleased to introduce additional pre-configured 2.92 mm cable assembly configurations which feature a 2.92 mm connector and the option of an SMP or SMPM connector attached on the opposing end.

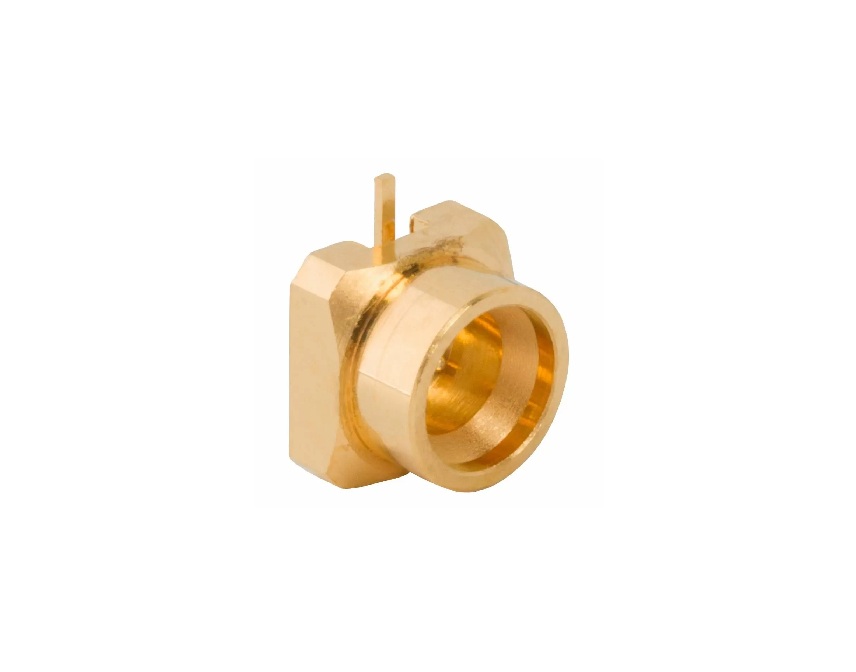

New non-magnetic PCB mounted SMPM options now available
