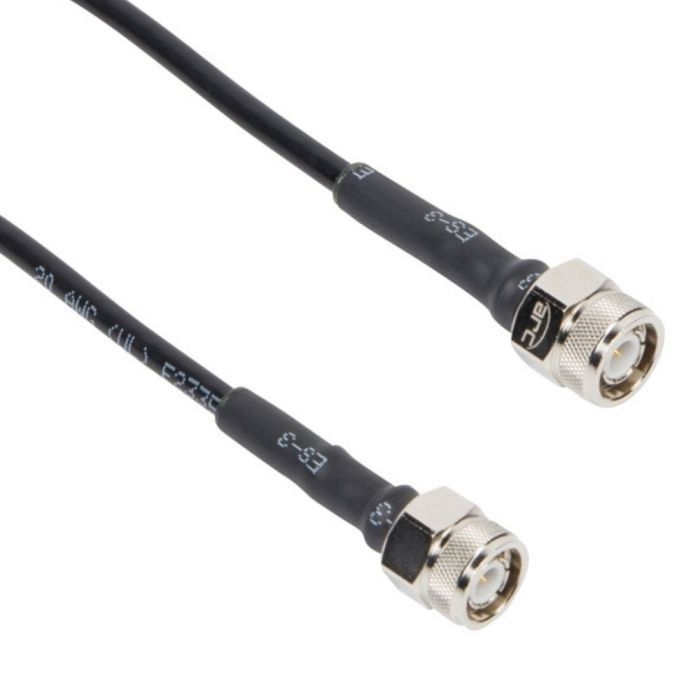

TNC Cable Assemblies
Rugged, threaded solutions for reliable RF performance in demanding environments
Overview
Amphenol RF's TNC cable assemblies offer robust performance in high-vibration and outdoor applications where secure connections are paramount. Featuring a threaded coupling mechanism, TNC assemblies provide excellent resistance to environmental and mechanical stress, making them ideal for industrial and wireless communications markets.
Available in a wide range of configurations using high-quality flexible, semi-rigid, and conformable cables, our TNC cable assemblies are engineered to deliver consistent RF performance across multiple frequency bands. These standard solutions are designed and manufactured to precise specifications, ensuring repeatability, durability, and reliability in critical RF systems.
Features and Benefits
- Threaded coupling provides secure, vibration-resistant connection
- IP67 sealed versions available for waterproof and dustproof protection
- Precision-machined components ensure low VSWR and consistent impedance
- Standard and custom lengths available to suit diverse installation needs
- Wide variety of cable types used, including RG-58, RG-316, RG-142, and others
- Tested for quality – hi-pot and continuity testing ensures assembly integrity
Key Technical Details
- Connector Series: TNC (Standard and Reverse Polarity options)
- Cable Types Supported: RG-58, RG-316, RG-174, RG-142, and others
- Mounting Styles: Straight, right-angle, bulkhead, and panel mount options
- Plating Options: Nickel, gold
- Configurations: Plug-to-plug, plug-to-jack, and jack-to-jack
- Between series cable assemblies available with: SMA, BNC, MCX and more
Applications
TNC cable assemblies are widely used in applications requiring rugged and reliable RF connections, including:
- Wireless infrastructure and base stations
- Test and measurement systems
- Industrial automation and controls
- Military and aerospace electronics
- IoT and smart device integration
- GPS, WLAN, and cellular communication systems
Explore our wide range of standard TNC cable assemblies designed to meet the needs of various RF systems. If you require a tailored solution, our engineering team is available to assist with custom configurations to match your unique application requirements.
