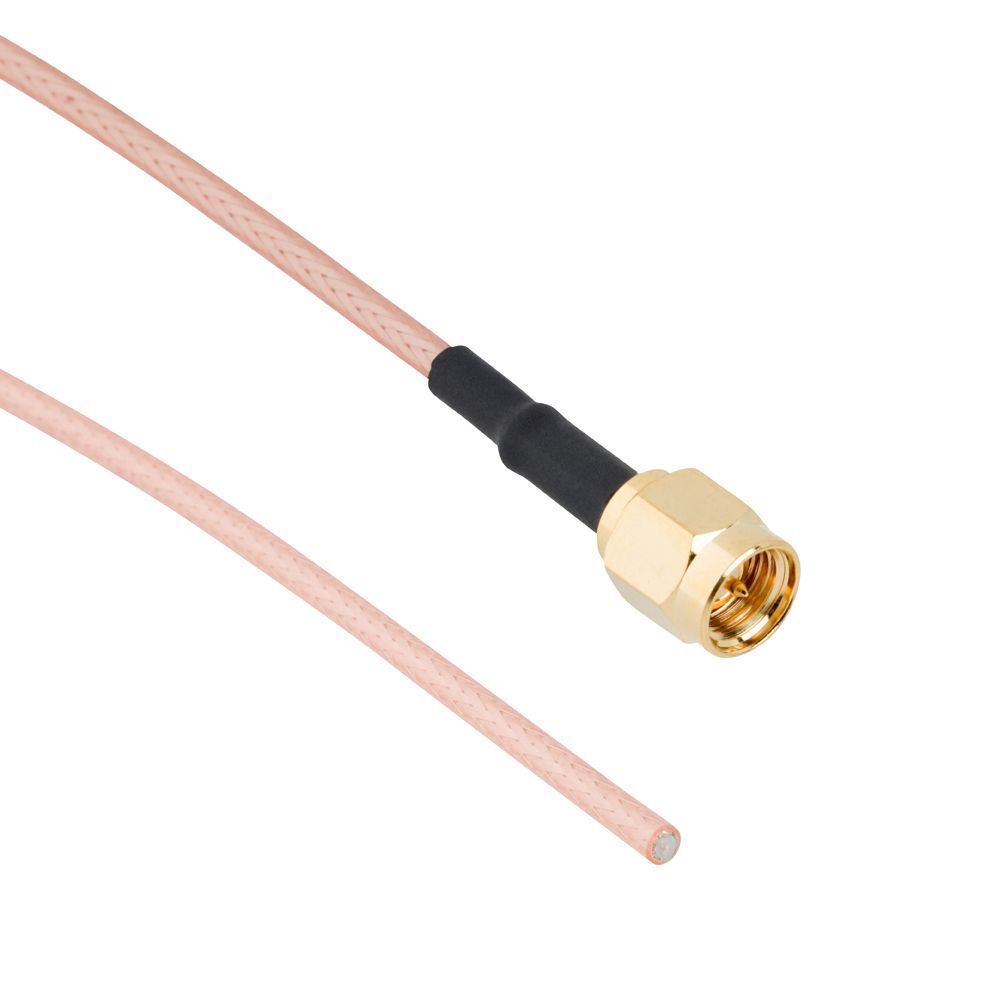

Unterminated Cable Assemblies
Flexible cable assembly solutions ready for custom termination in a variety of RF applications
Overview
Amphenol RF's unterminated cable assemblies offer a versatile solution for engineers and system designers who require customizable RF interconnects for prototyping, testing, or final system integration. These assemblies are manufactured using high-quality coaxial cables without pre-attached RF connectors, allowing for complete freedom when terminating with the connector of your choice.
Available in various cable types and lengths, unterminated cable assemblies are ideal for time-sensitive development cycles or field modifications where specific connector requirements may vary. Each assembly is fully hi-pot and continuity tested to ensure high performance and electrical reliability. They can be easily paired with Amphenol RF’s wide range of coaxial connectors to meet unique mechanical and electrical specifications.
Features and Benefits
- Offers connector flexibility for custom or evolving requirements
- Ideal for prototyping, testing, and on-site modifications
- Hi-pot and continuity tested for reliability
- Available in a variety of standard cable types and lengths
- Compatible with a broad range of Amphenol RF connectors
Key Technical Details
- Available on multiple standard coaxial cable types including RG-58, RG-174, RG-316, and more
- Standard lengths range from 6 inches to 36 inches (custom lengths available upon request)
- Designed for compatibility with most Amphenol RF connector series
- Assembled in ISO-certified manufacturing environments
- Suitable for indoor lab and light industrial environments
Applications
- Custom RF test setups
- System development and field prototyping
- Lab and bench testing environments
- Broadcast and communications infrastructure
- Industrial and RF module assembly
Browse our selection of unterminated cable assemblies to find the ideal solution for your design requirements. If your application calls for a specific cable type, length, or custom configuration, please contact us to discuss a tailored solution with our engineering team.
