RF Connectors
Amphenol RF has the industry’s largest portfolio of interconnect solutions suited to deliver reliable signal integrity for PCB, cable and antenna systems.
Overview
Amphenol RF delivers reliable signal integrity with coaxial connectors and engineered interfaces for PCB, cable and antenna systems across wireless infrastructure, broadcast, instrumentation, industrial and mobile markets, from ultraminiature PCB mounted connectors to high-power designs for cables and board-to-board transitions.
RF Connector Features and Design
These RF connectors cover 50 Ω and 75 Ω impedances with select 78 Ω, 100 Ω and non-constant impedance options, frequency ranges from DC to 40 GHz and beyond in selected series and coupling styles such as threaded, bayonet, push-on, snap-on abd blind mate for secure, tool-free mating in high-vibration environments. Form factors range from ultraminiature to large for high-power, low-loss needs, with rugged sealed options including large-form 7-16 series with IP-rated protection and terminations for flexible, semi-rigid and conformable cables plus SMT, through-hole, end-launch and board-to-board PCB connections.
RF Connector Technical Specifications
Typical impedance is 50 Ω with many 75 Ω or other versions to match available to match system or cable requirements, while frequency performance is connector-series dependent with standard models covering DC to 6 GHz, 18 GHz, 26 GHz, 40 GHz or higher depending on design and cable interface. Mating cycles vary by series and termination style, ultraminiature types often support fewer cycles than rugged large-form designs, and many connectors operate from about -65 °C to +165 °C with special options such as quick-mate, push-on or snap-on interaces, threaded couplings and IP67/IP68 sealed variants for outdoor use.
RF Connector Applications and Markets
Amphenol RF connectors are used in wireless infrastructure including base stations, small cells, distributed antenna systems and MIMO architectures; broadcast and video systems including 12G SDI; test and measurement and other precision instrumentation; and rugged industrial and transportation systems. Board-to-board and board-to-cable RF interconnects support compact devices, medical equipment, aerospace platforms and other high-density electronics. The full Amphenol RF connector portfolio can be explored by impedance, form factor, coupling style or application, or work with our global engineering team to develop custom RF interconnect solutions tailored to your specifications.
Featured Products
All Connector Products
Related Catalogs
Related Resources
.png)

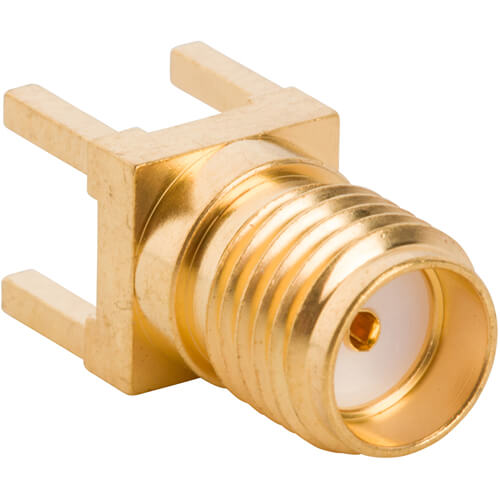

High-frequency SMA connectors reduce frequency range limitations
Amphenol RF is pleased to announce the expansion of its high frequency SMA connector series with extended frequency cable mount connectors supporting up to 34 GHz.
Custom RF Solutions
Amphenol RF provides comprehensive custom RF solutions tailored to meet specific design requirements, from concept through mass production.
Product Overview Brochure
Amphenol RF presents a comprehensive, high-performance portfolio of RF interconnect solutions, engineered to meet the rigorous demands of modern communications and electronic systems across industries. With decades of leadership in coaxial technology, this catalog showcases cutting-edge product lines, each designed for precision, reliability, and adaptability.
2003 Full Line Product Catalog
The Amphenol 2003 Full Line Catalog features a comprehensive range of connectors, including subminiature (MMCX, MCX, 1.0/2.3, SMB, SMC, SMA), miniature (BNC, TNC, Reverse Polarity), and standard types (Twinaxial, Twin BNC, Triax, UHF, Mini-UHF). Each section provides detailed specifications, available configurations, and applications for various industries, such as telecommunications, instrumentation, military, and industrial use. The catalog also includes cable assembly instructions and a glossary for additional support.
2006 Full Line Product Catalog
The Amphenol 2006 Full Line Catalog includes a comprehensive range of connectors and cable assemblies for various applications. The catalog also covers environmental compliance and quality assurance measures, showcasing Amphenol's commitment to reliable and high-performance interconnect solutions.
Connex Product Catalog
The Amphenol Connex Catalog features a comprehensive range of high-quality RF and microwave coaxial connectors, suitable for various applications including instrumentation, military-aerospace, broadband, RFID, and telecommunications. It offers a wide selection of connectors such as MMCX, MCX, SMA, SMB, BNC, TNC, UHF, and 7/16, along with custom cable assemblies and robust technical support.
2.2-5 Connector Series
The Amphenol RF 2.2-5 Product Data Sheet highlights the 2.2-5 connector series, designed for high-performance RF applications requiring compact size, low PIM, and superior electrical performance. This connector series is engineered to support high-frequency, low-loss signal transmission, making it ideal for 5G networks, small cells, and distributed antenna systems (DAS). With a rugged, weatherproof design, these connectors ensure reliable performance in harsh environments while maintaining ease of installation through various coupling mechanisms, including threaded, push-pull, and hand-screw options.
4.3-10 Connector Series
The 4.3-10 Connector Cut Sheet provides a detailed overview of the 4.3-10 RF connector series, designed for superior performance in high-frequency applications. This document outlines the key features of the 4.3-10 connectors, including their low PIM (Passive Intermodulation) performance, compact design, and high durability, making them ideal for telecommunications, wireless infrastructure, and RF signal transmission. The connectors are engineered for easy installation, offering a user-friendly interface with threaded, push-pull, and hand-screw coupling mechanisms to ensure secure connections.
18 GHz N Type Connector Series
Amphenol RF's 18 GHz N-Type connectors extend the frequency range of the traditional N-Type product line to 18 GHz, providing excellent low PIM performance in a durable, medium-sized package. These connectors are ideal for rugged, outdoor applications requiring high power handling and vibration resistance, with applications in microwave, wireless infrastructure, and radar systems.
AMC Connector Series
Amphenol Micro Coaxial (AMC) connectors are low-profile solutions with a 2.5mm mating height and a 3mm x 3mm footprint, designed for portable and mobile devices. These connectors support high-frequency transmission from DC to 6 GHz, feature easy snap-on/off mating, and are compatible with Hirose U.FL and IPEX MHF1 series, making them ideal for applications like antennas, Bluetooth, GPS, WLAN, and cellular devices.
Field Installable N Type Connector Series
The Field Installable N-Type Connector Cut Sheet presents a high-performance N-Type connector designed for quick and efficient field installation without requiring special tools. Engineered for low-loss, high-frequency applications, this connector ensures secure and reliable RF connections in demanding environments. It features a rugged, weatherproof design, making it ideal for outdoor and industrial use, while its low PIM (Passive Intermodulation) performance supports high-quality signal integrity.
PSMP Connector Series
The Amphenol RF PSMP Cut Sheet highlights the PSMP connector series, a versatile RF solution engineered for high-power applications requiring robust performance and flexibility. This series is designed to handle high-frequency signals with excellent electrical performance, making it ideal for base stations, power amplifiers, and industrial applications. The PSMP connectors feature a compact, high-reliability design with options for smooth bore and full detent mating styles, ensuring secure connections while accommodating misalignment.
AMMC Connector Series
Amphenol Micro Miniature Coaxial (AMMC) connectors are designed for portable and mobile devices, featuring a low profile with a 1.4 mm mated height and a 2 mm x 2 mm footprint. These connectors support high-frequency transmission from DC to 6 GHz, offer easy snap-on/off mating, and are compatible with Hirose W.FL and IPEX MHF III series, making them ideal for applications such as antennas, Bluetooth, GPS, WLAN, and cellular devices.
HD-EFI Connector Series
The HD-EFI product series by Amphenol RF offers micro-miniature interfaces designed for high-performance applications with a frequency range from DC to 6 GHz. These 50 ohm products are ideal for board-to-board applications, featuring versatile PCB mounts and bullet lengths, and providing up to 1.4 mm axial and radial float. HD-EFI connectors are available in various configurations, including through-hole, surface mount, edge launch, and thread-in, and support blind mating with crash-proof designs.
Sealed FAKRA Connector Series
The "Sealed FAKRA Cut Sheet" highlights FAKRA/USCAR mechanical coding for connectors. These connectors are designed for secure and reliable automotive applications, featuring mechanical and color coding to prevent mismating. The sealed FAKRA connectors are IP67 rated, providing protection against dust and temporary submersion in water, making them ideal for use in harsh environments.
Connectors Optimized for Low Loss Cables
The "Connectors Optimized for Low Loss Cables" guide by Amphenol RF features redesigned SMA, TNC, and N-Type connectors specifically tailored for Low Loss cables. These connectors, which include straight and right-angle plugs and jacks, provide enhanced shielding, improved grounding, and low signal loss for applications requiring high reliability, such as smart city infrastructure and IoT antenna systems. They support frequencies up to 12.4 GHz for SMA and 6 GHz for TNC and N-Type connectors, ensuring consistent electrical performance and quick, secure assembly with standard hex crimp tooling.
SMA Panel Mount Receptacles
The Amphenol RF SMA Panel Mount Receptacles cut sheet details high-performance connectors supporting frequencies from DC to 18 GHz. These stainless steel receptacles are available in multiple panel mounting configurations, including 2 and 4-hole flanges, with various termination options such as post contacts, solder cups, and tab contacts. The connectors are suitable for applications like RF amplifiers, microwave filters, and power dividers, offering excellent VSWR performance and robust mechanical construction.
Cable Connector Guide
The Amphenol Connex Cable Connector Guide provides an extensive selection of RF connectors and adapters, detailing common parts for popular cable types. The guide emphasizes uncompromised quality, vast selection, and superb technical support, while also offering customization options for specific customer needs. It includes information on crimp tooling compatible with industry-standard crimp die set dimensions, ensuring reliable and efficient assembly.

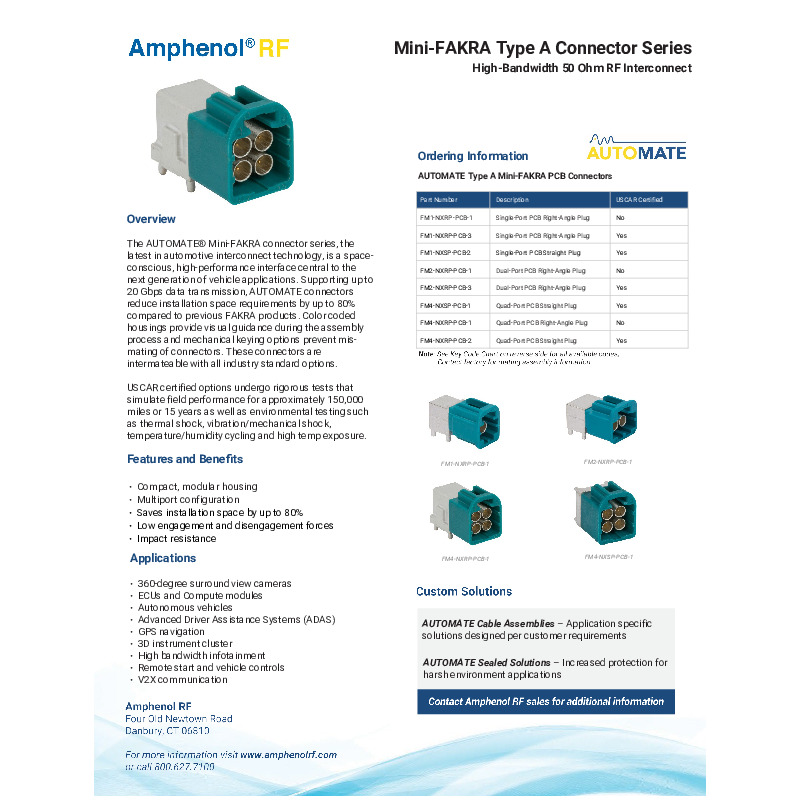

AUTOMATE Type A Mini-FAKRA
The Amphenol RF AUTOMATE Type A Mini-FAKRA connector series offers a high-performance, space-efficient solution for automotive applications, supporting data transmission up to 20 Gbps. These connectors feature a compact, modular housing that saves up to 80% installation space compared to traditional FAKRA connectors and are available in single, dual, and quad-port configurations. They are ideal for applications such as 360-degree surround view cameras, ADAS, GPS navigation, high-bandwidth infotainment, and V2X communication. The connectors provide low engagement and disengagement forces, impact resistance, and visual guidance through color-coded housings to prevent mis-mating.
