1.0-2.3 Connectors
Compact, push-pull RF connectors for high-density broadcast and telecom applications
Overview
Amphenol RF’s 1.0-2.3 connector series provides a reliable and space-efficient solution for high-performance RF signal transmission. These compact connectors feature a convenient push-pull locking mechanism, making them ideal for applications where quick installation and high-density panel configurations are critical. With options supporting both 50 ohm and 75 ohm systems, 1.0-2.3 connectors offer mechanical stability and strong electrical performance in demanding environments.
These connectors are widely used in telecommunications, broadcast video, and instrumentation due to their small form factor and secure coupling system. Available in straight and bulkhead panel-mount configurations, 1.0-2.3 connectors are engineered for compatibility with a range of coaxial cable types and meet industry standards for performance and durability.
Features and Benefits
- Space-saving design for high-density PCB or panel layouts
- Quick and secure push-pull coupling for tool-less installation and removal
- Available in 50 Ω and 75 Ω versions to support both RF and broadcast applications
- Durable construction with precision-machined bodies and gold-plated contacts
- Reliable performance across a range of frequencies and environments
Key Technical Details
- Supports data transmission up to 10 GHz for 50 Ω and up to 4 GHz for 75 Ω
- Push-pull design reduces mating time and ensures proper engagement
- Compact footprint enables use in tightly spaced system configurations
- Available in both cable-mount and panel-mount formats
- Designed for use in modular, high-frequency, and high-density applications
Applications
- Broadcast video systems – including SDI and HD-SDI up to 3G
- Telecommunications infrastructure – where panel space is limited
- Test and measurement equipment – offering secure, repeatable connections
- High-density backplanes and enclosures – supporting compact RF signal paths
- Data and control systems – that require quick-disconnect RF links
Browse our full portfolio of 1.0-2.3 connectors to find the configuration that matches your cable type, impedance, and mechanical layout. If your application requires a customized solution or engineered variation, contact our team for assistance.
Specifications
1.0-2.3 Connector
50 Ohm
Electrical
| Impedance | 50 Ohm |
| Frequency Range | DC - 10 GHz |
| Voltage Rating | 250 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 750 VRMS Max |
| VSWR (Return Loss) | |
DC - 1 GHz |
1.052 (-32 dB) Max |
1 - 4 GHz |
1.15 (-23 dB) Max |
4 - 10 GHz |
1.38 (-16 dB) Max |
| Insulation Resistance | 10000 MΩ Min |
| Center Contact Resistance | 6 mΩ Min |
| Outer Contact Resistance | 3 mΩ Min |
| RF Leakage | -90 dB Min (DC - 1 GHz) |
| Insertion Loss | .1 √(f(GHz)) dB Max |
| Power Handling | 133 W @ 1 GHz @ 25 ºC |
Environmental
| Temperature Range | −40°C to +155°C |
Mechanical
| Mating Cycles | 500 Min |
| Coupling Mechanism | Push-Pull |
| Interface Specification | DIN 41626, 47297, NFC 93-571 |
75 Ohm
Electrical
| Impedance | 75 Ohm |
| Frequency Range | DC- 3 GHz (0 - 12 GHz on Extended Range Designs) |
| Voltage Rating | 250 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage | 750 VRMS Max |
| VSWR (Return Loss) | |
DC - 2 GHz |
1.22 (-20 dB) Typ. |
| Insulation Resistance | 10000 MΩ Min |
| Center Contact Resistance | 6 mΩ Min |
| Outer Contact Resistance | 3 mΩ Min |
| RF Leakage | -90 dB Min (DC - 1 GHz) |
| Insertion Loss | .1 √(f(GHz)) dB Max |
| Power Handling | 133 W @ 1 GHz @ 25 ºC |
Environmental
| Temperature Range | −40°C to +155°C |
Mechanical
| Mating Cycles | 500 Min |
| Coupling Mechanism | Push-Pull |
| Interface Specification | DIN 41626, 47297, NFC 93-571 |
Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.
Interface Dimensions

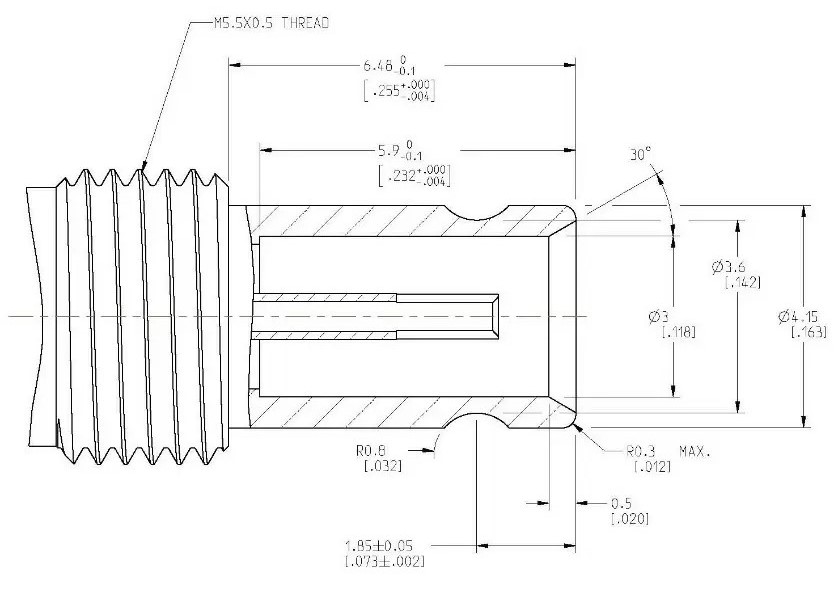

Jack

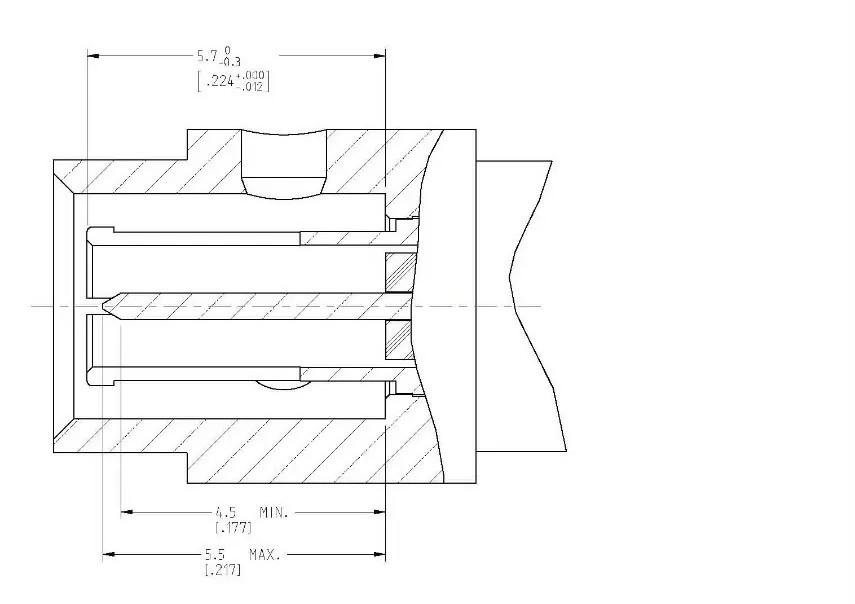

Plug
