2.92 mm Connectors

Amphenol RF’s 2.92 mm connector series, commonly known as “K connectors,” offer precision-engineered performance tailored for satellite communications, lab instrumentation and test environments. With an air dielectric and compact design, these connectors maintain exceptional RF characteristics while supporting seamless mating with SMA, 3.5 mm and other K-type interfaces. Their rugged construction ensures reliable operation in demanding settings.

Built to the MIL‑STD‑348 interface standard, 2.92 mm connectors feature low VSWR, excellent return and insertion loss and high power-handling capability—extending usable bandwidth up to 40 GHz. A shorter pin ensures that the outer bodies engage before the contacts, reducing wear and extending connector lifespan. These features make them ideal for high-frequency, high-reliability applications.

Features and Benefits

• High-frequency capability – Operates up to 40 GHz with low VSWR and excellent return/insertion loss
• Interoperable design – Threaded interface compatible with SMA, 3.5 mm,and other K-type connectors
• Rugged and durable – Threaded coupling and machined bodies designed for frequent mating cycles
• Power-capable and reliable – Handles high RF power in laboratory or field deployments

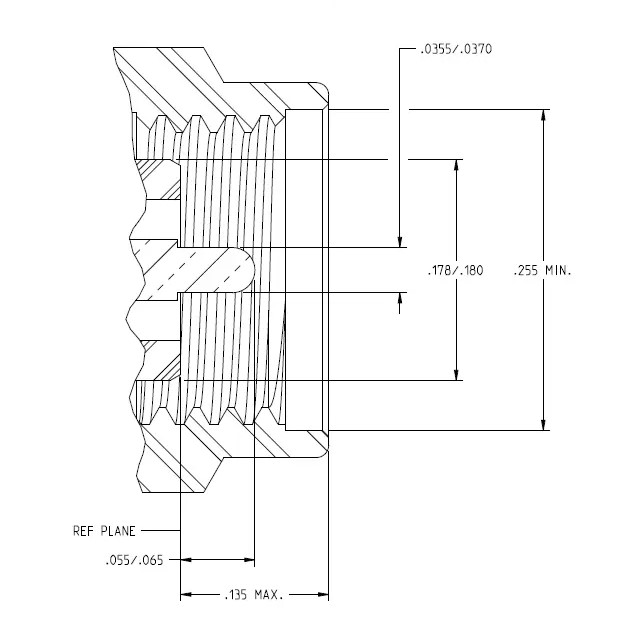

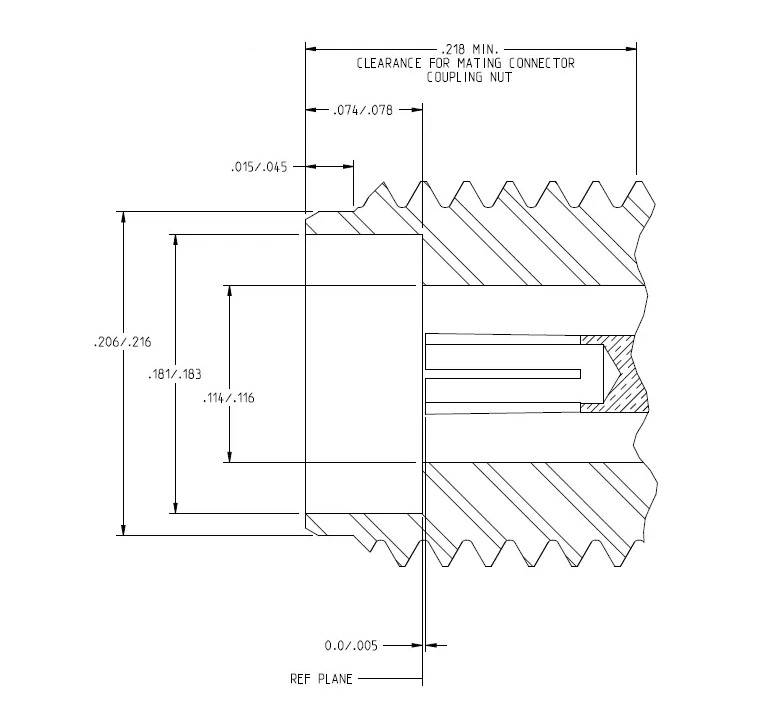

• MIL-standard compliance – Meets MIL‑STD‑348 dimensional standards for consistent performance

Key Technical Details

• Air dielectric construction enables superior high-frequency performance
• Threaded coupling ensures secure mechanical connection and EMI shielding
• Intermateable with SMA and 3.5 mm connectors thanks to a shorter male pin design
• Gold-plated stainless steel bodies and beryllium copper contacts provide corrosion resistance and low signal loss
• Precision design supports both in-line and bulkhead mounting configurations

Applications

• Laboratory and bench testing – Suitable for VNAs, spectrum analyzers and calibration equipment
• SATCOM infrastructure – Ideal for terrestrial satellite and ground station RF interfaces
• Quantum computing and microwave research – Reliable for advanced high-frequency experimental setups
• Optical and millimeter-wave instrumentation – Ensures signal purity and repeatability in precision measurements
• High-end aerospace & defense systems – Rugged enough for demanding operational environments

Browse our complete range of 2.92 mm connectors—including in-line plugs, panel-mount jacks and cable assemblies. If you require a custom cable build or application-specific connector variant, contact our technical team to explore tailored solutions.
