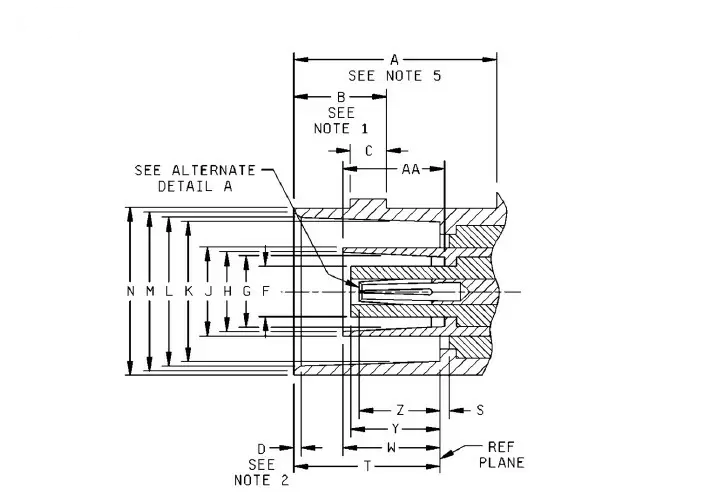

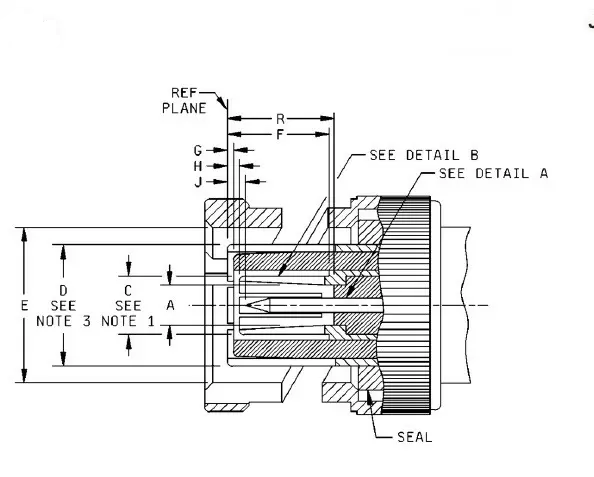

RP-Triax Connectors

Amphenol RF’s RP-Triax connectors are engineered for extreme applications where extra shielding, high voltage capability and rugged reliability are essential. The reverse-polarity (“RP”) configuration prevents accidental mating with standard Triax connectors, ensuring RF safety and compliance.

Designed for high-stakes environments—from nuclear chambers to industrial automation—these connectors deliver outstanding EMI/RFI protection, ease of assembly with clamp or solder methods and robust mechanical resilience up to 500 mating cycles.

Features and Benefits

• Enhanced RF isolation: RP design prevents mismating with standard Triax, offering superior shielding in sensitive systems
• High-voltage capability: Up to 5 kV peak with PTFE insulators—suitable for high-temperature and nuclear-rated use

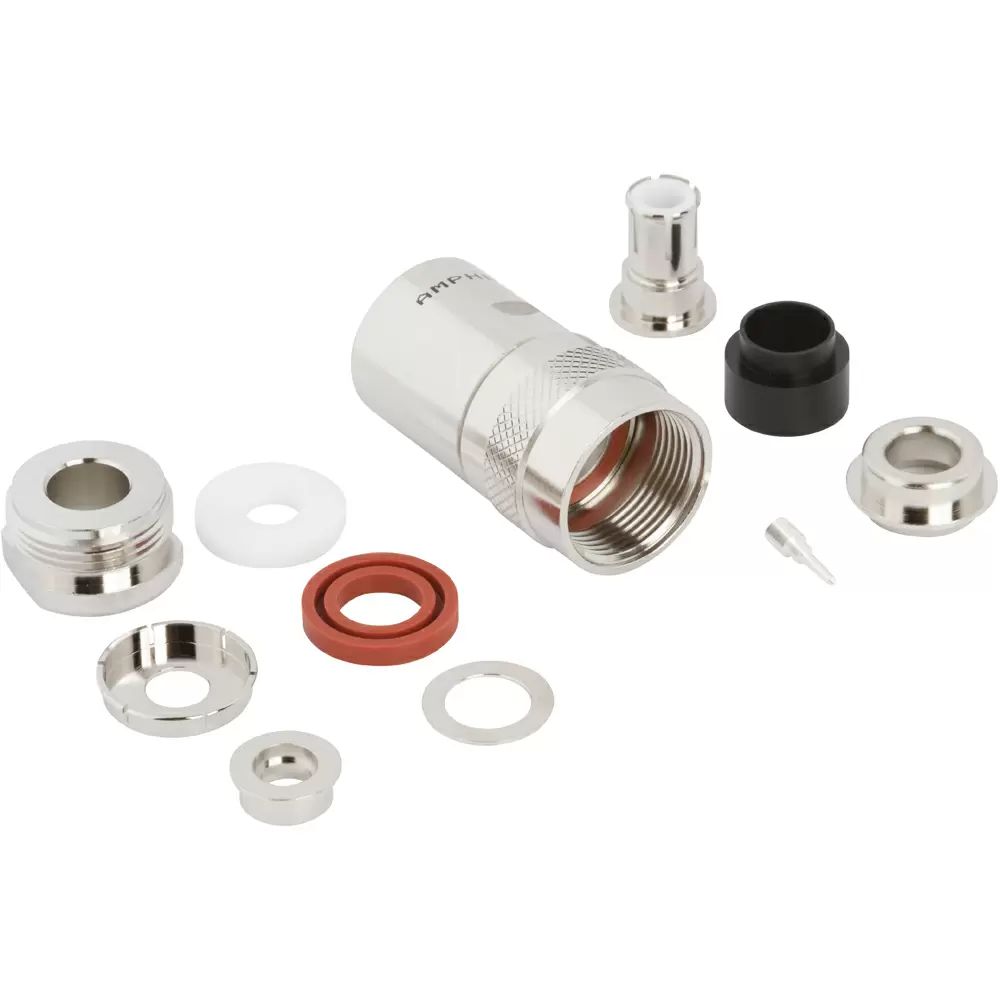

• Rugged mechanical construction: Precision-machined brass with clamp or solder assembly, rated ≥ 500 mating cycles
• Versatile interfaces: Available in 7/8‑20 and 11/16‑24 threaded Triax C, BNC and TNC coupling styles
• Custom insulator options: Support specialty materials, including nuclear-grade Rexolite

Key Technical Details

• Impedance: Non-constant—compatible with 50, 75, or 93 Ω triax cables
• Voltage rating: Up to 5 kV peak (PTFE)
• Assembly: Clamp or solder; no special crimp tools needed
• Coupling types: Threaded Triax C, BNC, TNC, reverse‑polarity
• Mating reliability: ≥ 500 cycles

Applications

• Nuclear instrumentation and reactor diagnostics
• High-shielding medical and scientific equipment
• Industrial automation in high-noise environments
• Military-grade communications and sensor systems

Explore our standard RP-Triax models for high-voltage, high-shielding needs or contact us for custom insulator materials, connector styles or configurations.
Browse our catalog for ready‑to‑order RP‑Triax connectors and datasheets.
