Tools

Amphenol RF’s RF Tools collection provides engineers and technicians with the essential instruments needed to build, maintain and service coaxial cable assemblies with confidence. Our tools—including crimp tools, insertion/extraction tools and spanner nut wrenches—are designed to ensure proper connector termination, accurate contact engagement and secure panel mounting. They support consistent, high-quality performance in both lab and field environments.

Manufactured to match Amphenol RF connector and cable specifications, these tools deliver repeatable results and maintain signal integrity throughout installation and maintenance work. From micro-coax terminations to standard SMA and N-Type assemblies, each tool is optimized for the demands of high-frequency, high-reliability systems.

Features and Benefits

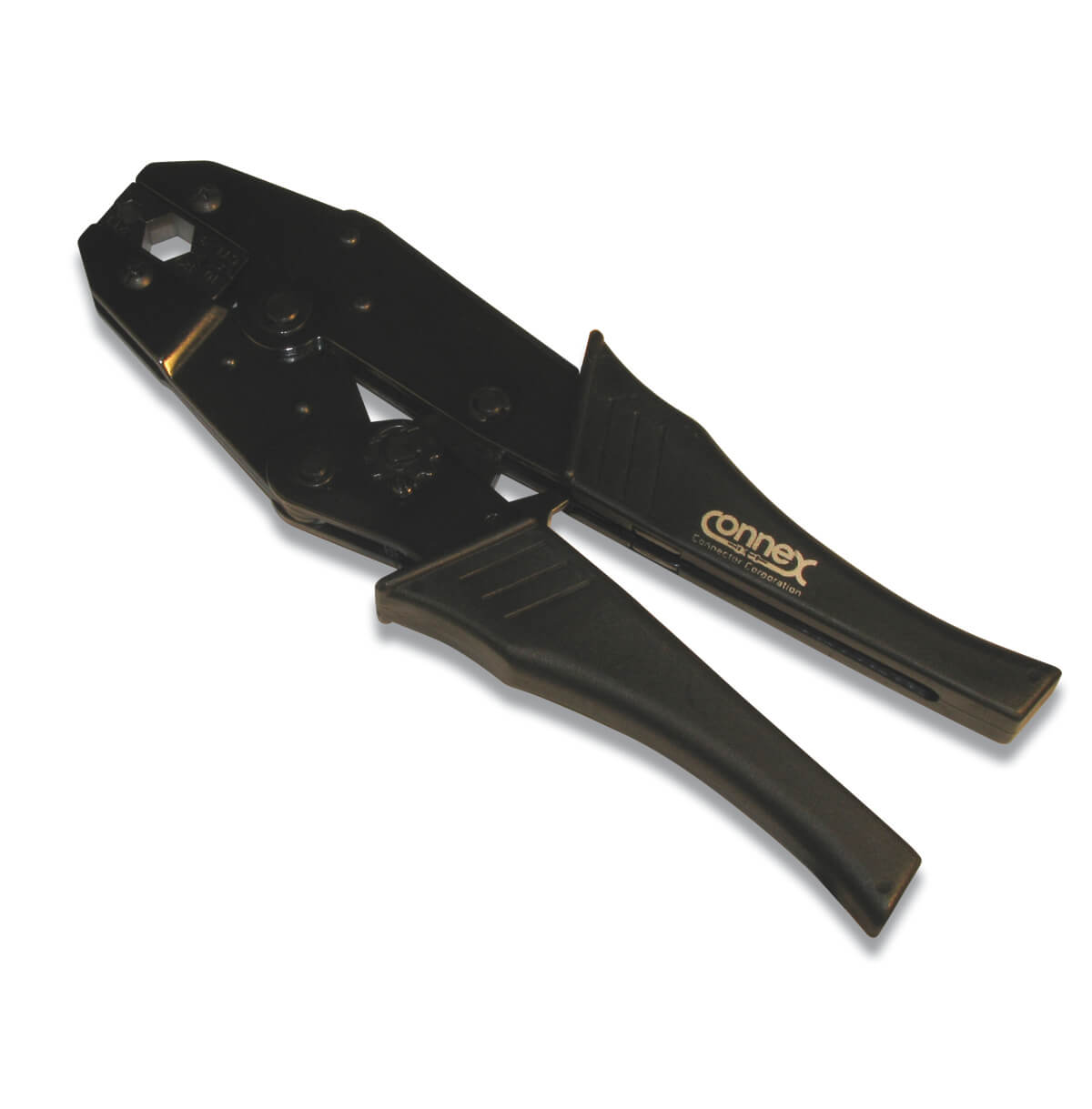

• Dedicated toolsets: Crimp tools with matched die sets simplify RG- and LMR-style cable terminations.

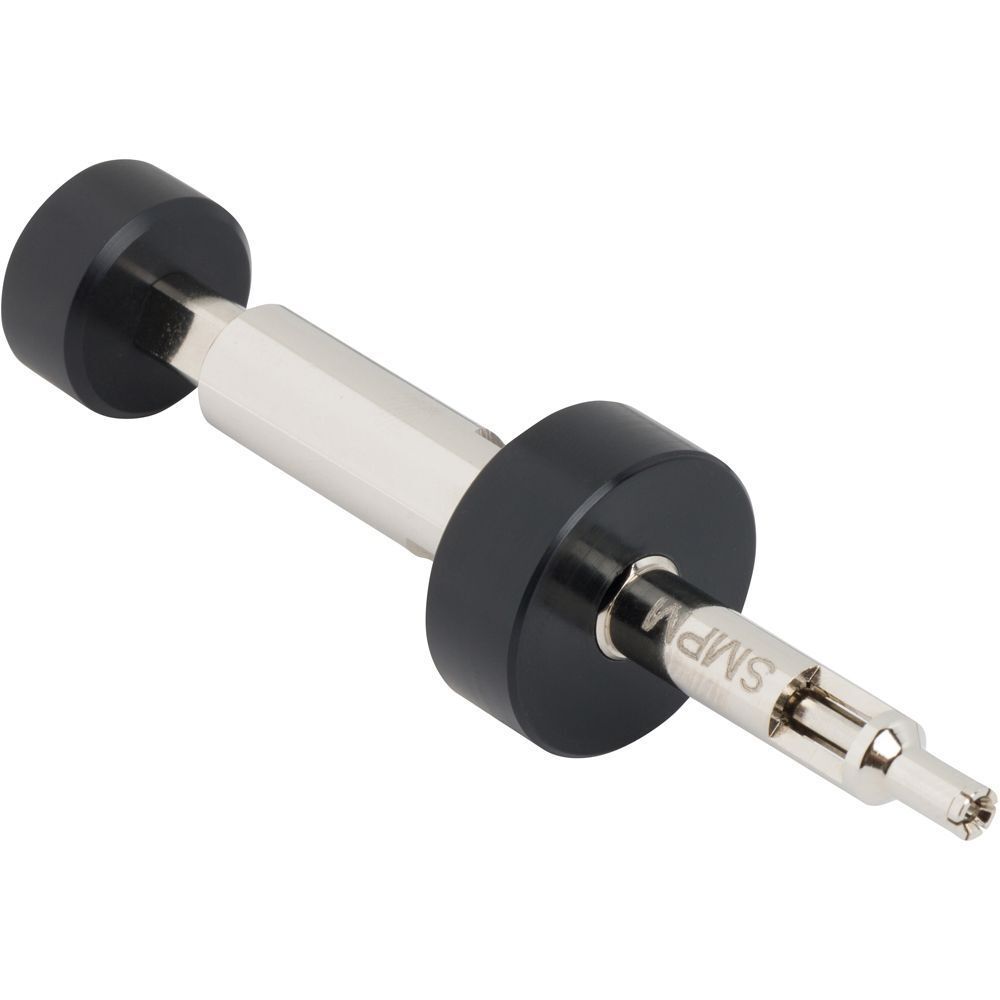

• Micro-coax support: Insertion and extraction tools for AMC, AMMC and AMC4 cable mount connectors.
• Panel-friendly: Spanner nut wrenches for SMA, TNC and other panel-mount connectors—no over-torque needed.
• Durable & ergonomic: Hardened materials and user-friendly grips built for repeated use.
• Precision assurance: Tools calibrated to connector specs maintain impedance and signal performance.

Key Technical Details

• Connector coverage: Compatible with SMA, BNC, TNC, N-Type, HD-BNC, Mini-SMB and micro-coax connector families.
• Cable compatibility: Works with RG-58, RG-174, RG-316, LMR series and various micro-coax types.
• Tool accuracy: Machined die cavities and tips ensure proper crimp dimensions and contact seating.
• Industrial grade: Steel and alloy construction withstand typical lab and field environmental conditions.
• Trademark support: Tools for AMC cable mount connectors support Hirose U.FL®, I‑PEX MHF I® and MHF I LK® interfaces as specified.

Applications

• Terminator assembly lines – Crimp repetitive, high-quality coax assemblies with speed and consistency.
• Laboratory prototyping – Safely insert and extract micro-coax contacts without damaging modules.
• Field maintenance – Secure connectors in densely packed panels using precision spanner wrenches.
• Repair and modification – Tools that support component-level servicing of RF harnesses.
• Micro-coax installations – Reliable installation of next-gen connectors into space-constrained boards.

Browse our RF Tools category to find the right tool for your connector type and usage scenario. If you require specialized tooling for unique connector series or custom cable types, contact our technical support team to explore tailored solutions.

Specifications

* Tool material specifications are suitable for normal lab and field conditions. Cable assemblies must be evaluated per system requirements.
