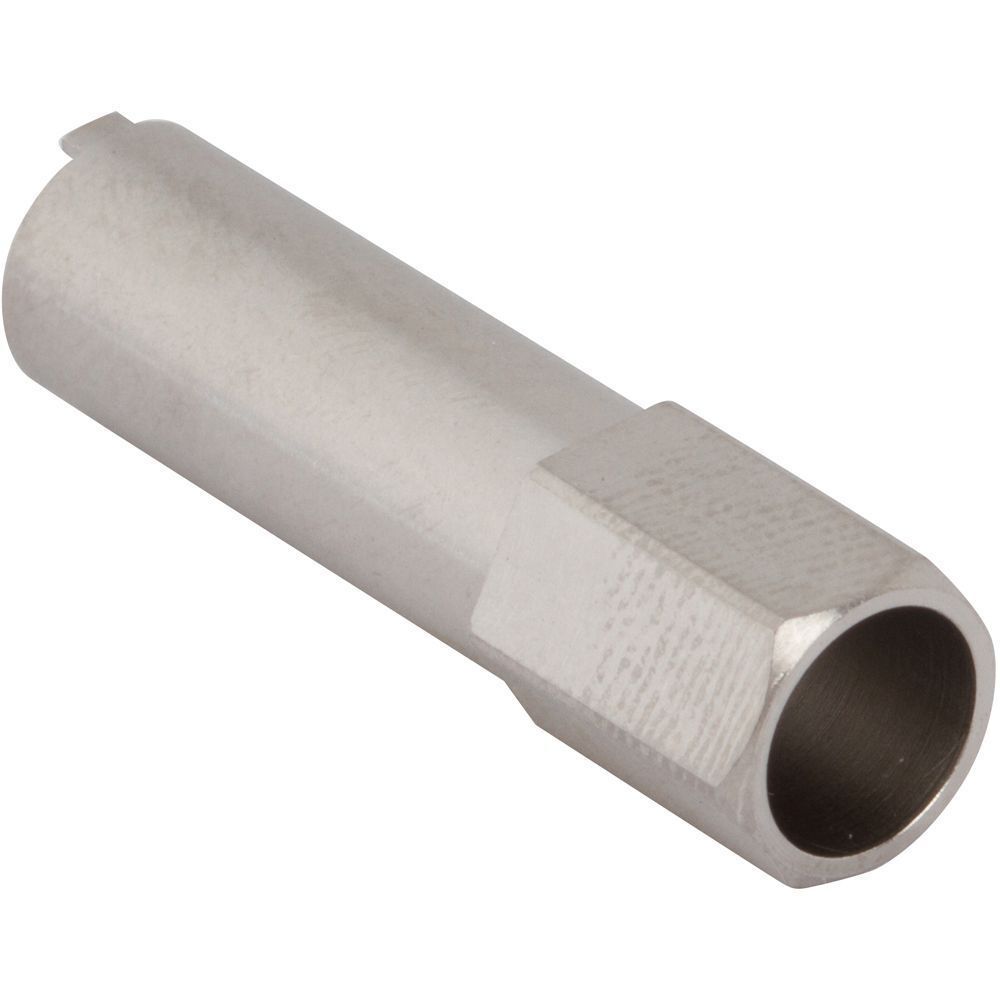

Spanner Nut Adapters

When assembling high-density RF modules or rack-mounted systems, the right mechanical interface matters just as much as the electrical performance. The Spanner Nut Adapters category from Amphenol RF offers purpose-built tools and adapter components designed to interface with connector spanner-nuts—to apply the correct torque, safely tighten or loosen couplings and protect the RF interface from damage during installation or service.

By using a dedicated spanner-nut adapter rather than improvised wrenches or pliers, engineers and technicians can reduce risk of connector distortion, contamination or mis-torque that might degrade RF performance, reduce lifetime of the connection, or invite signal reflection issues.

Features and Benefits

• Purpose-designed adapter surface fits manufacturer-specified spanner-nut geometry, ensuring proper engagement and precise torque application.
• Supports efficient installation or maintenance workflows—mechanical engagement simplifies tightening/loosening of RF connectors in crowded panels or sensitive equipment.
• Helps preserve connector integrity—minimizing mechanical damage to shells or threads that could impact mating performance or cause premature wear.
• Compatible with Amphenol RF’s connector families that use spanner-nut shells (e.g., HD-BNC).
• Enhances quality assurance in production, service or field environments by offering the correct mechanical interface for RF connector coupling rather than ad-hoc tools.

Key Technical Details

• These adapters are classified as mechanical accessories rather than active RF components; their performance depends on matching the correct connector interface and applying proper torque.
• While the tool itself does not carry an impedance or frequency spec, its counterpart connector series (e.g., HD-BNC) have electrical specifications which the mechanical coupling should preserve (e.g., 50 Ω or 75 Ω configurations, coverage to ~6 GHz for HD-BNC).
• Using the correct spanner nut adapter helps ensure the connector mating cycles and torque specifications remain within manufacturer guidelines, preserving rated lifetime.
• Although the adapter is mechanical, it must be constructed of durable materials compatible with the environment—many Amphenol tools are stainless steel or passivated metals.

Applications

• Rack-mounted RF test instrumentation, broadcast panels or telecom systems where RF connectors are densely arranged and proper torque of couplings is critical.
• Field servicing of RF interconnects in wireless base-stations, repeater sites or outdoor enclosures—where using the proper spanner nut adapter reduces risk of connector damage during twist-installation.
• High-volume assembly of RF cable harnesses in production, where consistent mechanical torque is required to ensure repeatable performance and long product life.
• Laboratories developing RF modules or daughter-cards using HD-BNC, N-Type, or other connector series with spanner nut shells and requiring appropriate mechanical tooling to maintain quality.
• Any installation where improper tightening can lead to impedance mismatches, increased VSWR or unreliable mechanical connection—especially in high-density coax architectures.

Browse the full range of Spanner Nut Adapters from Amphenol RF. If you require a custom adapter size, special torque specification, stringent environmental finish or integration with your automated tooling system, contact our engineering team to discuss a tailored solution.
