Amphenol RF is pleased to announce the expansion of our 12G product line with a new BNC jack-to-plug adapter. This coaxial adapter deviates from the standard bayonet coupling mechanism that is common to the standard BNC interface and instead offers push-on mating capabilities. The push-on coupling mechanism allows for quick and easy mating and unmating which is ideal for test and measurement applications in the broadcast space.
The BNC Jack to BNC push-on plug adapter is manufactured with a nickel-plated, brass body, gold-plated phosphor bronze contact and PTFE insulator. This adapter supports traditional broadcast technology along with newer 4K ultra-HD products which require 12 Gbps data transmission rates. The BNC jack end of the adapter features bayonet coupling for reliable and secure mating while the plug end uses the push-on method.
This adapter joins a robust portfolio of 12G capable products including connectors, adapters and cable assemblies that utilize the BNC, HD-BNC and MCX interface. These 12G-SDI RF interconnect meet all SMPTE standards and are available in various 75 ohm configurations.
View All: 12G SDI Product Portfolio
Learn More: Amphenol RF 12G SDI Broadcast Solutions
Related Resources
AMC to BNC adapter adds versatility in ultraminiature application designs
Amphenol RF is pleased to announce the expansion of our ultraminiature product portfolio with a new AMC to BNC adapter. This new option for ultraminiature connectivity allows the secure bayonet coupling mechanism featured on the popular BNC interface to be mounted to the outside of a panel.
12G isolated BNC and HD-BNC extend options for system engineers
Amphenol RF is pleased to introduce isolated connectors and adapters to its already expansive 12G BNC and HD-BNC portfolio.
Pre-configured 50 ohm BNC cable assemblies provide flexible option
Amphenol RF is pleased to announce the expansion of our popular BNC cable assembly series. This series features the high-performance BNC connector designed for a variety of popular flexible, semi-rigid and conformable cables.
Waterproof IP67-rated BNC connectors improve system integrity
Amphenol RF is pleased to introduce additional products to our waterproof IP67 product portfolio. This latest expansion includes three BNC bulkhead jacks designed to accommodate the popular RG-58, RG-142 and LMR-240 cables.
Push forward with new 75 ohm 12 adapter for broadcast video
Amphenol RF is pleased to announce the expansion of our 12G product line with a new BNC jack-to-plug adapter.
New 12G-SDI broadcast products to support plenum cable
Amphenol RF is pleased to introduce an expansion of their 12G-SDI broadcast products.
BNC configurations supporting new cable types suit a variety of needs through improved versatility
Amphenol RF is pleased to announce the expansion of our BNC product portfolio with additional options featuring flexible micro-miniature coaxial cables.

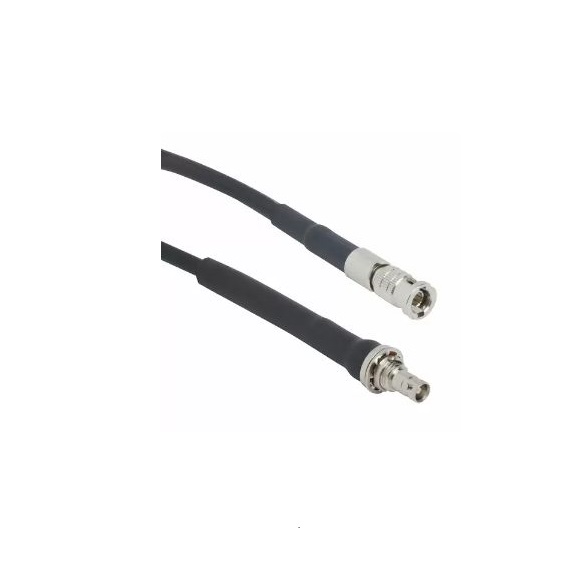

Make panel mount connections direct to broadcast components
