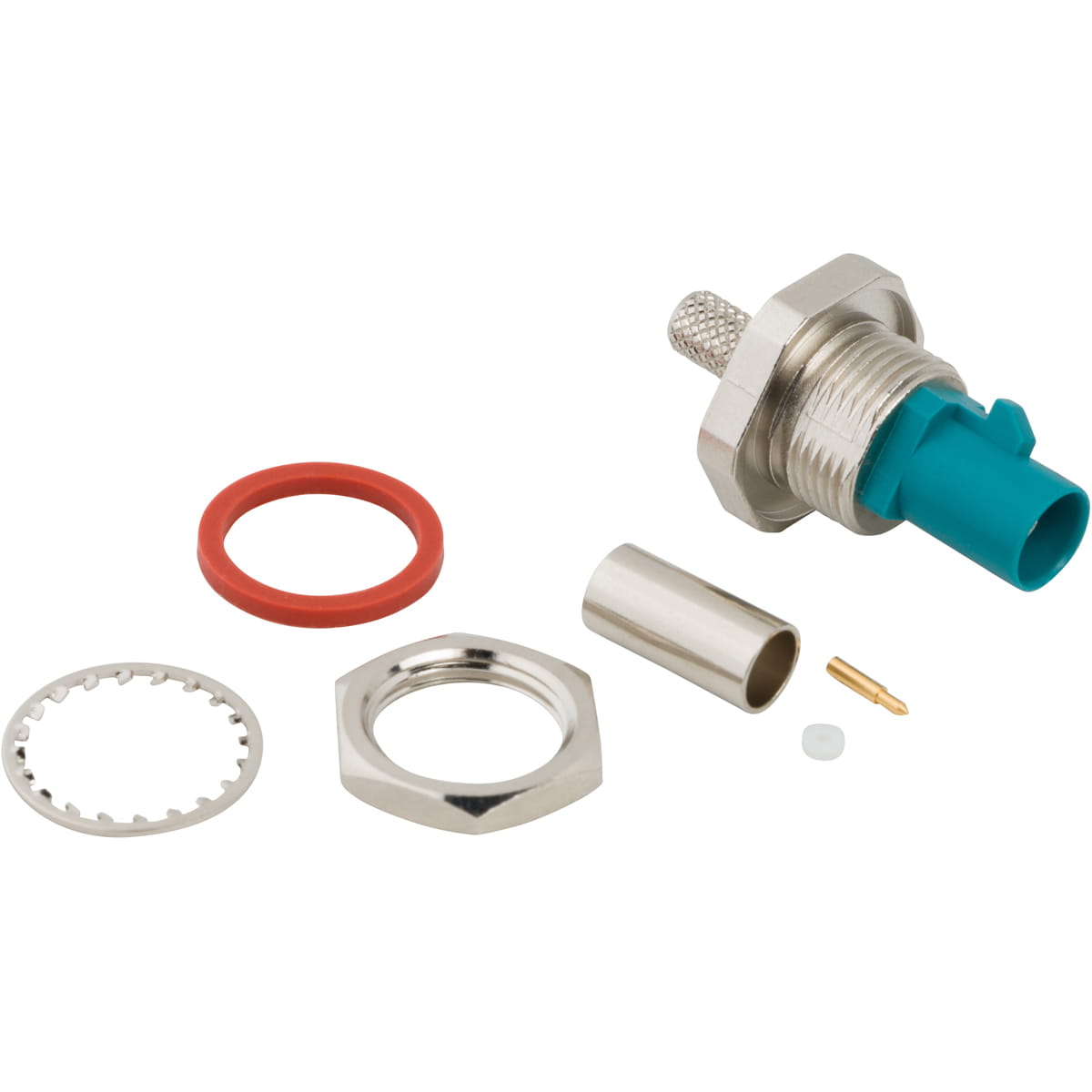

FAKRA Rear Mount Bulkhead Plug for RG-58 and LMR-195
-(1).jpg)
FAKRA Rear Mount Bulkhead Plug for RG-58 and LMR-195
IP67 FAKRA straight crimp rear mount bulkhead plugs are designed to support industry-standard RG-58 and LMR-195 cable types. These FAKRA plugs are color-coded and mechanically keyed for easy installation and are available in a variety of key codes including the universal Z code.They are ideal for applications like satellite
communication, ADAS and machine-to-machine communication.
These rear mount bulkhead plugs allow the connector to mount through a panel or enclosure wall,
providing a stable and secure connection point. These plugs are sealed in both the mated and unmated
condition, ensuring that no contaminants enter and the system remains secure despite external
conditions. A gasket seals the interface internally, while an o-ring seal sits between the flange and panel
mount for additional security. These FAKRA plugs are constructed with a ruggedized, high-performance
plastic housing over a nickel-plated diecast zinc alloy body and flange. They also feature a gold-plated
brass center contact and a nickel-plated copper ferrule.
These 50 ohm FAKRA plugs ensure reliable, high-frequency data transmission up to 6 GHz and standard
straight crimp die sets are used to terminate the connector to the cable.
communication, ADAS and machine-to-machine communication.
These rear mount bulkhead plugs allow the connector to mount through a panel or enclosure wall,
providing a stable and secure connection point. These plugs are sealed in both the mated and unmated
condition, ensuring that no contaminants enter and the system remains secure despite external
conditions. A gasket seals the interface internally, while an o-ring seal sits between the flange and panel
mount for additional security. These FAKRA plugs are constructed with a ruggedized, high-performance
plastic housing over a nickel-plated diecast zinc alloy body and flange. They also feature a gold-plated
brass center contact and a nickel-plated copper ferrule.
These 50 ohm FAKRA plugs ensure reliable, high-frequency data transmission up to 6 GHz and standard
straight crimp die sets are used to terminate the connector to the cable.
Features
• Reliable electrical performance up to 6 GHz• Waterproof IP67 configuration
• Ruggedized construction
• Push-on coupling for quick and easy mating
Applications
• GPS• Satellite Communication
• ADAS
• Machine-to-Machine Communication
• Telematics
• Remote Monitoring
