Amphenol RF expands its HD-BNC connector portfolio with a bulkhead connector supporting multiple micro-coax cable types enabling compact RF designs with no reduction to signal integrity.

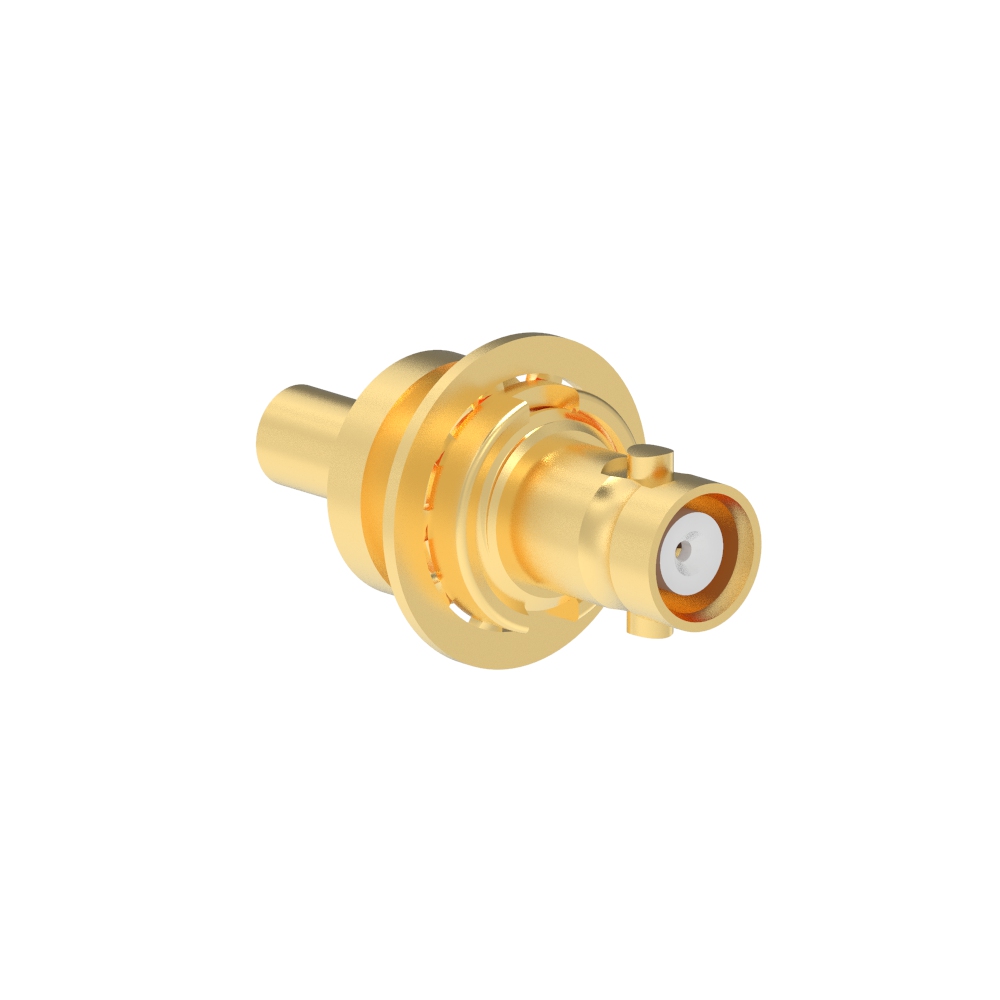

HD-BNC Bulkhead Connector on Micro Cable
HD-BNC bulkhead connectors on micro cable offer a bulkhead mount to securely attach the connector to a panel. The high-density form factor allows customers to attach up to four times as many connectors as a standard BNC on a single panel. The bayonet coupling mechanism provides secure mating while still allowing for simple mating and unmating. These connectors are suited for high-frequency broadcasting and telecommunications applications.
The bulkhead HD-BNC connector features a gold-plated brass body and gold-plated beryllium copper contact with a nut, inner ferrule, bullet contact and sleeve. The gold-plating provides superior corrosion resistance and conductivity, with the connector supporting frequencies of up to 9 GHz. This connector is engineered for a variety of micro-coax cable types including RG-178, 0.81, 1.13 and 1.37 mm cable.
The bulkhead HD-BNC connector features a gold-plated brass body and gold-plated beryllium copper contact with a nut, inner ferrule, bullet contact and sleeve. The gold-plating provides superior corrosion resistance and conductivity, with the connector supporting frequencies of up to 9 GHz. This connector is engineered for a variety of micro-coax cable types including RG-178, 0.81, 1.13 and 1.37 mm cable.
Features
• Performance up to 9 GHz• Attach up to four times as many connectors as standard BNCs
• Dependable corrosion resistance
• Bayonet coupling mechanism
Applications
• Broadcasting• Telecommunications
• Automotive
