MCX Cable Assemblies on RG-174 for Wireless Modules

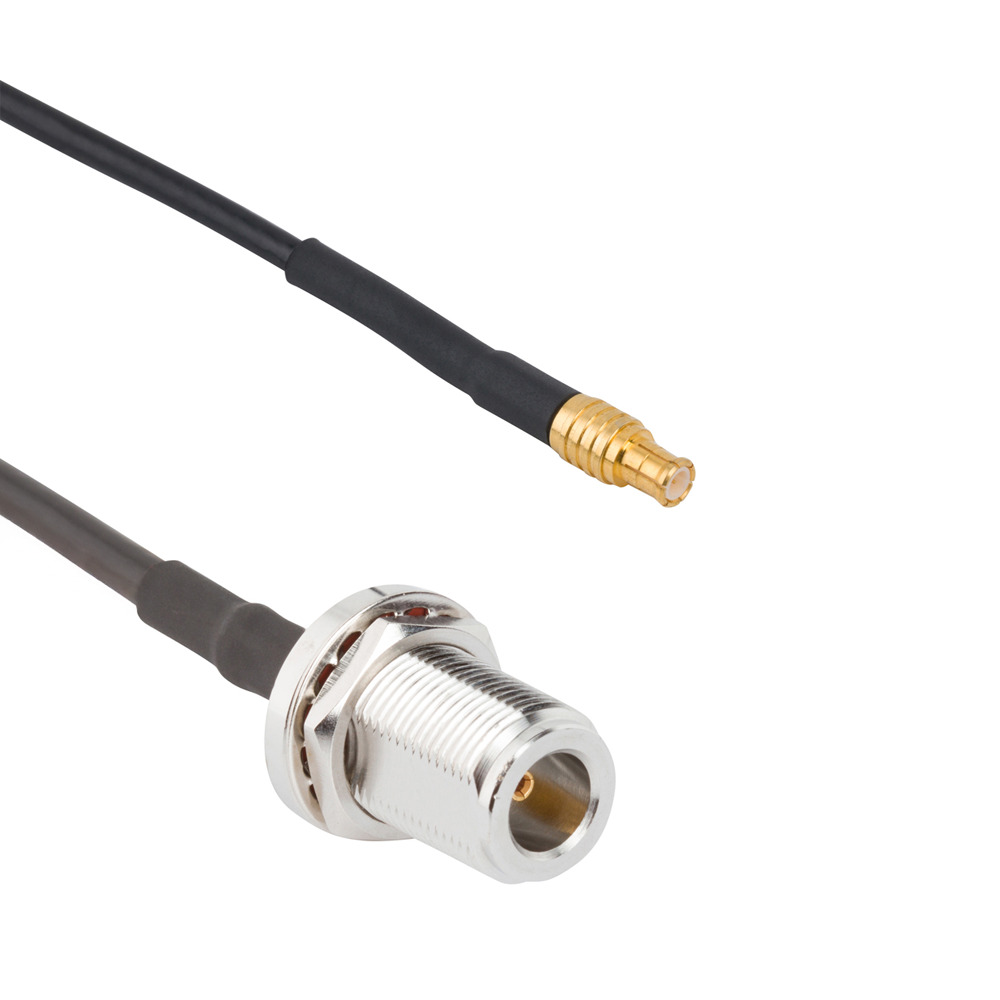

MCX straight and right-angle plug configurations feature rugged IP67 bulkhead SMA, TNC, RP-TNC and N-Type straight jacks. These assemblies are designed on flexible RG-174 cable which provides excellent electrical performance up to 3 GHz and reliable connectivity in short-distance, low frequency RF applications.

These between-series assemblies allow a cable to be connected from outside of a panel where a threaded interface is located. They are specifically designed for wireless communication modules with MCX connectors in the board. The combination of MCX and more robust connectors offers a variety of options for usage. The connectors that are on the outside of the panel are sealed to prevent temporary ingress of water and other fluids. This eliminates the risk of the system being compromised due to external elements.
