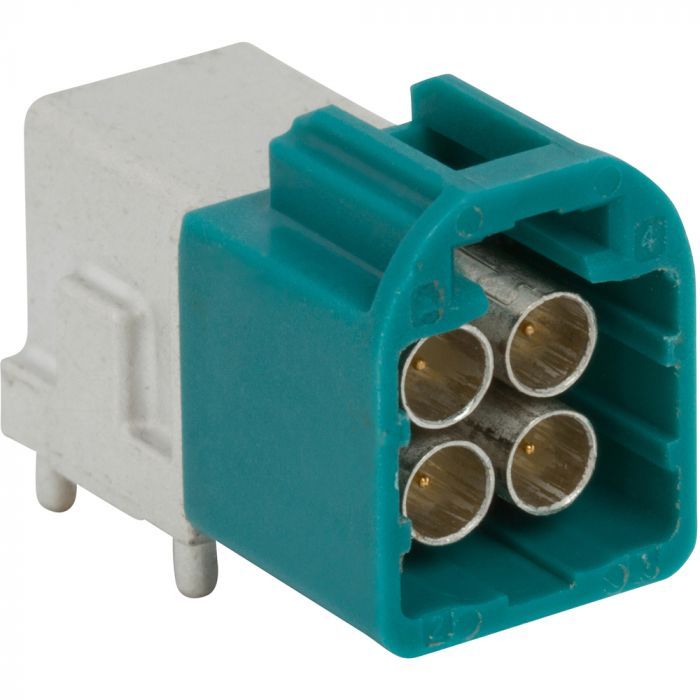

AUTOMATE Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm Z Code
In stock
FM4-NZRP-PCB-1
RF Connector AUTOMATE Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm Z Code
Product Compliance
- RoHS (EU). Compliant with no exemptions - View Certificate
- California residents see Prop 65 Warning
- Additional compliance information is available in our Compliance Center.
RF Connector AUTOMATE Type A Mini-FAKRA Quad Port PCB Through Hole Right Angle Plug 50 Ohm Z Code
Downloads
Product Life Cycle
| Part Status | Active |
|---|
Product Specifications
| Alias | MK0252ABZ00WU5F |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Diecast |
| Cable Type (Terminates to) | Not Applicable |
| Contact Finish | Gold |
| Contact Material | Copper Nickel Alloy |
| Contact Termination | Crimp |
| Coupling Mechanism | Push-on |
| Export Control Classification Number | EAR99 |
| FAKRA Keycode | Z - Water Blue (Universal) |
| Frequency (Max GHz) | 9 |
| Gender | Plug |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | LCP |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Right Angle |
| Panel Mounting Feature | Not Applicable |
| Ports | 4 (Quad Port) |
| Size Category | Subminiature |
| Temp (Max Degrees Celsius) | 105 |
| Temp (Min Degrees Celsius) | 40 |
| Termination Style | PCB - Through Hole |
