UHF Connectors

Originally intended for use as a video connector in radar applications, UHF coaxial connectors are general purpose units developed for use in low frequency systems from 0.6 - 300 MHz. Invented for use in the radio industry in the 1930’s, UHF is an acronym for Ultra High Frequency because at the time 300 MHz was considered high frequency. They can be used when impedance mating is not required.

UHF connectors feature a threaded coupling. UHF connectors are economical and popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.

Features and Benefits
  • Optional reducing adapters accommodate a wide range of popular coaxial cables
  • Solder termination types require no special assembly tools
  • Crimp termination types provide a lower cost installation method
  • Large-size threaded coupling is a rugged design
  • Non-demanding specifications and low cost
  • Antennas
  • Military
  • Distributed Antenna Systems (DAS)
  • Public Address Systems
  • Low-Frequency Applications

UHF Connectors Specifications


Impedance Non-Constant
Frequency Range DC - 300 MHz (DC - 1 GHz on Extended Range Designs)
Voltage Rating 500 Volts RMS Max Continuous
Dielectric Withstanding Voltage 1500 VRMS Max
Insulation Resistance  5000 MΩ Min
Power Handling 500 W @ 100 MHz @ 25ºC


Temperature Range
     Mica-Filled Phenolic Insulators −55°C to +149°C
     PTFE Insulators −65°C to +165°C
     Rexolite and Polystyrene Insulators −55°C to +85°C


Mating Cycles 500 Min
Coupling Mechanism Threaded
Interface Specification Hand Tighten
 Note: These characteristics are typical and may not apply to all connectors.
Connector configurations may affect performance.

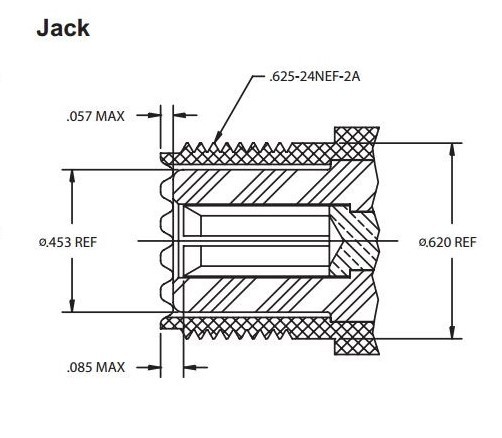

Interface Dimensions
