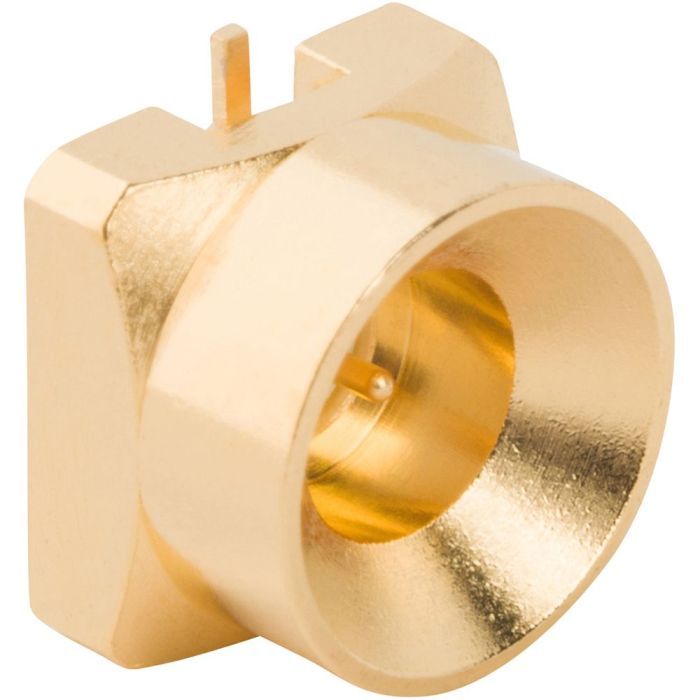

SMP Straight PCB Catchers MItt Jack Surface Mount 50 Ohm
In stock
SMP-MSCM-PCS-12
SMP Straight PCB Catchers MItt Jack Surface Mount 50 Ohm
Product Compliance
- RoHS (EU). Compliant with Exemption 6C - View Certificate
- California residents see Prop 65 Warning
- Additional compliance information is available in our Compliance Center.
RF Connector SMP Straight PCB Catchers MItt Jack Surface Mount 50 Ohm Enhanced 20 GHz Performance
Downloads
Product Life Cycle
| Part Status | Active |
|---|
Product Specifications
| Body Finish | Gold |
|---|---|
| Body Material | Brass |
| Cable Type (Terminates to) | Not Applicable |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Termination | Solder |
| Coupling Mechanism | Push-on |
| Detent Type | Catcher's Mitt |
| Export Control Classification Number | EAR99 |
| Frequency (Max GHz) | 20 |
| Gender | Jack |
| IP Rating | Not Rated |
| Impedance (Ohms) | 50 |
| Insulator Material | LCP |
| Isolated | No |
| Low PIM | No |
| Mil Qualified | Not Mil Qualified |
| Non Magnetic | No |
| Orientation | Straight |
| Panel Mounting Feature | Not Applicable |
| Ports | 1 (Single Port) |
| Size Category | Microminiature |
| Temp (Max Degrees Celsius) | 85 |
| Temp (Min Degrees Celsius) | -40 |
| Termination Style | PCB - Surface Mount |
